Carbon steel – composite steel grating

Compound Steel Grating – Carbon Steel Version

1. Product Overview

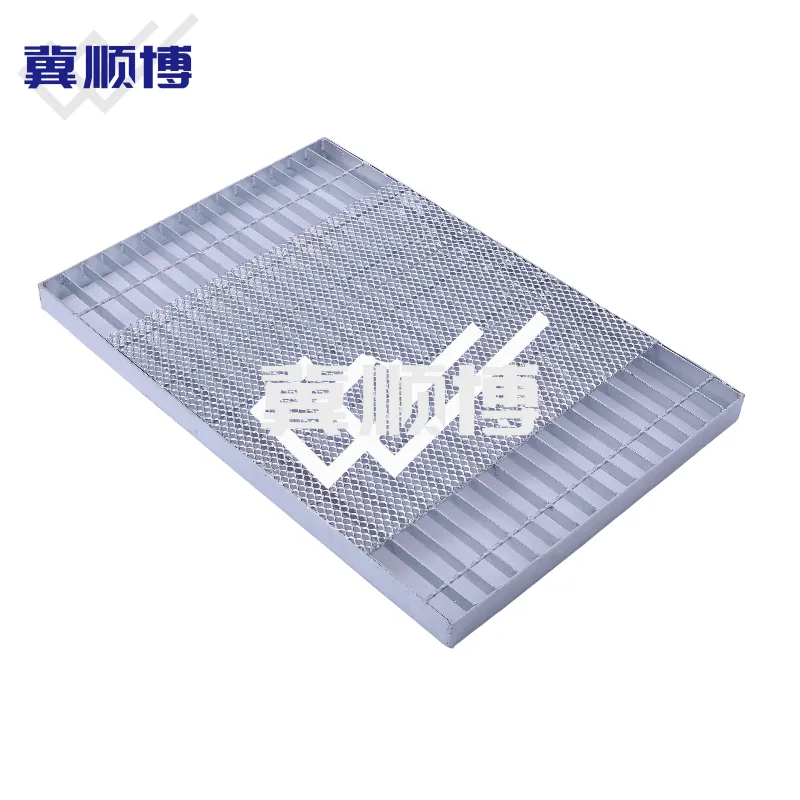

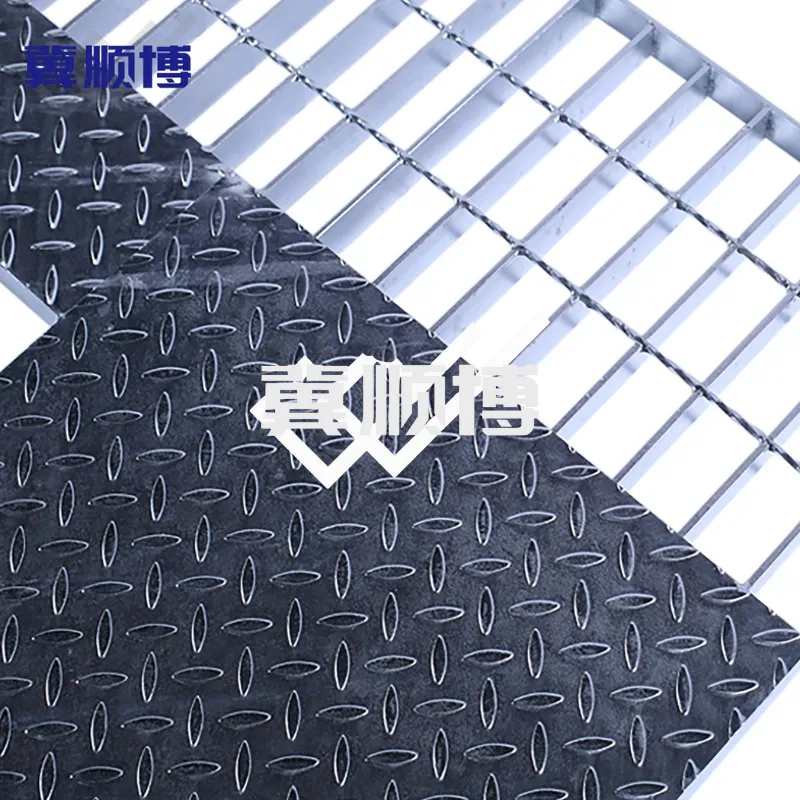

Our Carbon Steel Compound Steel Grating combines the strength of high-quality carbon steel with an innovative composite design. The grating consists of heavy-duty bearing bars and cross bars arranged in a precise grid, overlaid with anti-slip checker plates or perforated plates. This design provides excellent load-bearing capacity while maintaining safety and durability. Ideal for industrial, commercial, and municipal projects, this grating can withstand pedestrian traffic, light-duty vehicles, and even heavy-duty industrial equipment. Its robust construction ensures long-term performance in diverse environments including warehouses, factories, ports, and logistics centers worldwide.

2. Technical Parameters

Category	Parameter	Specification / Industry Range	Engineering Notes
Material	Steel Grade	Carbon Steel: Q235B / ASTM A36 / EN S235JR/q355B	Provides high structural strength suitable for industrial and commercial applications in various climates.
Bearing Bars	Thickness	3 – 12 mm(custom)	Thickness can be customized to handle pedestrian, light, or heavy vehicle loads.
Bearing Bars	Center-to-Center Spacing	15– 100 mm	Optimized for load capacity, ventilation, and drainage. Narrower spacing increases rigidity.
Cross Bars	Type	3 – 6 mm Anti-slip checker plate or welded carbon steel bars	Prevents object fall-through, provides additional safety, and ensures structural integrity.
Dimensions	Width	Custom 300 – 2000 mm	Reduces onsite splicing and speeds installation.
Dimensions	Length	≤6000 mm	Panels can be cut for project-specific layouts, complex shapes, or confined spaces.
Surface Treatment	Process	Hot-dip galvanized, powder coated, or painted	Provides corrosion protection and long service life in indoor, outdoor, or coastal environments. Friction coefficient 0.6 – 0.8.
Load Capacity	Reference Load	Pedestrian, light-duty, and heavy-duty industrial equipment	Compound structure distributes weight efficiently; thicker bearing bars and smaller spacing recommended for high vehicle loads.
Standards	Applicable Codes	ANSI/NAAMM MBG 531, ASTM A36/A36M, ISO 9001	Ensures structural integrity, durability, and corrosion resistance.
Design Recommendations	Customization	Consult engineers for optimal bar size, spacing, and panel configuration	Guarantees safe operation for all intended load types and spans.



Engineering Notes:
Carbon steel compound grating resists mechanical wear and moderate corrosion. Anti-slip surface ensures safety under wet or oily conditions. Proper spacing and thickness allow it to support forklifts, light trucks, and heavy industrial carts while maintaining low deflection. Panels can be customized for complex architectural or industrial layouts.



3. Product Advantages

1. High Strength & Durability:Carbon steel ensures superior load-bearing and fatigue resistance, maintaining structural integrity even under continuous industrial operations. It resists bending, warping, and cracking under repeated heavy vehicle and forklift traffic.
2. Anti-Slip Safety:Checker plate surfaces provide reliable traction, reducing the risk of slips and accidents in wet, oily, or high-traffic areas. The anti-slip texture is optimized for pedestrian safety as well as for vehicle tire grip.
3. Protective Design:The composite structure prevents small objects or debris from falling through, protecting lower-level equipment and preventing hazards. Ideal for warehouses, industrial access platforms, and logistics floors, this feature minimizes operational interruptions and safety risks.

4. Applications & Engineering Scenarios

1.Industrial Platforms & Mezzanine Floors: Supports workers, equipment, and trolleys in factories and manufacturing environments, providing a secure and stable walking surface.



2.Warehouse Loading Platforms: Designed for high-traffic areas where forklifts, pallet trucks, and small vehicles operate, ensuring safe material handling without compromising structural stability.

3.Equipment Maintenance Walkways: Offers safe and durable access to machinery, HVAC, and electrical systems for maintenance personnel, reducing downtime and risk of injury.

4.Factory Access Roads & Loading Bays: Withstands repeated heavy vehicle and light truck loads, ensuring longevity under demanding operational conditions while maintaining minimal deflection.

5.Logistics Centers & Ports: Ideal for distribution hubs, container yards, and coastal facilities where combined pedestrian and vehicle traffic occurs, providing a strong, anti-slip surface even under wet or harsh environmental conditions.

5. Quality Control & Performance

1.Material Verification: Full traceability for steel grade, chemical composition, and mechanical properties to ensure each panel meets industrial standards.

2.Load Testing & Deflection Checks: Panels are rigorously tested for uniform and concentrated load performance, including heavy-duty vehicle simulations, ensuring reliability in high-demand environments.

3.Dimensional Inspection: Ensures accurate bearing bar spacing, cross bar alignment, and panel flatness to facilitate efficient installation and consistent performance.

4.Corrosion Protection Verification: For galvanized or coated surfaces, thickness and adhesion are tested to confirm compliance with long-term durability requirements in various climates and coastal conditions.

5.Operational Reliability: Panels are inspected for welding quality and structural integrity, guaranteeing that each piece performs reliably under continuous industrial or commercial use.

6. Factory Customization & Engineering Services

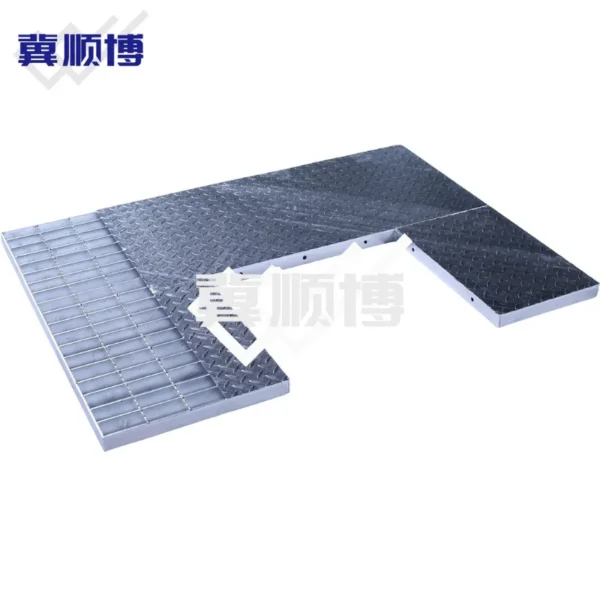

1.Custom Panel Sizes & Shapes: Tailored to fit unique project layouts, including irregular floor plans or confined industrial spaces.

2.Adjustable Bearing Bars & Spacing: Configured according to expected load, span, and environmental factors, ensuring safety and minimizing deflection.

3.Surface Finishes: Options include hot-dip galvanizing, powder coating, painting, or anti-slip checker plates, customized for indoor, outdoor, or coastal exposure.

4.Specialized Design Services: Engineering consultation for installation strategies, complex cutouts, bending, or integration with other structural components.

5.Project-Specific Recommendations: Guidance provided for vehicle load, pedestrian traffic, and environmental exposure, ensuring optimal performance for each site.





7. FAQ

1.What is the load capacity of carbon steel compound grating in a European industrial warehouse?
Depending on thickness and spacing, panels can safely support pedestrians, forklifts, and light trucks typical in European warehouses.

2.Can this grating be used in coastal regions or ports?
Yes, hot-dip galvanizing ensures long-term corrosion resistance in saltwater and humid environments, suitable for ports worldwide.

3.What is the maximum panel size available for global logistics centers?
Standard widths up to 3000 mm and lengths up to 6000 mm, customizable to fit regional project specifications.

4.Is customization available for different climate zones like North America or Southeast Asia?
Absolutely, we adjust steel grade, coating, and bearing bar configuration to match local weather, load, and environmental conditions.

5.How quickly can panels be delivered to international clients?
Delivery times vary with order size, but logistics support ensures panels reach industrial or municipal sites worldwide efficiently.



In summary, Carbon Steel Compound Grating excels in demanding industrial and logistics environments, combining exceptional strength, anti-slip safety, and debris protection. Ideal for warehouses, factories, ports, mezzanines, and loading platforms, its durable, customizable construction ensures reliable performance, reduced maintenance, and enhanced workplace safety under heavy traffic and harsh conditions worldwide. (
