Carbon steel – galvanized steel grating

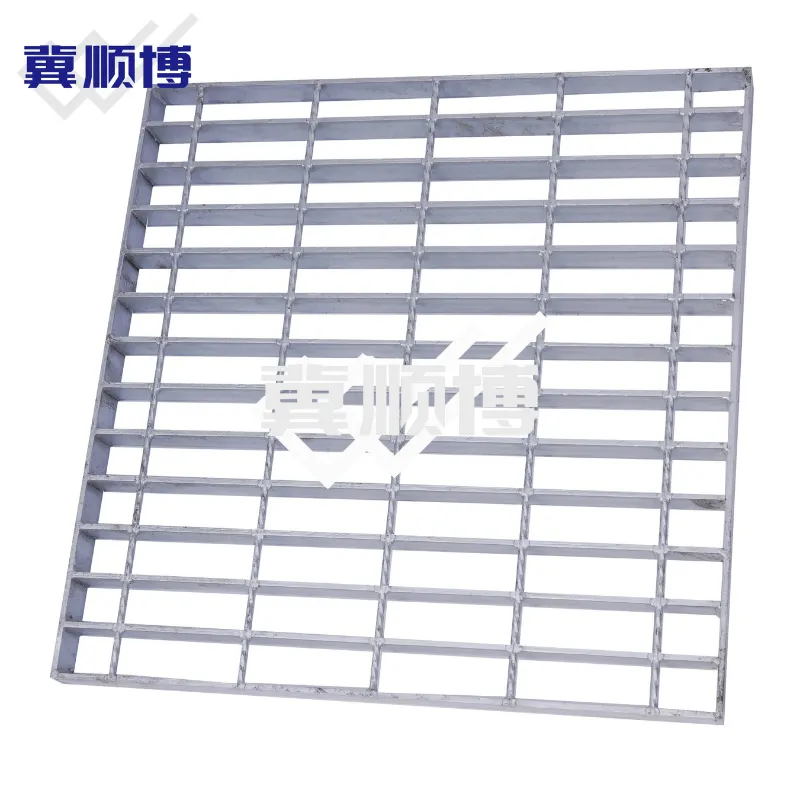

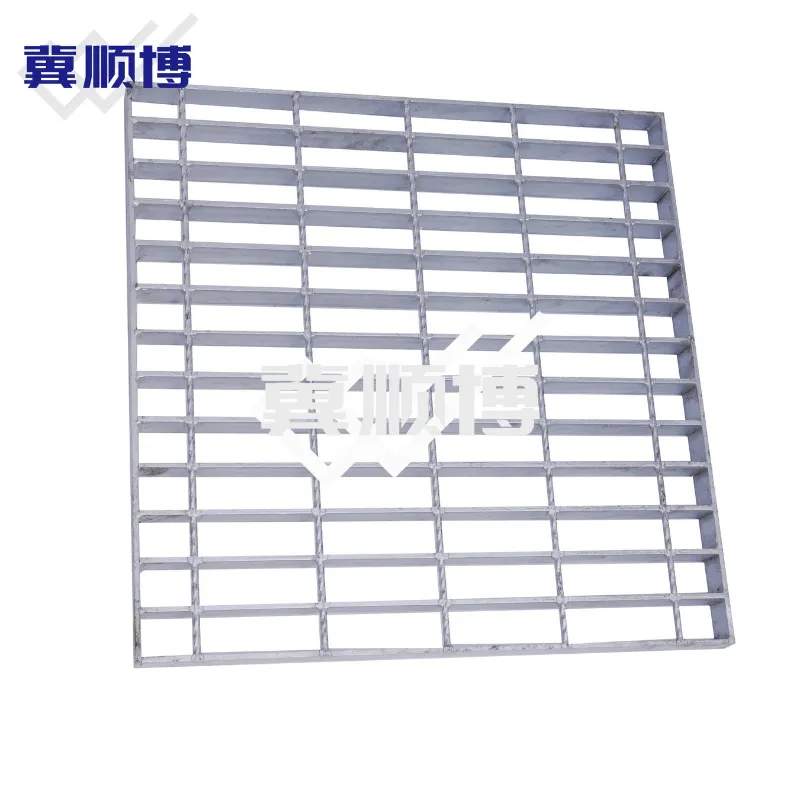

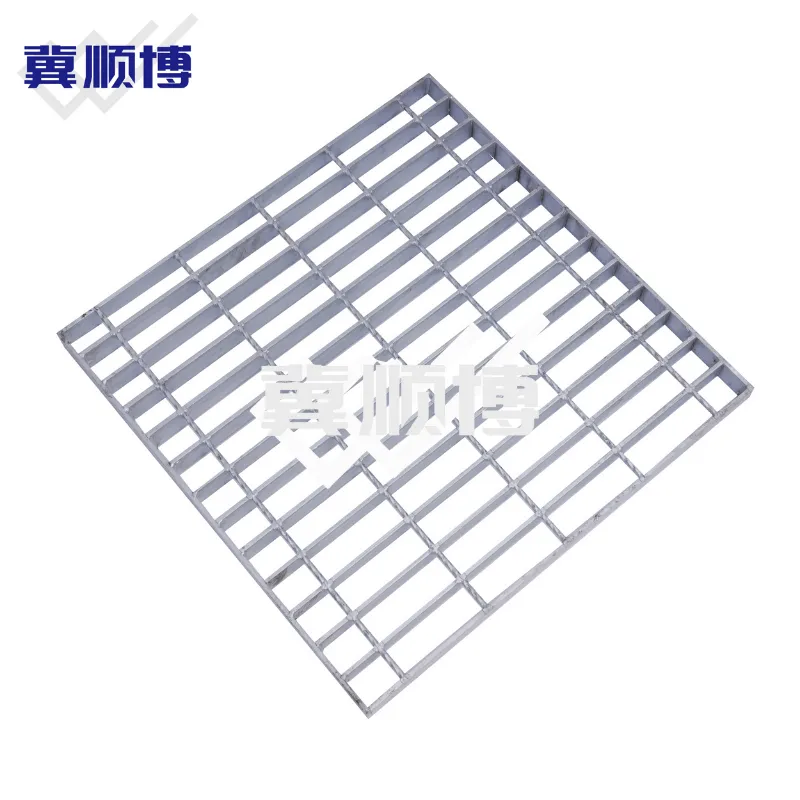

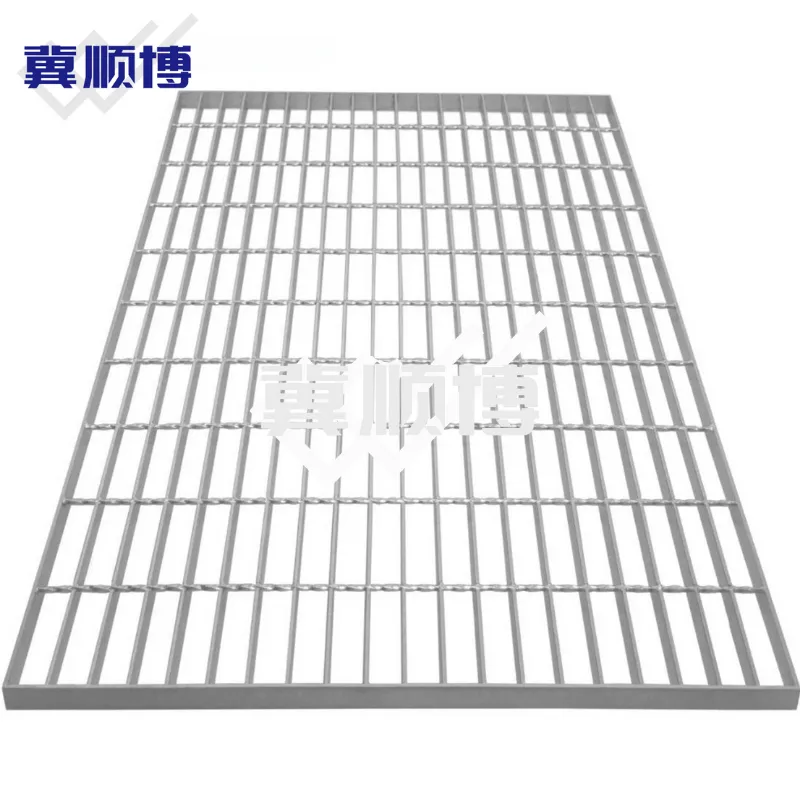

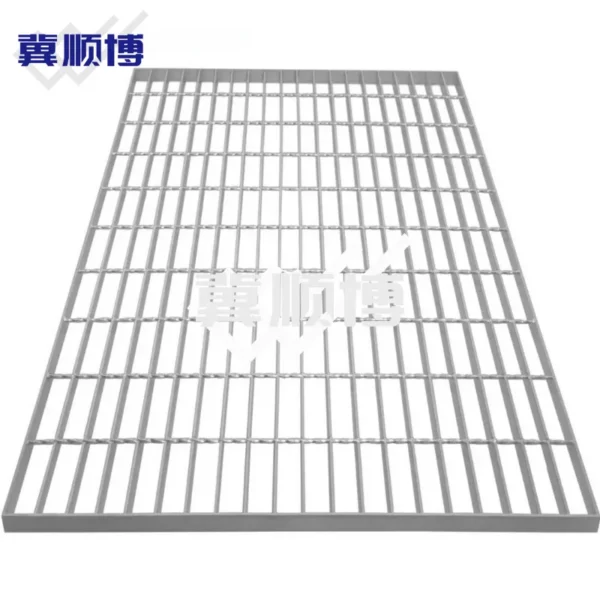

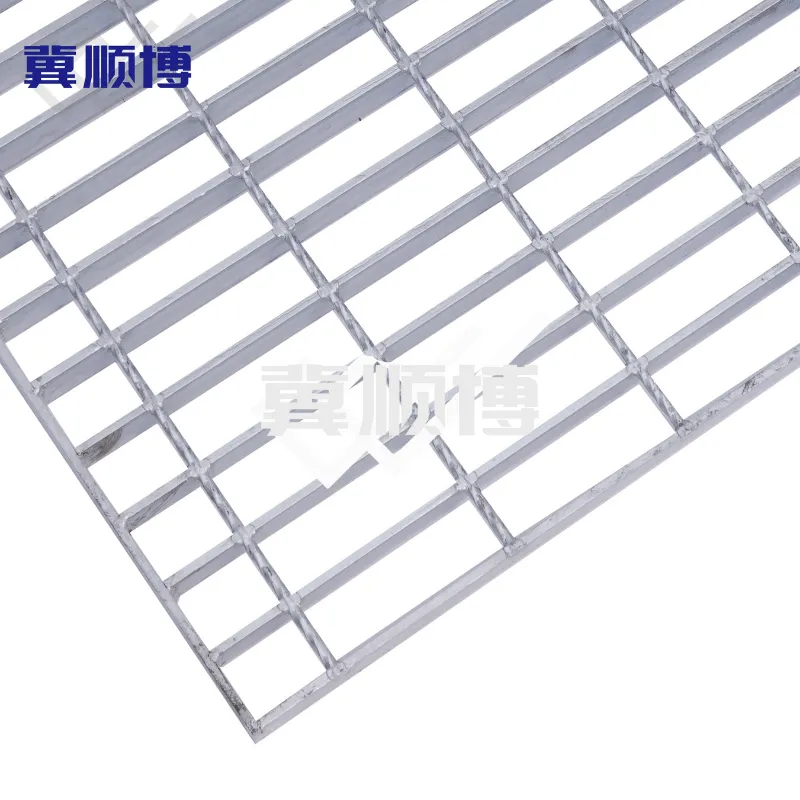

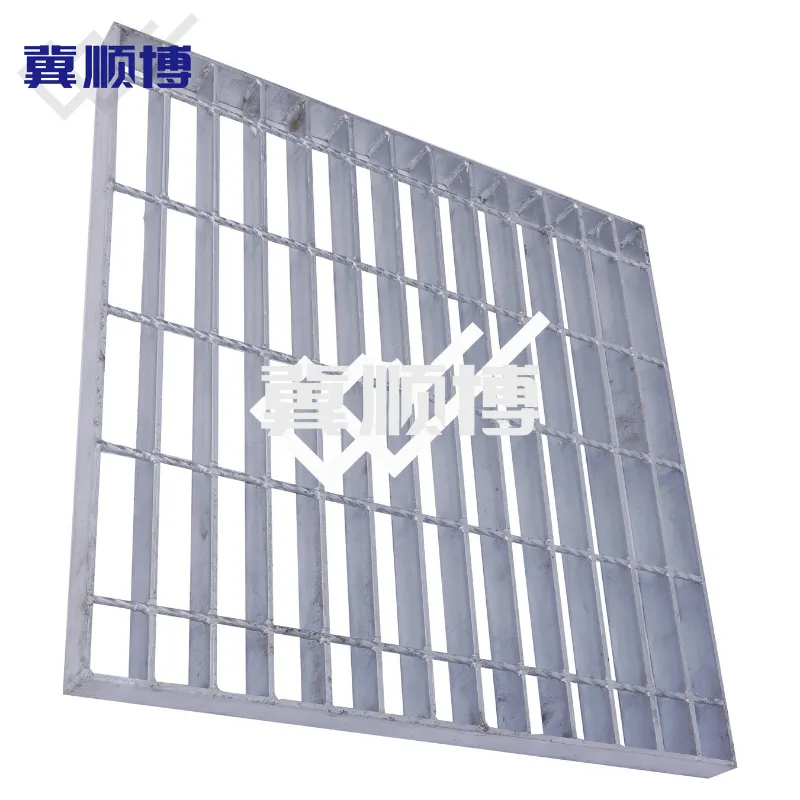

Galvanized Steel Bar Grating

1. Product Overview

Our galvanized steel bar grating is a tailored industrial flooring solution designed specifically for your project’s unique requirements. Whether your site involves standard rectangular platforms or complex layouts with intricate piping penetrations, we provide both Forge-Welded (for high-volume standardized runs) and Manual Welded (for bespoke shapes and heavy-duty profiles) options. Manufactured from premium carbon steel and finished with Hot-Dip Galvanizing (HDG) or Electro-Galvanizing (Cold), our grating is more than just material—it is a “Ready-to-Install” experience. Every panel is precision-cut and numbered according to your CAD drawings, making on-site assembly as simple as a jigsaw puzzle.

2. Technical Parameters (Comprehensive Industry Standards)



Category	Item	Specifications & Range (Fully Customizable)	Technical Notes
Material	Steel Grade	ASTM A36, Q235B, Q355B, S275JR, S355JR	Q355B/S355 is preferred for high-span load requirements.
Bearing Bar (H)	Bar Depth	20mm – 150mm (3/4″ to 6″)	Common: 25, 30, 32, 38, 40, 44, 50, 65, 75mm.
Bearing Bar (T)	Bar Thickness	2mm, 3mm, 4.75mm, 5mm, 6mm, 8mm, 10mm（or custom）	5mm (3/16″) is the global standard for industrial safety.
Cross Bar	Lateral Support	Twisted Square Rod (5-8mm), Round Bar, Flat Bar	Twisted rods increase slip resistance and weld fusion.
Mesh Pitch	Center-to-Center	30×100, 30×50, 33×33, 40×100, 15x100mm（or custom）	19-W-4 (30×100) is the most popular industrial grid.
Surface	Profile Type	Plain (Smooth), Serrated (S), I-Bar	Serrated (S) provides R12/R13 anti-slip ratings.
Fabrication	Welding Method	Forge-Welded (Automated) / Manual Welded	Manual welding is used for irregular shapes or bars >6mm.
Finish	Coating Type	Hot-Dip Galvanized / Electro-Galvanized / Painted	HDG thickness ≥ 30μm per ISO 1461/ASTM A123.
Banding	Edge Finish	Flat Banding, Toe-board (Kick-plate), Load Banding	Kick-plates are mandatory for safety around cut-outs.



Engineering Notes:

1.Standards Compliance: Manufactured to meet ANSI/NAAMM (MBG 531) and BS 4592 industrial specifications, ensuring consistent load-bearing performance across all panels.

2.Structural Fusion: Utilizing both automated Forge-Welding and Manual CO2 Welding to ensure full penetration at every joint, providing a rigid structure that resists twisting and impact.

3.Corrosion Defense: All units are Hot-Dip Galvanized after fabrication per ASTM A123 / ISO 1461. This post-fabrication dipping ensures that all weld points and cut edges are fully sealed against rust.

4.Load Alignment: Designed for maximum safety, panels must be installed with bearing bars spanning between supports. We optimize the bar depth and pitch based on your specific span requirements to prevent sagging.

3. Product Advantages

1.Full-Scale Deep Customization: We manufacture based on your field measurements or CAD drawings. Whether you need circular, fan-shaped, or complex notched panels, our manual welding team ensures a precision fit, eliminating the need for hazardous on-site cutting.

2.Superior Anti-Corrosion Performance: Choose between Hot-Dip Galvanizing (HDG) for a metallurgical bond that lasts 30+ years in harsh outdoor environments, or Electro-Galvanizing (Cold) for a bright, smooth finish ideal for indoor or decorative use at a lower cost.

3.Dual Welding Technologies: Our automated forge-welding ensures consistency for large platforms, while our expert manual welding handles heavy-gauge bars (>6mm) and irregular shapes with deep weld penetration for maximum structural integrity.

4.Slip Resistance & Structural Stability: The fusion of twisted cross rods and bearing bars provides a rigid, non-slip surface. For high-risk areas, our serrated bars offer ultimate traction even in oily or icy conditions.

4. Applications & Engineering Scenarios

1.Oil, Gas & Power Platforms: Precision-cut panels designed to clear complex piping and valves, featuring factory-welded kick-plates for safety.

2.Trench & Drainage Systems: Heavy-duty grates for parking lots, loading docks, and roadways, customized to handle specific vehicular axle loads.

3.Industrial Stair Treads: Equipped with specialized end-plates and anti-slip nosing (yellow or checkered plate) for high-visibility safety.

4.Logistics & Automated Mezzanines: High-flatness forge-welded grating for warehouse floors, ensuring smooth operation for AGVs and forklifts.

5.Irregular Architectural Platforms: Custom fan-shaped or circular grilles designed to fit around trees, columns, or machinery in modern industrial parks.





5. Quality Control

Drawing Alignment Audit: Our QC team performs a 1:1 comparison between the finished panels and the pre-production CAD layout to verify every notch and dimension.

Galvanizing Finish Inspection: 100% visual check to ensure no zinc dross, uncoated spots, or sharp burrs, maintaining a smooth and safe handling surface.

Weld Penetration Verification: Systematic checks of weld fusion, especially for manual welds on heavy-duty bars, ensuring panels never de-weld under vibration.

Final ID Coding Check: Verification of the unique identification numbers stamped or tagged on each panel to ensure a perfect match with the shipping manifest and layout map.

6. Customization & Engineering Services

CAD Layout & Panel ID System: Before production, we perform a CAD secondary layout design based on your project drawings. Every individual panel is assigned a unique ID number (e.g., A-01, B-02).

“Plug-and-Play” Installation: We provide a detailed Layout Map with your shipment. Installation crews simply match the ID tags on the panels to the map, reducing installation time by over 50%.

Cut-outs & Safety Kick-plates: We perform all necessary penetrations in-house. At these openings, we weld 100mm-150mm Kick-plates (Toe-boards). This reinforces the cut-out and prevents tools from falling, meeting strict onsite safety codes.

One-Stop Accessories: We provide all necessary Installation Clips (Saddle Clips, G-Clips) to ensure the final step of fastening is hassle-free.

7. FAQ

Q: Why should I choose factory-cut openings and kick-plates over site-cutting?

A: Site-cutting destroys the galvanized protection and leaves raw steel exposed to rust. Our factory-cut and welded kick-plates are galvanized after fabrication, ensuring 100% protection and superior structural safety.

Q: How does your CAD numbering system prevent installation errors?

A: We provide a clear map showing exactly where each numbered panel goes. Your crew doesn’t need to measure or guess—they just place the panel with the matching ID, ensuring a perfect fit every time.

Q: Hot-Dip vs. Electro-Galvanizing: Which one do I need?

A: For outdoor, coastal, or chemical environments, Hot-Dip is mandatory for its 30-year lifespan. For indoor decorative use or dry warehouses, Electro-Galvanizing offers a shinier finish and lower initial cost.

Q: Is manual welding as strong as automated forge-welding?

A: Yes, and often stronger for heavy-duty applications. Our manual welding allows for deeper penetration on thick bars (8mm-10mm) and provides the flexibility needed for the complex banding of irregular panels.

In summary, Galvanized Steel Bar Grating combines exceptional customization, dual welding technologies, and robust anti-corrosion performance to deliver safe, durable flooring for oil & gas platforms, industrial mezzanines, stair treads, trenches, and complex architectural layouts. Factory precision, unique panel ID systems, and complete accessories ensure rapid, error-free installation and long-term reliability in demanding environments worldwide.
