Carbon steel – heavy-duty steel grating

1.Product Overview

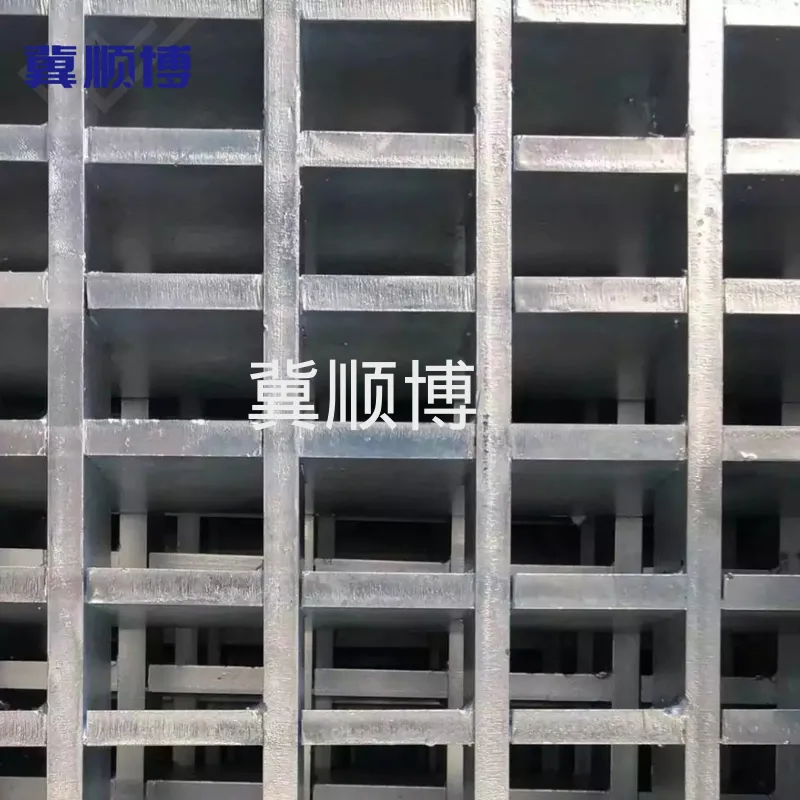

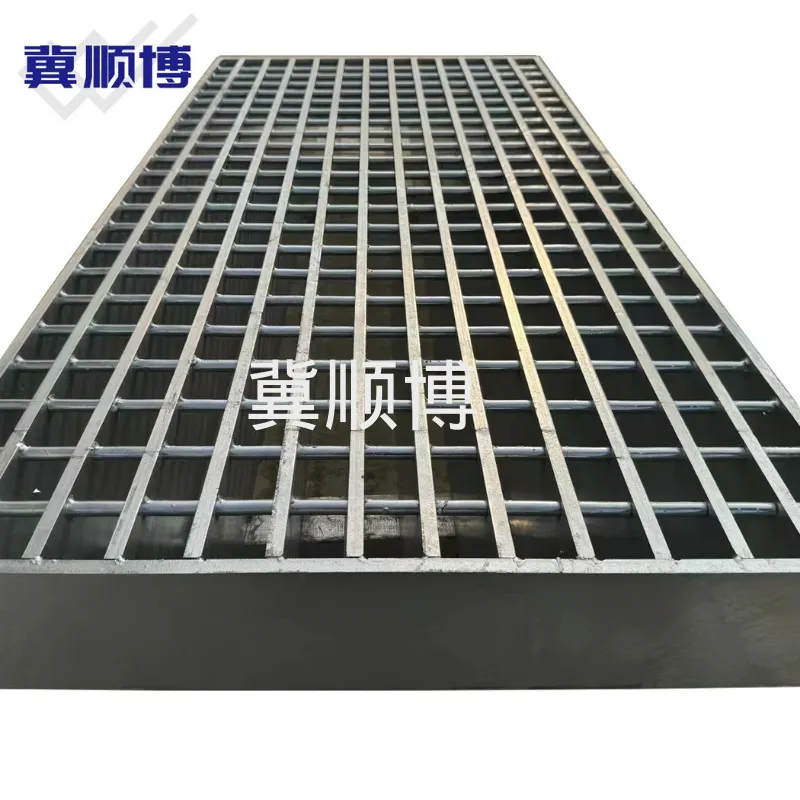

Heavy-Duty Carbon Steel Grating is engineered for industrial, municipal, and transportation projects where standard grating cannot meet structural requirements. Using high-strength carbon and low-alloy steels (ASTM A36 / A572 / Q235B / S275JR), the grating supports extreme static and dynamic loads, including H-20/H-25 trucks, heavy forklifts, and aircraft wheel loads. The panels are fabricated via resistance welding or manual welding to ensure maximum joint integrity. Applications include industrial floors, airport tarmacs, heavy-duty logistics zones, and public infrastructure requiring long-term reliability.

2.technical Parameters

Engineering Notes

• Designed for factory floors, loading docks, warehouse platforms, and vehicle lanes.
• Bearing bar and cross bar spacing are engineering references; fabrication follows project-approved drawings.
• Surface treatments are selected based on environmental exposure (outdoor, wet, or abrasive areas).
• Panels can be cut, notched, or banded for stair treads, maintenance trenches, or machinery access.
• Specifications can be adjusted according to vehicle or forklift load requirements.

3️⃣ Product Advantages

• Extreme Load Performance:High-strength carbon steel ensures panels withstand heavy forklifts, H-20/H-25 trucks, and aircraft loads.
• Fatigue Resistance: Deep-section bearing bars and full-penetration welding prevent deformation and joint failure under repeated dynamic loads.

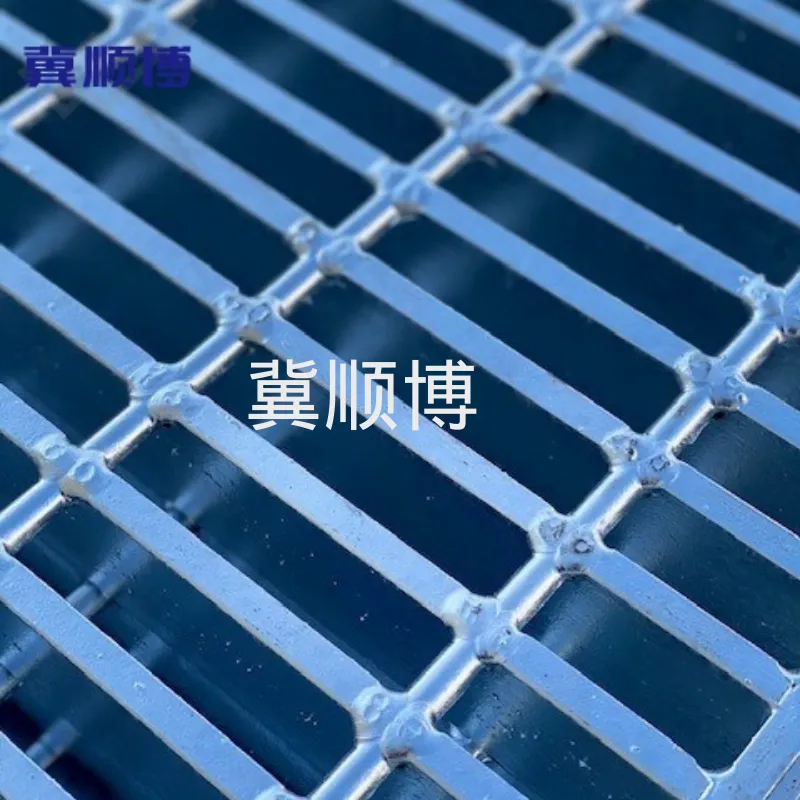

• Slip-Resistant Options:Serrated bearing bars enhance safety in wet, oily, or icy industrial environments.
• Corrosion Protection & Longevity:Hot-dip galvanizing, powder coating, or paint ensures long-term performance in outdoor or chemical-exposed areas.
• Custom Engineering Flexibility:Panels can be cut, notched, or shaped for stair treads, trench covers, mezzanine floors, and specialized industrial layouts.
• Reduced Structural Weight: Using high-strength alloys reduces dead load on supporting structures while maintaining design load performance.
• Wide Industry Suitability:Logistics hubs, ports, airports, mining sites, bridges, and municipal infrastructure.

4️⃣ Applications & Engineering Scenarios

• Logistics & Ports:Loading docks, container yards, and reach-stacker platforms requiring high-load support and corrosion resistance.
• Aviation Infrastructure:Hangar drainage pits, tarmac maintenance areas, and service ramps for aircraft and equipment.
• Mining & Metallurgical Plants: Heavy equipment platforms, crusher walkways, and industrial pits exposed to debris and vibration.
• Municipal Works & Bridges: Trench covers, highway expansion joints, bridge decking, and pedestrian-industrial shared areas.
• Industrial Facilities:Factory floors, heavy machinery zones, and mezzanine flooring where load-bearing and safety are critical.

5️⃣ Quality Control & Performance

• Load Verification:Panels tested for deflection and load-bearing capacity per H-20/H-25 and project-specific criteria.
• Material Traceability:Full Material Test Reports (MTR) for steel chemistry and mechanical properties.
• Dimensional Accuracy:Compliance with ANSI/NAAMM MBG531/MBG532 ensures flatness, squareness, and proper installation fit.
• Weld Integrity: Visual and destructive testing ensures full fusion and penetration at every joint.
• Surface Protection Verification:Galvanizing thickness, paint adhesion, and powder coating quality checked per ASTM A123 / ISO 1461.

6️⃣ Factory Customization & Engineering Services

• Design Optimization: Expert consultation for bearing bar thickness, spacing, and cross bar configuration according to traffic type and load.

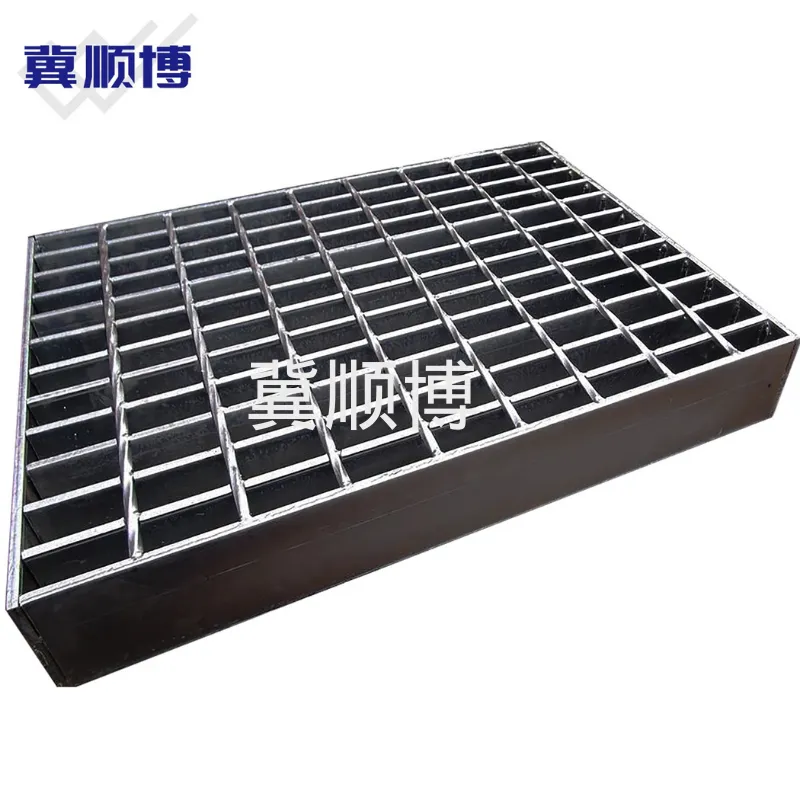

• Reinforced Edge Banding:Standard or heavy-duty channel steel banding for lateral rigidity.
• Custom Cutting & Notching:Panels tailored for stair treads, service trenches, pipes, and structural integration.
• CAD & 3D Shop Drawings: Detailed installation layouts for precise on-site fitment.

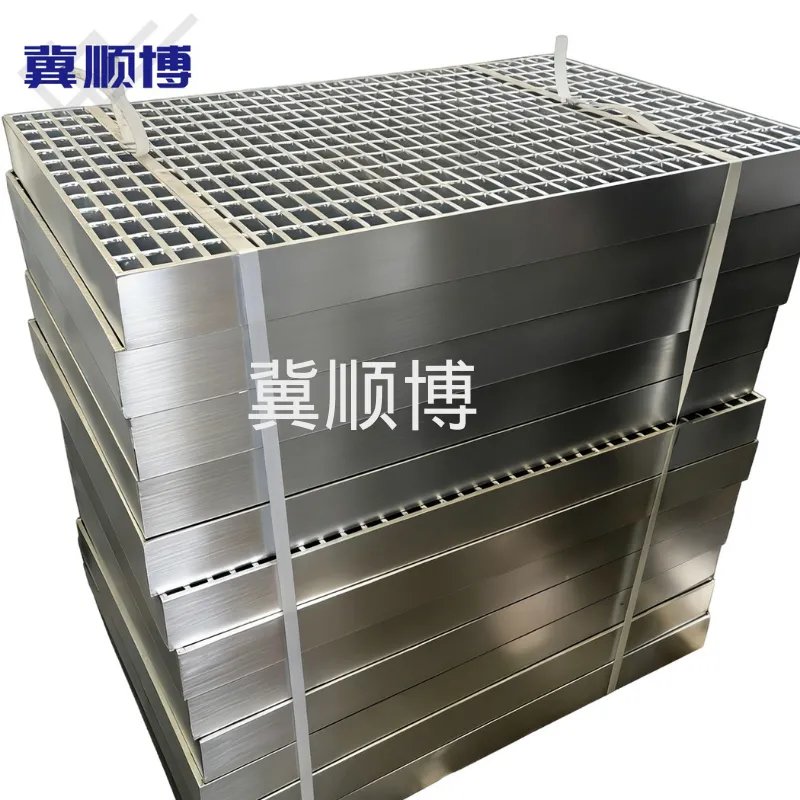

• Rapid Delivery & Pre-Fabrication:Panels numbered, cut, and ready for drop-in installation, reducing on-site labor.

7️⃣ Technical Notes

• Heavy-duty grating must accommodate concentrated and uniform loads from forklifts, trucks, and aircraft equipment.
• Bar depth, thickness, and spacing are designed according to span, load tables, and project requirements.
• Serrated surfaces recommended for high-slip-risk zones; open mesh optimized for drainage and debris clearance.
• Panels can include cut-outs, notches, or edge banding for piping, staircases, or heavy machinery access.

8️⃣ Frequently Asked Questions (FAQ)

Q: Can you provide load tables for H-25 trucks or forklifts?
A: Yes. Verified load charts are provided based on clear span and vehicle axle weight.

Q: Are pre-fabricated, numbered panels available?
A: Absolutely. All panels can be factory-cut, labeled, and delivered ready for immediate installation.

Q: What finish is recommended for high-traffic industrial areas?
A: Hot-dip galvanizing is standard; optional serrated surfaces improve traction. Powder coating or paint can be applied for additional corrosion protection.
