Carbon steel – Industrial walkway steel grating

Industrial Walkway Grating: Robust and High-Performance Flooring Solutions

1.Product Information

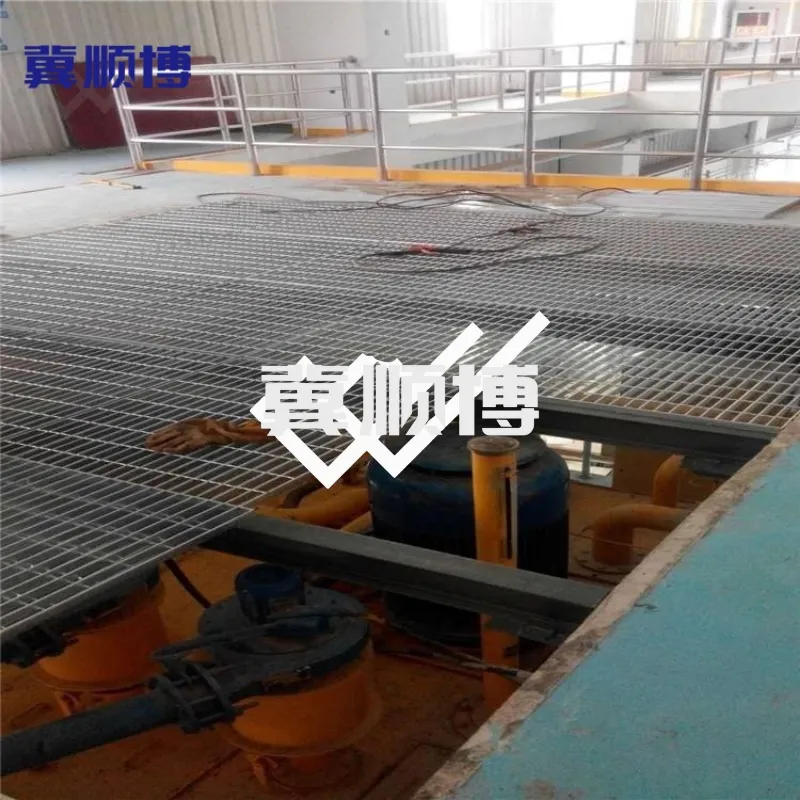

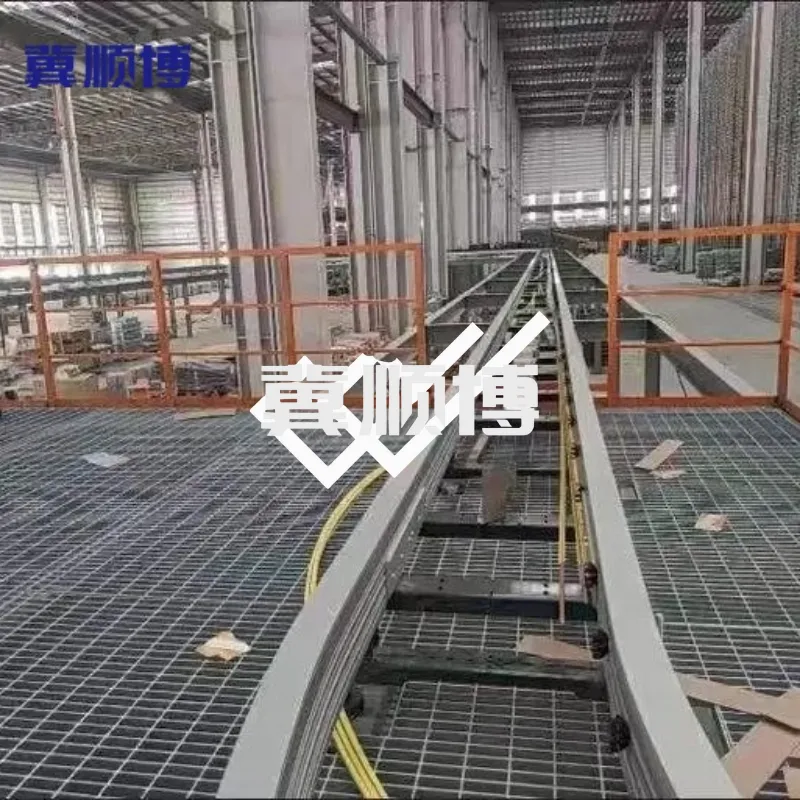

Industrial Walkway Grating is the structural backbone of modern industrial facilities, including oil refineries, power plants, and mining operations. Designed to provide safe passage over machinery, chemical tanks, and high-altitude spans, it features an open-grid structure that allows for maximum light, air, and liquid drainage. Our gratings are engineered for high strength-to-weight ratios and exceptional durability under harsh operating conditions.

2.Technical Parameters

Feature	Specifications
Material Grade	Q235B, Q355B (High-Strength), S275JR (EN10025), ASTM A36 / Stainless Steel (SS304 / SS316L)
Fabrication Method	Press-Welded / Manual Heavy-Duty Welding
Bearing Bar Depth	25mm, 30mm, 32mm, 40mm, 45mm, 50mm up to 100mm
Bearing Bar Thickness	3mm, 5mm, 8mm, 10mm
Cross Bar Type	Twisted Square Steel / Round Bar
Mesh Size (Pitch)	30x100mm, 30x50mm, 40x100mm, 40x50mm
Surface Finish	Hot-Dip Galvanized (per ASTM A123) / Pickled & Passivated (SS)
Anti-Slip Type	Plain Surface / Serrated (S-type)



Engineering Notes:

1.Load Rating: For standard pedestrian traffic, 30x3mm or 30x5mm bars are recommended; however, for areas where maintenance equipment or heavy tools are used, a 40mm+ depth is required.

2.Serration Necessity: In environments prone to oil spills, chemical moisture, or ice, Serrated Bearing Bars are mandatory to ensure worker safety and prevent slip-and-fall accidents.

3.Deflection Standards: Our designs strictly adhere to the L/200 deflection limit (maximum 1/200th of the span) to prevent structural bouncing and worker discomfort.

4.Span Direction: Bearing bars must span between structural supports; manually verify the orientation of the grating during installation to ensure the load is carried correctly.

5.Edge Treatment: For walkways ending over open space, Kick Plates (Toe Boards) should be manually welded to the perimeter to comply with OHS safety standards.

3. Product Advantages

1.High Load-Bearing Capacity: Engineered to handle high point loads and distributed weight, ensuring safety across wide structural spans.

2.Maximum Ventilation & Lighting: The open-grid design prevents the accumulation of explosive gases and allows sunlight/artificial light to reach lower levels of the facility.

3.Low Maintenance Cost: Hot-dip galvanizing provides a self-healing surface that resists rust for decades, even in coastal or high-humidity industrial zones.

4.Self-Draining Surface: Liquids, snow, and industrial debris fall through the mesh, maintaining a clean and safe walking surface at all times.

4.Core Applications

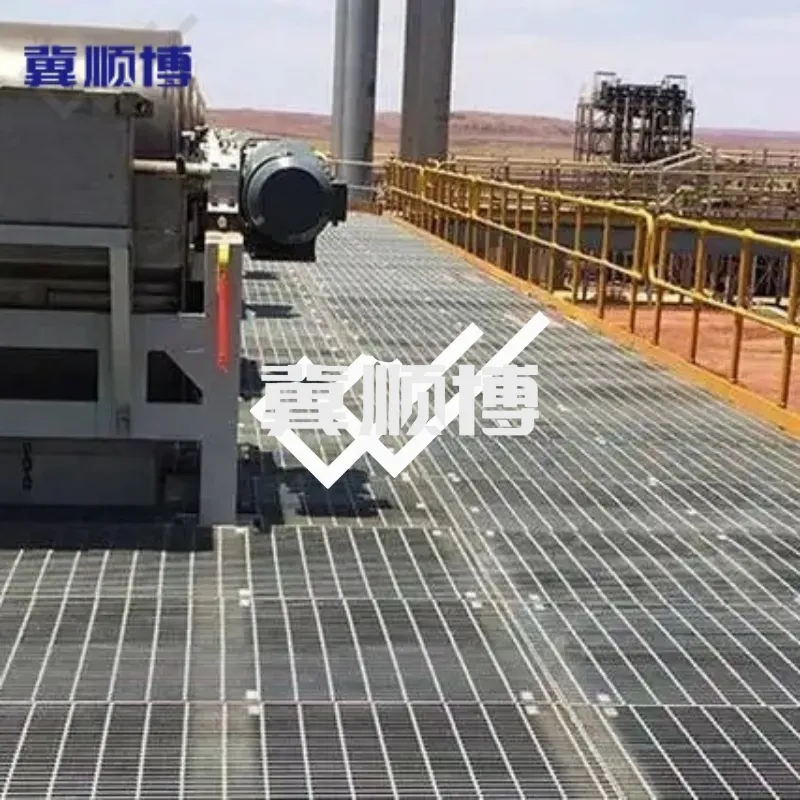

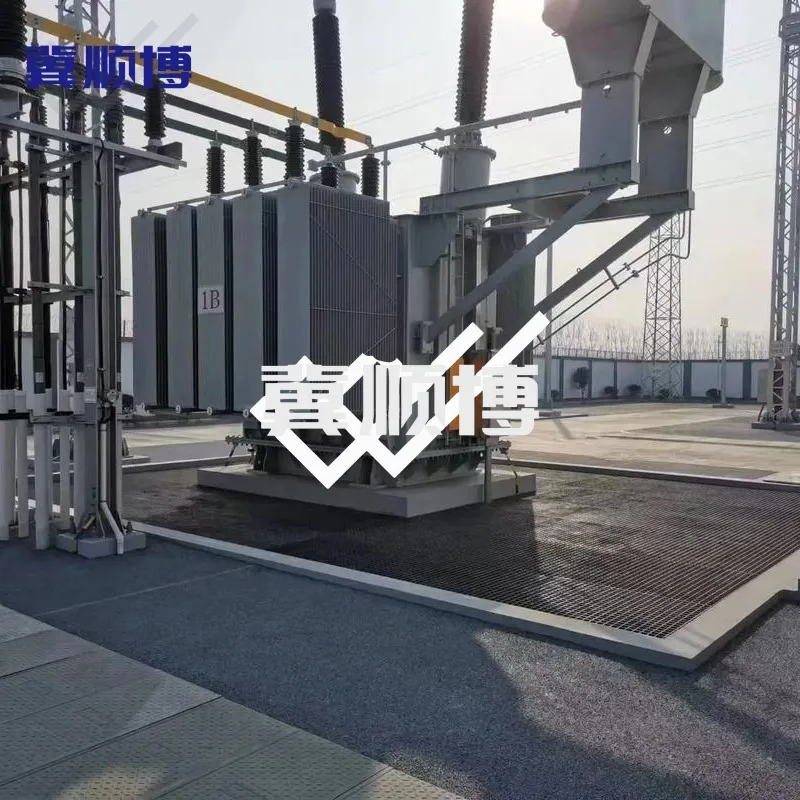

1.Energy & Power: Safe access walkways for boiler rooms, turbine halls, and transformer stations.

2.Petrochemical: Non-sparking and corrosion-resistant platforms for refineries and offshore oil rigs.

3.Mining & Smelting: Heavy-duty conveyor walkways and processing plant flooring that can withstand abrasive dust and vibration.

4.Water Treatment: Slip-resistant paths over treatment tanks and filtration systems.

5. Customization Services

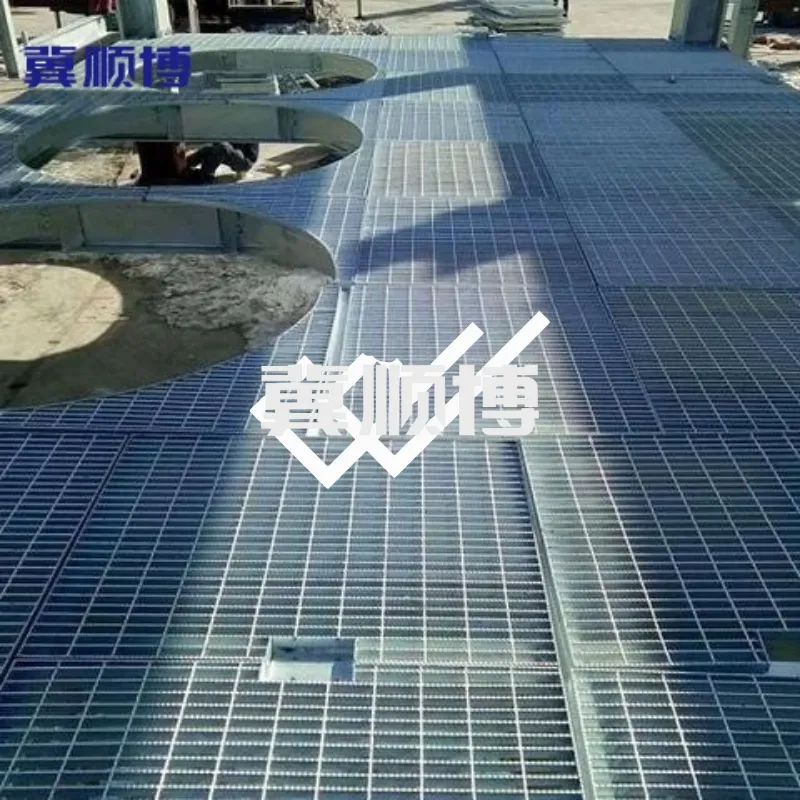

1.Custom Cut-Outs: We provide manual precision cutting for pipe penetrations, column notches, and irregular equipment footprints.

2.Material Grading: Advice on selecting SS316L for high-acid environments versus cost-effective Q235B for standard dry warehouses.

3.Surface Profiling: Custom serration patterns to meet specific industry friction requirements.

4.Fastening Systems: Supply of heavy-duty saddle clips, G-clips, and weld-on lugs for permanent or removable installations.

6. Quality Control

1.Weld Integrity Testing: For manual heavy-duty gratings, we conduct penetration checks on every load-bearing joint.

2.Galvanizing Thickness Audit: Ensuring the zinc coating meets or exceeds 85μm to guarantee long-term corrosion resistance in industrial atmospheres.

3.Flatness & Squaring: Every panel is manually checked for dimensional accuracy to ensure gap-free installation on-site.

7. FAQ

Q: Should I choose 30mm or 40mm bearing bar pitch for an industrial walkway?

A: 30mm pitch (distance between bars) is the global industrial standard for safety, as it prevents most small tools from falling through while providing high stiffness.

Q: Is serrated grating necessary for all industrial platforms?

A: It is highly recommended for any area exposed to liquids, grease, or outdoor weather. Plain bars are only suitable for dry, indoor environments.

Q: How long will hot-dip galvanized grating last in a chemical plant?

A: Depending on the specific chemical vapors, it typically lasts 20-30 years. For highly acidic zones, stainless steel is a better long-term investment.

Q: Can you provide “Heavy Duty” grating for forklift traffic on walkways?

A: Yes. We can fabricate gratings with 8mm or 10mm thick bearing bars specifically designed for rolling loads and heavy impact.

Q: What is the maximum span between supports for a standard 30x5mm grating?

A: To maintain safety and prevent sagging, we generally recommend a maximum span of 1.2 to 1.5 meters for standard pedestrian loads.

Q: Do you offer installation drawings for large platform projects?

A: Yes, we provide layout drawings and piece-marks for every panel to ensure your team can install the grating quickly and correctly.



In summary, Industrial Walkway Grating provides unmatched durability, safety, and low-maintenance reliability for energy plants, petrochemical facilities, mining operations, and water treatment sites. Its high strength-to-weight ratio, customizable cut-outs, serrated anti-slip options, and corrosion-resistant finishes ensure safe access over machinery, tanks, and spans, while open-grid design promotes airflow, lighting, and debris shedding in harsh, high-vibration industrial conditions worldwide.
