Light-Duty Carbon Steel Grating, crafted from high-strength steels (ASTM A36/A572, Q235B/S235JR/S275JR), features welded construction with 20–40 mm deep bearing bars (3–5 mm thick, plain or serrated) and cross bars spaced for optimal drainage and ventilation. It supports pedestrian and light equipment traffic with customizable panels up to 3000×6000 mm, hot-dip galvanizing for corrosion resistance, and easy installation. Ideal for industrial walkways, stair treads, mezzanines, municipal platforms, and commercial rooftops, it ensures safety, durability, and compliance with ANSI/NAAMM, ASTM, and EN standards.
Carbon steel – lightweight steel grating

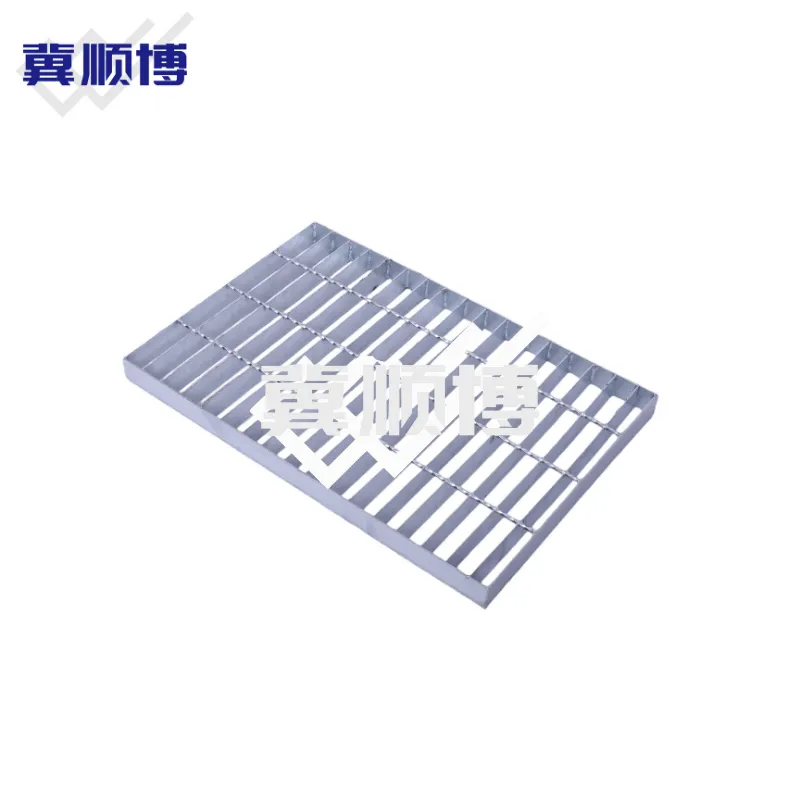

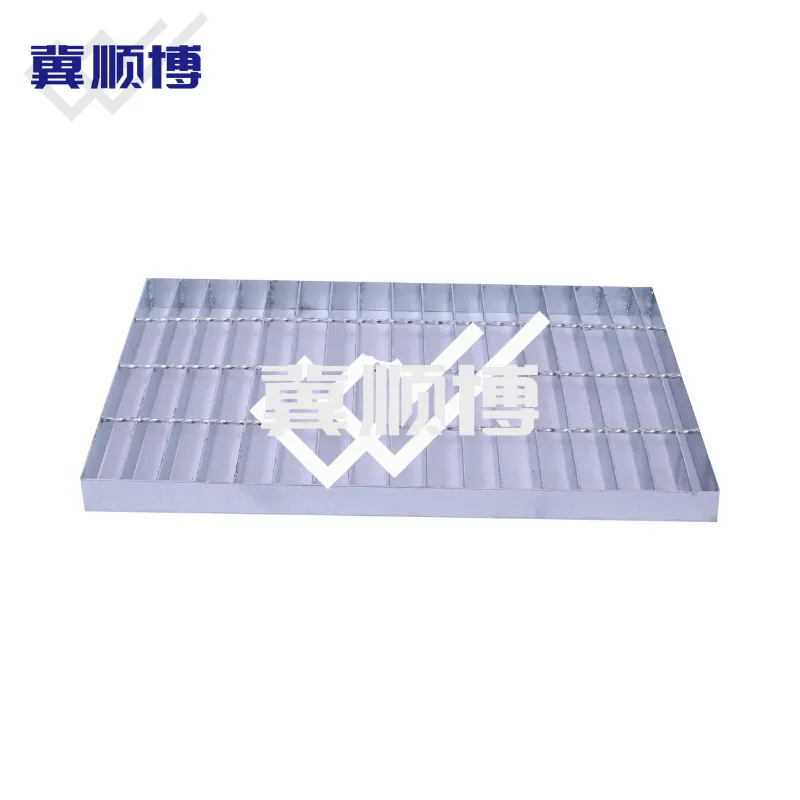

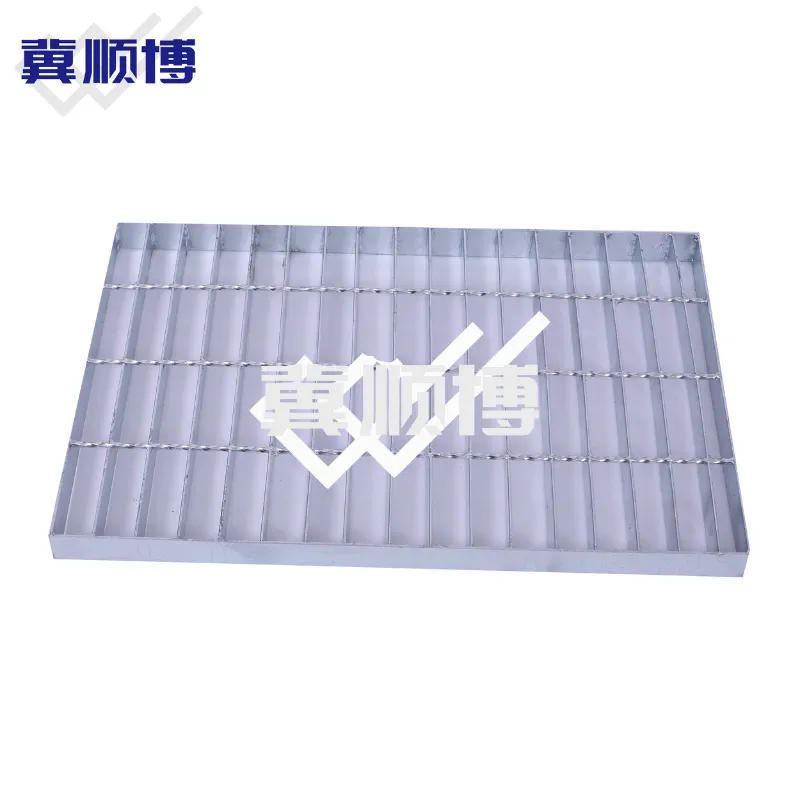

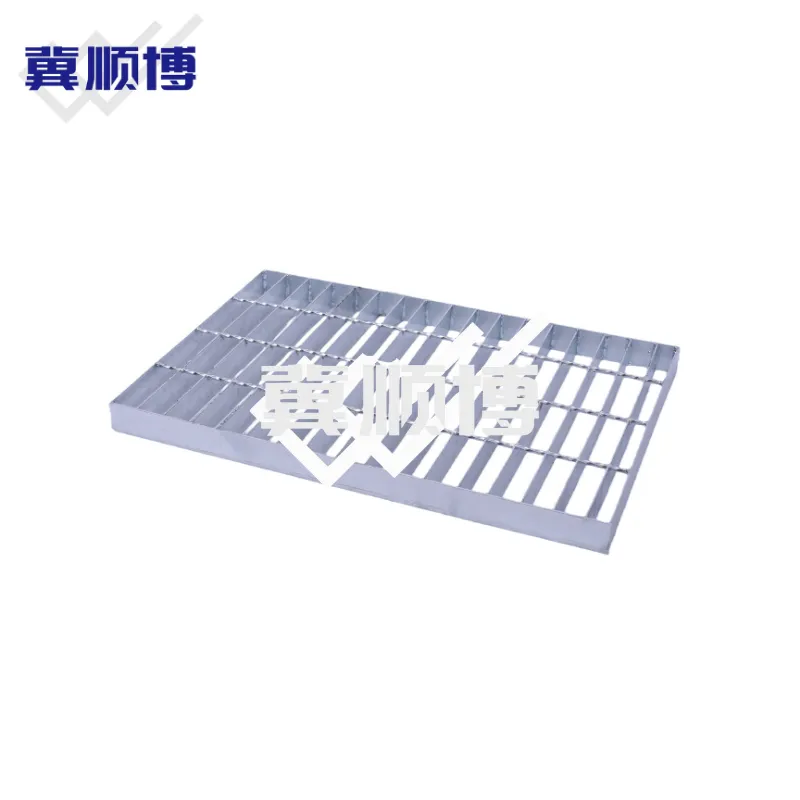

Light-Duty Carbon Steel Grating
1. Product Overview
Light-duty carbon steel grating provides a lightweight yet rigid solution for pedestrian walkways, maintenance platforms, stair treads, and light-duty industrial zones. These panels combine moderately deep bearing bars with cross bars to create a stable walking surface while minimizing dead load. The open mesh design ensures excellent drainage and ventilation, making it ideal for environments prone to water accumulation or debris.
2. Technical Parameters
| Category | Parameter | Specification / Industry Range | Engineering Notes |
| Material | Steel Grade | ASTM A36 / A572 / EN S235JR / Q235B / S275JR | High-strength carbon or low-alloy steels per international standards |
| Manufacturing | Production Method | Welded (resistance or manual) | Standard welding ensures panel integrity; spacing customized per project |
| Bearing Bars | Bar Type | Rectangular / Serrated / I Bar | Serrated bars improve slip resistance in wet/oily zones |
| Depth | 20 – 40 mm | Selected based on expected load and span requirements | |
| Thickness | 3 – 5 mm | Thicker bars increase load capacity while keeping panels manageable | |
| Bar Spacing (C/C) | 25, 30, 38, 40, 50, 60 mm（or custom） | Reference; final spacing per project design and load tables | |

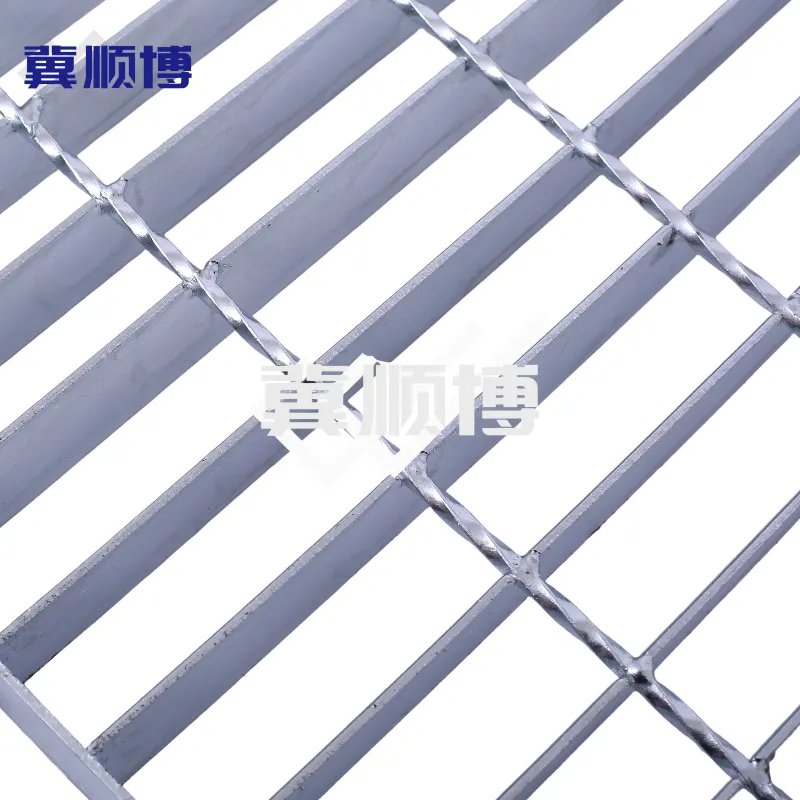

| Cross Bars | Bar Type | Round / Twisted Square / Flat | Twisted square improves drainage and stiffness |
| Bar Size | 5 – 12 mm (diameter or thickness) | Industry standard | |
| Bar Spacing | 50, 60, 76, 100, 101.6, 120 mm（or custom） | Selected based on open area and structural requirements | |
| Panel Size | Width | 300 – 3000 mm | Custom widths available per project |
| Length | ≤6000 mm | Panels can be cut to fit stair treads, platforms, or service trenches | |
| Structural | Design Load Reference | Project-specific based on span and bar size | Load rating tables required for safe pedestrian or light equipment traffic |
| Deflection Limit | L/200 – L/400 | Standard design limits for light-duty panels | |
| Surface | Finish Options | Hot-dip galvanized (ASTM A123 / ISO 1461), painted, powder-coated | Galvanizing typically ≥610 g/m² for elements ≥6 mm |
| Standards | Applicable Codes | ANSI/NAAMM MBG531, ASTM A123/A36/A572, EN 10025, ISO 9001 | Ensures load performance, corrosion protection, and structural safety |
Engineering Notes :
- Panel dimensions, bar depth, thickness, and spacing are selected based on expected pedestrian and light equipment loads.
- Serrated surfaces recommended where slip resistance is a priority.
- Panels can be cut or notched to fit stair treads, service trenches, or platforms.
- Surface finish selection depends on corrosion exposure and maintenance requirements.
3. Product Advantages
- Lightweight & Easy Installation: Simplifies handling and reduces labor cost.
- Drainage & Ventilation:Open mesh prevents water accumulation and debris build-up.
- Slip-Resistant Options:Serrated bars enhance safety in wet or lightly oily areas.
- Customizable Layout: Can be fabricated to project-specific dimensions.
- Durable Construction:Welded high-strength bars ensure long-term performance under pedestrian and light machinery traffic.
4. Applications & Engineering Scenarios
- Industrial platforms and walkways for light equipment.
- Stair treads, catwalks, and mezzanines in factories or warehouses.
- Municipal pedestrian bridges, drainage grates, and light-access covers.
- Commercial rooftops, terraces, or platforms subject to light traffic.
5. Industry Applications
- Manufacturing & Warehousing: Light-duty platforms and maintenance walkways.
- Municipal Projects: Pedestrian drainage grates and platform covers.
- Commercial Buildings: Rooftop walkways and terrace platforms.
- Light Infrastructure: Minor bridges and elevated pedestrian walkways.
6. Quality Control & Performance
- Load Verification:Panels tested against span and load tables for pedestrian/light machinery traffic.
- Dimensional Accuracy: Checked for flatness and squareness to ensure flush installation.
- Weld Integrity:100% visual inspection ensures all joints are fused without defects.
- Corrosion Protection: Coating thickness and adhesion verified per ASTM/ISO standards.
7. Factory Customization & Engineering Services
- Custom Cut Panels:Notched, cut-to-size, or edge-banded for platforms, stairs, and trenches.
- Engineering Consultation:Optimized bar size and spacing per span and expected traffic.
- Edge & Clip Options:Optional clips or reinforced banding for high-traffic pedestrian areas.
8. FAQ
Q: Can light-duty grating support small forklifts or carts?
A: Yes, load ratings are verified based on bar thickness, spacing, and span for pedestrian/light equipment traffic.
Q: What finish is recommended for outdoor installations?
A: Hot-dip galvanizing is standard; powder coating or paint is optional for aesthetic or mild corrosive environments.
