Carbon steel – perforated steel grating

Close Mesh Grating

1. Product Overview

Close Mesh Grating is a specially designed carbon steel grating featuring small, closely spaced openings that prevent small objects from falling through while maintaining excellent structural strength. This type of grating is engineered for applications where both pedestrian safety (high heel proof) and industrial load-bearing are required. Panels are precisely cut, welded, and treated to accommodate complex layouts, curved walkways, mezzanines, and platforms. Suitable for industrial facilities, urban infrastructure, commercial zones, and logistics environments requiring enhanced safety and load performance.

2. Technical Parameters



Category	Parameter	Specification / Industry Range	Engineering Notes
Material	Steel Grade	Carbon Steel: Q235B / ASTM A36/Q355B	High-strength material for industrial, municipal, and commercial use.
Bearing Bars	Thickness	5 – 12 mm	Customizable based on span and load; thicker bars increase load capacity and reduce deflection.
Bearing Bars	Center-to-Center Spacing	11/16″ (~17.5 mm), 13/16″ (~20.6 mm), Customized ≤ 25 mm	Dense spacing meets high heel and ball-proof safety requirements while maintaining load capacity.
Cross Bars	Type	Twisted square / flat steel bars	Enhances lateral stiffness and surface stability under foot and light vehicle loads.
Cross Bars	Spacing	50 – 100 mm	Standard industrial spacing; customizable for drainage and airflow.
Dimensions	Width	Custom 500 – 3000 mm	Factory sizing reduces on-site cutting and cuts down installation time.
Dimensions	Length	≤6000 mm	Panels can be cut or shaped for irregular site geometries and complex installations.
Surface Treatment	Process	Hot-dip galvanized (ASTM A123), painted, powder coated	Superior corrosion resistance for indoor, outdoor, coastal, and industrial climates.
Load Capacity	Reference Load	Pedestrian, forklifts, light/medium industrial vehicles	Based on bar thickness, spacing, and span; engineered per project for safety.
Standards	Applicable Codes	ANSI/NAAMM MBG 531, ASTM A36/A123, ISO 9001	Ensures structural integrity, corrosion resistance, and compliance with global norms.
Design Recommendations	Customization	Consult engineers for optimal spacing and panel layout	Guarantees safe load-bearing performance for traffic types and spans.





Engineering Notes:

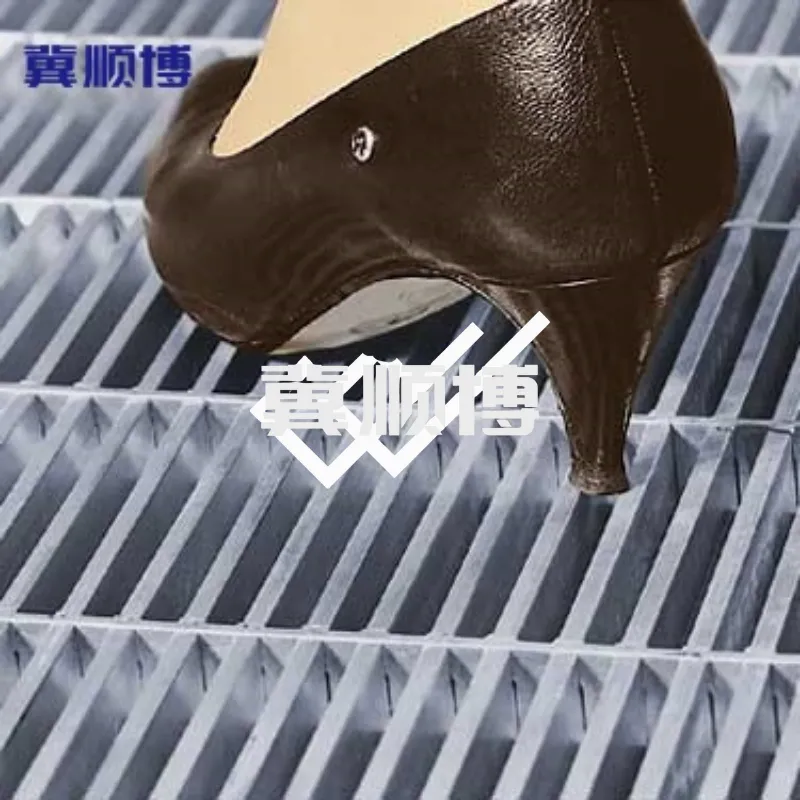

Close mesh panels are engineered to prevent small objects, tools, or debris from falling through while offering strong structural performance. Bearing bar spacing below 25 mm is crucial for high heel/ball proof requirements, especially in pedestrian-heavy facilities. Hot-dip galvanizing ensures durability in corrosive and coastal environments. Customized shapes and cutouts can integrate with stair landings, curved walkways, and maintenance zones without compromising safety or performance.



3. Product Advantages

1.Enhanced Safety: Close mesh openings prevent object drop-through and reduce slips, meeting high heel/ball proof industry standards.

2.Structural Reliability: Carbon steel with optimized bar thickness maintains excellent load-bearing under pedestrian and light industrial traffic.

3.Versatile Customization: Panels can be shaped for irregular layouts, mezzanines, stair zones, and complex site configurations.

4.Durability in Harsh Environments: Hot-dip galvanizing or powder coating provides reliable corrosion resistance in coastal, chemical, or urban climates.

5.Low Maintenance: Smooth, sealed finish minimizes debris buildup and simplifies cleaning and inspection.

4. Applications & Engineering Scenarios

1.Industrial Platforms & Mezzanines: Dense panels for walkways where small part drop-through could damage equipment below.

2.High-Traffic Pedestrian Walkways: Urban bridges, station platforms, and observation decks requiring slip prevention and object safety.

3.Warehouse Loading Zones: Supports forklifts and pallet trucks while preventing product or tool drop-through.

4.Equipment Maintenance Aisles: Safe access to machinery in petrochemical, power, and steel plants with dense mesh safety features.

5.Ports, Logistics Centers & Outdoor Infrastructure: Combines robust load performance with high pedestrian safety in coastal or outdoor environments.

5. Quality Control & Performance

1.Material certification (MTR) confirming steel grade and mechanical properties.

2.Dimensional inspection for bar spacing, flatness, and alignment per ANSI/NAAMM MBG 531.

3.Coating thickness and adhesion tests to verify corrosion protection in targeted climates.

4.Load and deflection testing to ensure safety under pedestrian and light industrial loads.

6. Factory Customization & Engineering Services

1.Shape & Size Customization: Tailored panels for stairways, curved platforms, mezzanines, and irregular layouts.

2.Spacing Optimization: Bearing bar spacing selected to satisfy high heel/ball-proof criteria and load requirements simultaneously.

3.Surface Treatment Options: Hot-dip galvanizing, powder coating, or painting for environmental resistance and visual integration.

4.Engineering Consultation: From load calculation and drawing review to installation guidance and global deployment support.

7. FAQ

Q1: What spacing is recommended for high heel and small object safety?
A1: Bearing bar spacing of 11/16″ (~17.5 mm) or 13/16″ (~20.6 mm) is recommended to meet high heel and object-proof safety standards while maintaining structural strength.

Q2: Can close mesh panels support warehouse forklift traffic in North America?
A2: Yes. When engineered with appropriate bar thickness, spacing, and span, panels support pedestrians, pallets, and light industrial vehicle traffic in industrial facilities.

Q3: Are these panels suitable for coastal or humid climates like Southeast Asia or Europe?
A3: Yes. Hot-dip galvanizing or powder coating protects against corrosion in coastal, marine, or humid environments globally.

Q4: Can you fabricate custom dense mesh grating for stadiums or public plazas?
A4: Absolutely. We custom-fabricate panels to any shape, including curved and irregular designs, for public plazas, bridges, and cultural facilities worldwide.

Q5: How fast can these grating panels be delivered internationally?
A5: Delivery depends on project size and customization; our logistics team coordinates safe and timely shipment to locations in Asia, Europe, North America, and beyond.



In summary, Close Mesh Grating combines enhanced safety and robust performance for demanding environments where object fall-through poses risks. Ideal for industrial mezzanines, warehouse zones, pedestrian walkways, maintenance aisles, ports, and urban infrastructure, its dense mesh, customizable shapes, and durable coatings ensure reliable load-bearing, slip prevention, and long-term protection worldwide.
