Carbon steel – photovoltaic walkway panels

PV Walkway Grating: High-Efficiency and Durable Solar Support Solution

1. Product Information

PV Walkway Grating is a specialized access solution designed specifically for solar power plants. Fabricated from premium steel through precision manual welding, cutting, and grinding, it provides a high-strength, corrosion-resistant, and anti-slip walking surface. Beyond securing safe passage for maintenance personnel, it effectively distributes loads and protects underlying roof structures or racking systems, ensuring stable long-term operation for PV facilities.

2. Technical Parameters

Feature	Specifications
Material Grade	Q235B, Q355B (High-Strength), S275JR (EN10025), ASTM A36/ Aluminum Alloy (6063-T6)
Common Mesh (G-Type)	G203/30/100, G253/30/100, G303/30/100, G303/40/100
Bearing Bar Pitch	30mm / 40 / 50mm
Cross Bar Pitch	50mm / 100mm
Load Capacity	1 to 3 Tons per Square Meter (Subject to span)
Surface Treatment	Hot-Dip Galvanized (Rust protection) / Powder Coated (High visibility)
Fabrication Method	Manual Precision Welding / Press-Welded
Panel Dimensions	Fully customized based on site racking and row spacing



Engineering Notes:

1.Load Efficiency: For rooftop maintenance, lightweight G253/30/100 or G203/30/100 is often preferred to reduce dead load on the roof while meeting personnel weight requirements.

2.Corrosion Protection: Hot-dip galvanizing is the industrial standard for 25-year solar lifespans; however, Powder Coating can be applied over galvanizing to add high-visibility safety colors (like safety yellow).

3.Span Management: The grating depth (20mm, 25mm, or 30mm) must be manually calculated based on the support spacing of the solar racking to ensure a deflection-free walking experience.

4.Light & Air Flow: The open grid design (30x100mm or 40x100mm) is critical for minimizing wind uplift on rooftops and preventing debris accumulation.

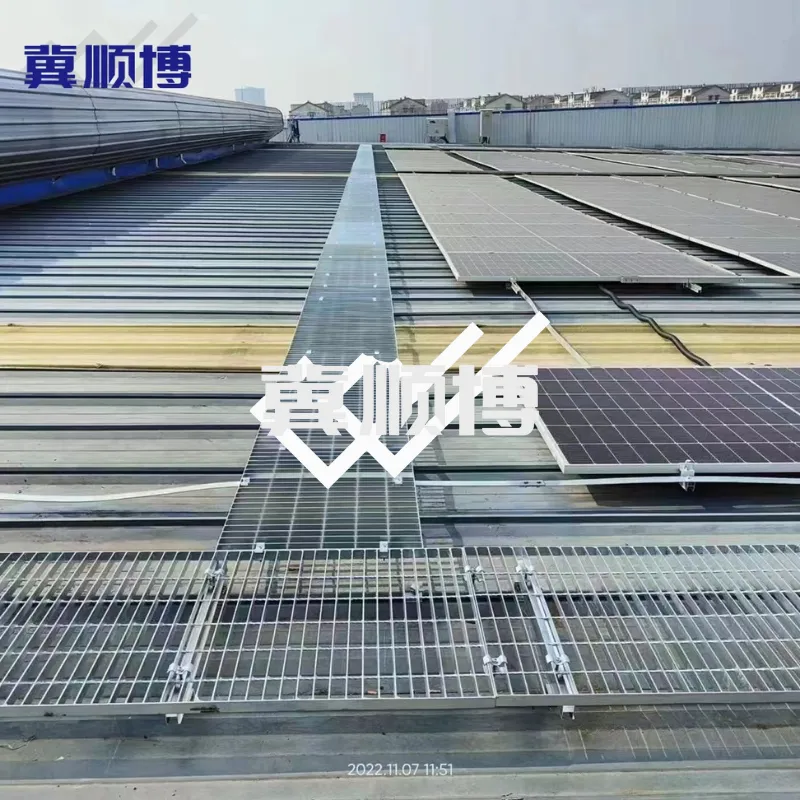

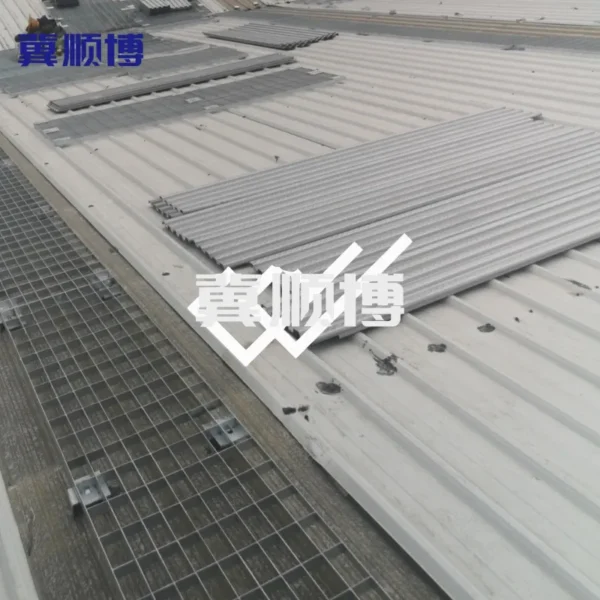

5.Installation Security: We recommend specialized M-clips or J-hooks to fix the grating manually to the solar frame, avoiding any drilling that could void the racking warranty.

3. Product Advantages

1.High Strength & Durability: Advanced manufacturing ensures superior load-bearing capacity and fatigue resistance, matching the 25-year lifecycle of PV systems.

2.Anti-Slip Safety: The grid surface provides exceptional traction even in wet or frosty conditions, significantly reducing the risk for maintenance crews.

3.Optimized Cost-Efficiency: Compared to other walkway materials, our steel grating offers a higher strength-to-weight ratio and lower long-term maintenance costs.

4.Efficient Installation: The modular design allows for rapid onsite assembly, shortening construction periods and reducing labor expenses.

4. Core Applications

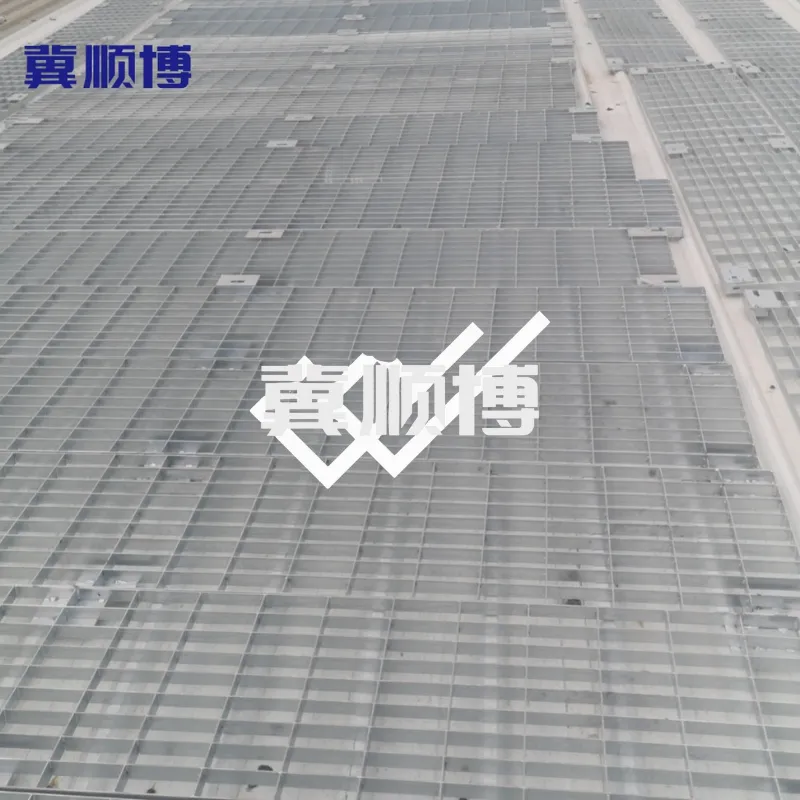

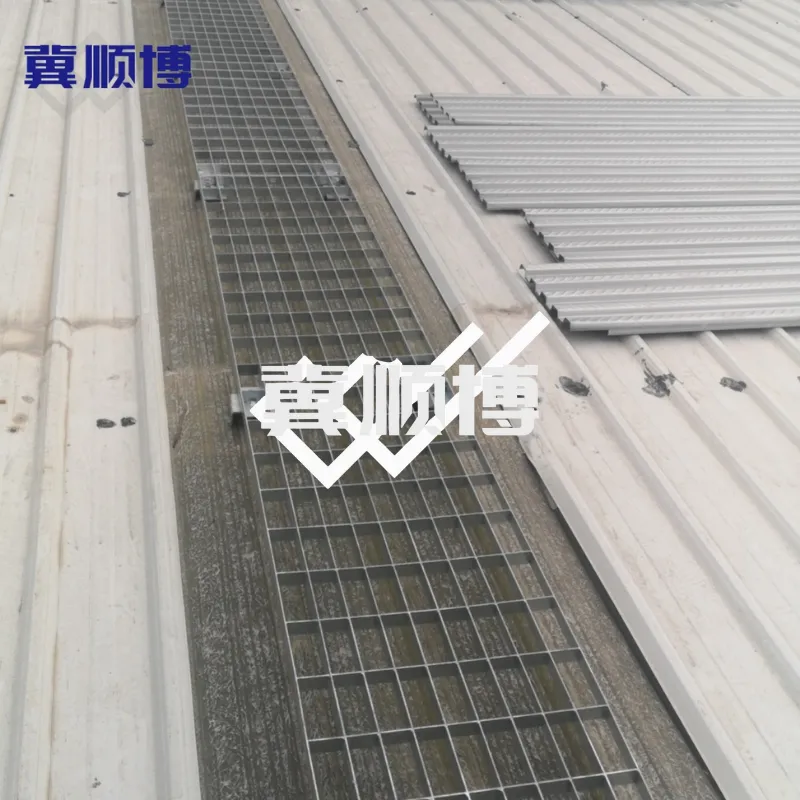

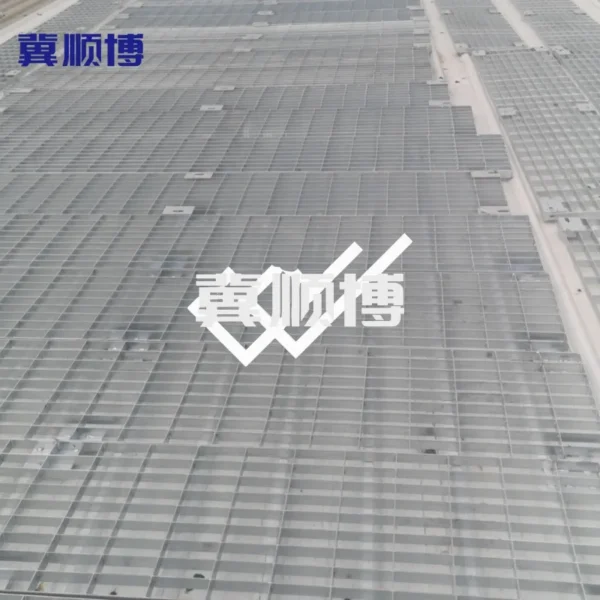

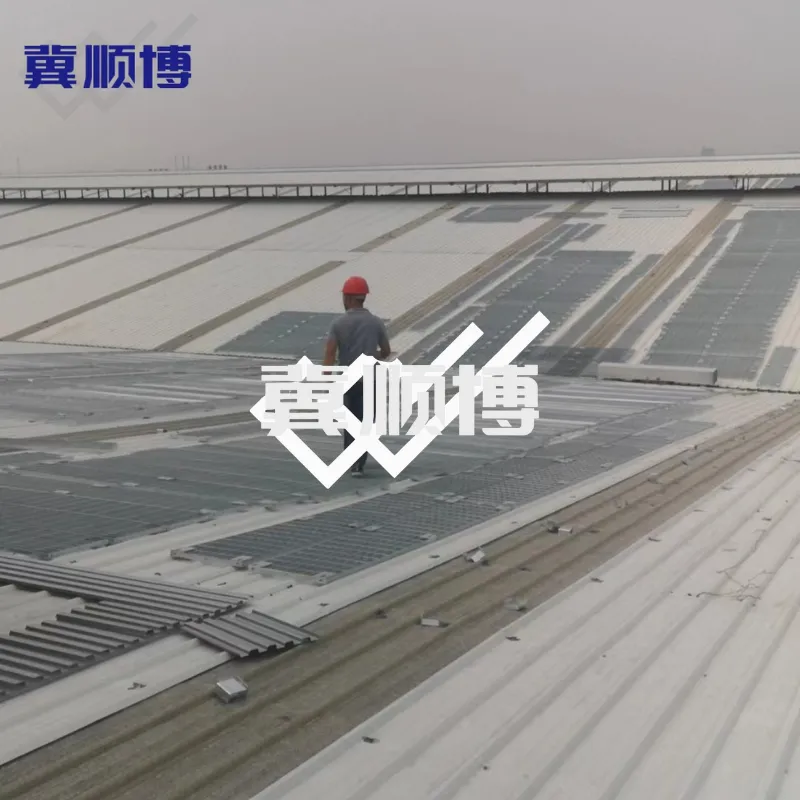

1.PV Power Generation: Specifically for maintenance walkways and service platforms in utility-scale ground plants and commercial rooftop arrays.

2.Industrial Facilities: Used as access paths in warehouses, workshops, and chemical plants where heavy-duty performance and ventilation are required.

3.Public Infrastructure: Applied in parks, parking lots, and eco-friendly projects as specialty walkways that blend utility with green-energy aesthetics.

5. Customization Services

We provide comprehensive bespoke solutions:

1.Dimension Tailoring: Precise sizing based on actual site conditions and row-to-row spacing.

2.Material Selection: Expert recommendations between carbon steel and aluminum based on environmental humidity and roof load limits.

3.Color Options: Custom powder coating in any RAL color to enhance safety visibility or meet architectural requirements.

4.Accessory Supply: Provision of complete fixing sets, including specialized clamps and kick plates.

6.Quality Control

1.Load Deflection Audit: Every batch is tested to verify it supports 1-3 tons/sqm without exceeding safety deflection limits.

2.Coating Integrity: Ultrasonic testing of zinc thickness and adhesion checks for powder-coated finishes to ensure long-term outdoor exposure.

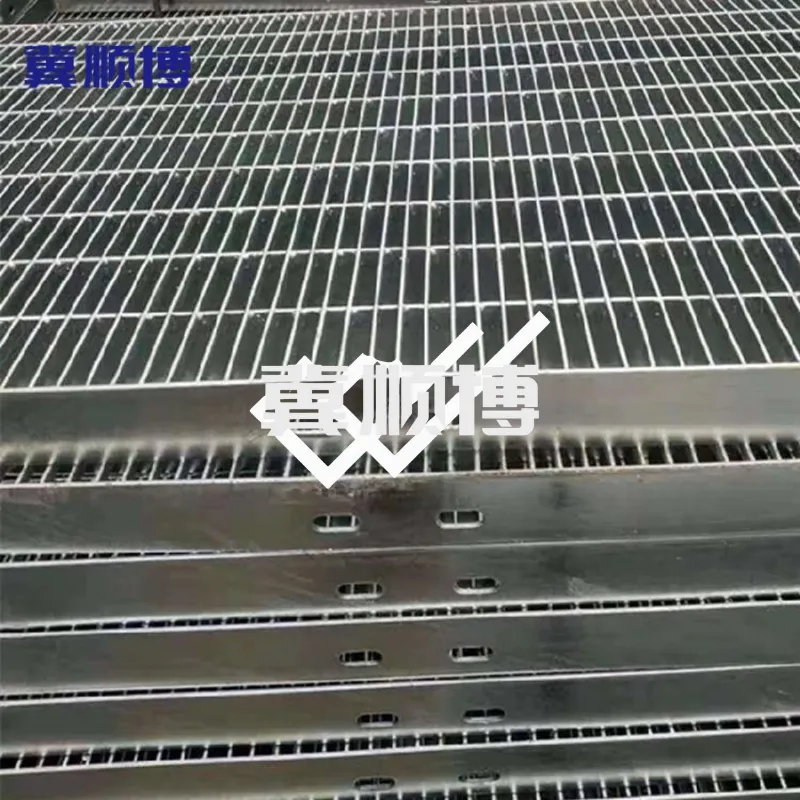

3.Edge Deburring: Manual grinding of all cut edges to protect maintenance workers’ hands and prevent damage to sensitive PV cables.

7. FAQ

Q: What is the most common specification for rooftop PV walkways?

A: G253/30/100 and G303/30/100 are our most requested sizes, as they offer the perfect balance of weight, cost, and structural stiffness for a 1-meter span.

Q: Can the grating be powder coated in safety colors?

A: Yes. While hot-dip galvanizing provides the best rust protection, we can add a powder coating layer (e.g., safety yellow or orange) to make the maintenance path clearly visible.

Q: How does the grating handle wind uplift on high-rise roofs?

A: The open grid design allows wind to pass through freely, significantly reducing the “sail effect” and uplift forces compared to solid walkways.

Q: Is there a benefit to choosing a 40mm bearing bar pitch (G303/40/100)?

A: A 40mm pitch is lighter and more economical, but it should only be used where the support span is relatively short or the required point-load is lower.

Q: How do you fix the grating without damaging the solar racking?

A: We supply specialized fixed clamps (clips) that grip the racking flange, eliminating the need for onsite welding or drilling that could cause rust or structural damage.

Q: Why should I choose steel grating over FRP (fiberglass) for a solar project?

A: Steel grating provides better UV stability and fire resistance than most plastic-based materials, and it maintains its structural rigidity across extreme temperature fluctuations common in PV farms.



In summary, PV Walkway Grating provides durable, low-maintenance maintenance pathways for utility-scale and rooftop solar installations, combining superior strength-to-weight ratio, corrosion resistance, and rapid modular installation. With customizable dimensions, secure non-drilling clamps, open-grid ventilation, and 25-year lifecycle alignment, it enhances personnel safety, protects PV racking, and optimizes long-term performance in demanding outdoor solar environments.
