Carbon Steel Platform Grating (Industrial Solution)

1.Product Overview

Carbon Steel Platform Grating is the structural foundation for high-load industrial environments. Our production model leverages the high-speed efficiency of Four Automated Pressure Welding Lines for standard high-volume orders, complemented by a specialized Manual Shielded Welding Department for bespoke structural requirements. This hybrid capability allows us to provide both mass-produced standard panels and highly intricate, custom-shaped gratings that bypass the dimensional limitations of automated machinery.

2.Technical Parameters

Feature	Specifications	Engineering Notes
Material Grade	Q235B, Q355B (High-Strength), S275JR (EN10025), ASTM A36	High-tensile structural steel
Fabrication Method	Auto-Pressure & Manual Welding	Synergy of automation and craftsmanship
Bearing Bar Depth	20mm to 200mm	Selection based on clear span and load
Bearing Bar Thickness	2mm to 10mm	5mm/8mm is the industrial standard
Cross Bar (Twisted)	5mm / 6mm / 8mm (Twisted Square)	Forge-welded to enhance anti-slip & rigidity
Cross Bar Size	5mm / 6mm / 8mm (Twisted Square)	Forge-welded for monolithic stability
Surface Finish	Hot-Dip Galvanized / Painted	Anti-corrosion per ASTM A123 / ISO 1461
Mesh Size (Pitch)	20mm,30mm, 40mm, 50mm,60mm (Customizable)	30mm pitch is standard for pedestrian safety
Cross Bar Pitch	50mm, 100mm (Standard)	Determines debris shedding & lateral stability



Manufacturing Features:

1.4 Automated Pressure Welding Lines: High-voltage resistance technology fuses intersections into a single unit. Best for large-scale flooring with superior surface flatness and consistent weld strength.

2.Manual Shielded Welding Department: No dimensional or shape limits. Used for fabricating oversized panels (>1m width), circular/arc-shaped notches, and providing reinforced welding as per specific engineering drawings.

Engineering Notes:

1.Span Orientation: Bearing bars must run perpendicular to support beams. Improper orientation will lead to structural failure.

2.Mechanical Fixing: For vibration-heavy environments, secure panels with at least four saddle clips to prevent noise and shifting.

3.Reinforced Notching: For equipment cut-outs exceeding 150mm, Manual Shielded Welding can be used to apply a flat banding bar to restore load-carrying capacity.



3.Product Advantages

1.High Strength-to-Weight Ratio: Supports heavy live loads while minimizing the dead load on the primary building frame.

2.Self-Cleaning Mesh: The 80%+ open area allows fluid, dust, and debris to fall through, keeping the walking surface clear.

3.Forge-Welded Integrity: Permanently fused joints resist loosening from machinery vibration or heavy foot traffic.

4.Ventilation & Airflow: Facilitates light penetration and prevents the accumulation of fumes in multi-level facilities.

4.Core Applications

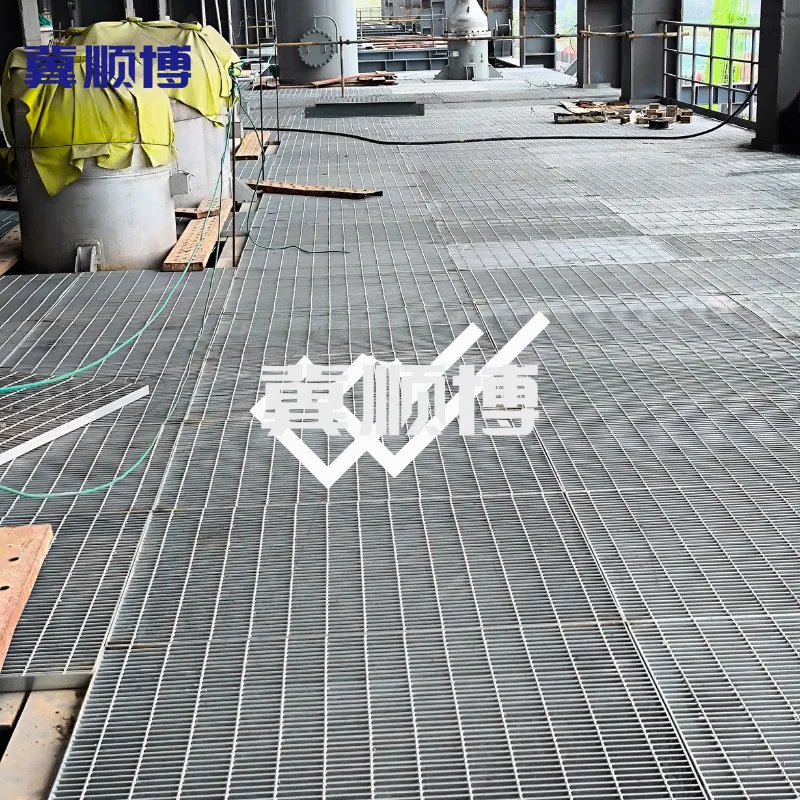

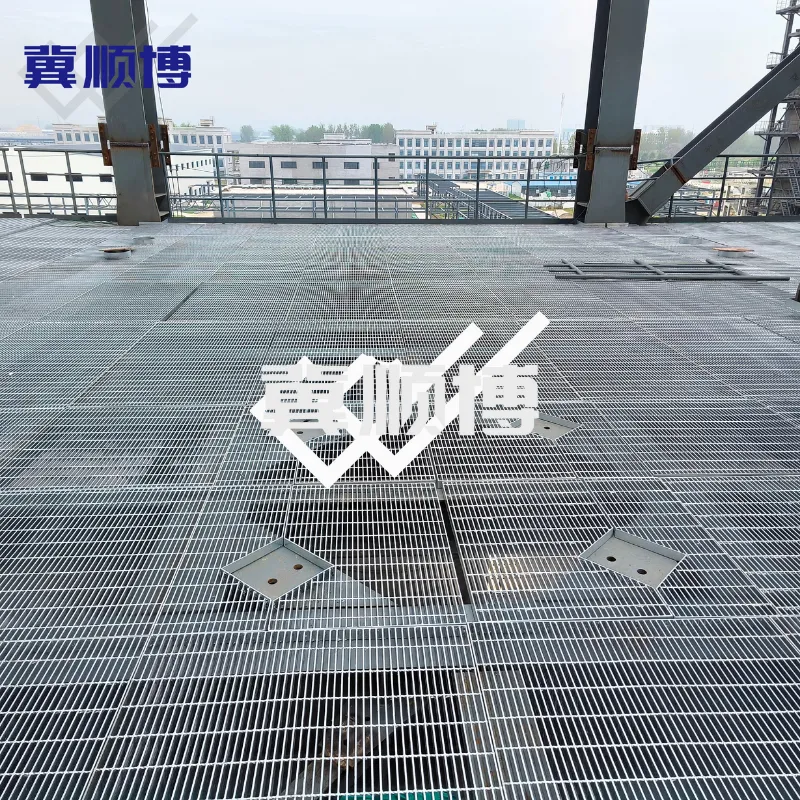

1.Petrochemical & Refinery Platforms: Access levels around reactors and storage tanks requiring durable, anti-corrosive flooring.

2.Power Plant Catwalks: Maintenance walkways around boilers, turbines, and cooling tower structures.

3.Mining & Ore Processing: Heavy-duty decks for screening plants where debris shedding is critical.

4.Sewage Treatment Walkways: High-moisture environments requiring stable and slip-resistant surfaces.



5.Customization Services

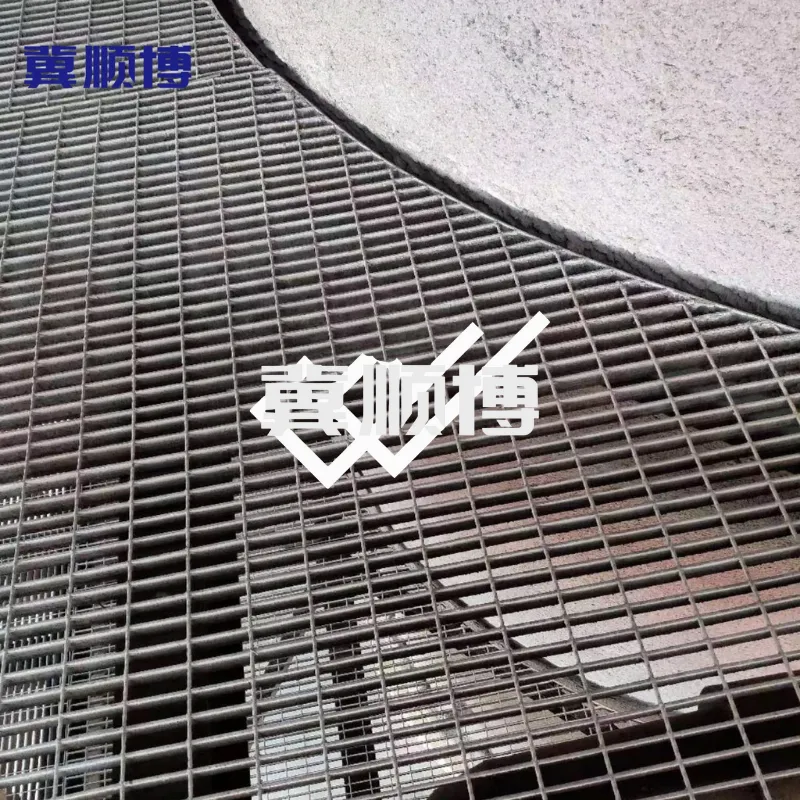

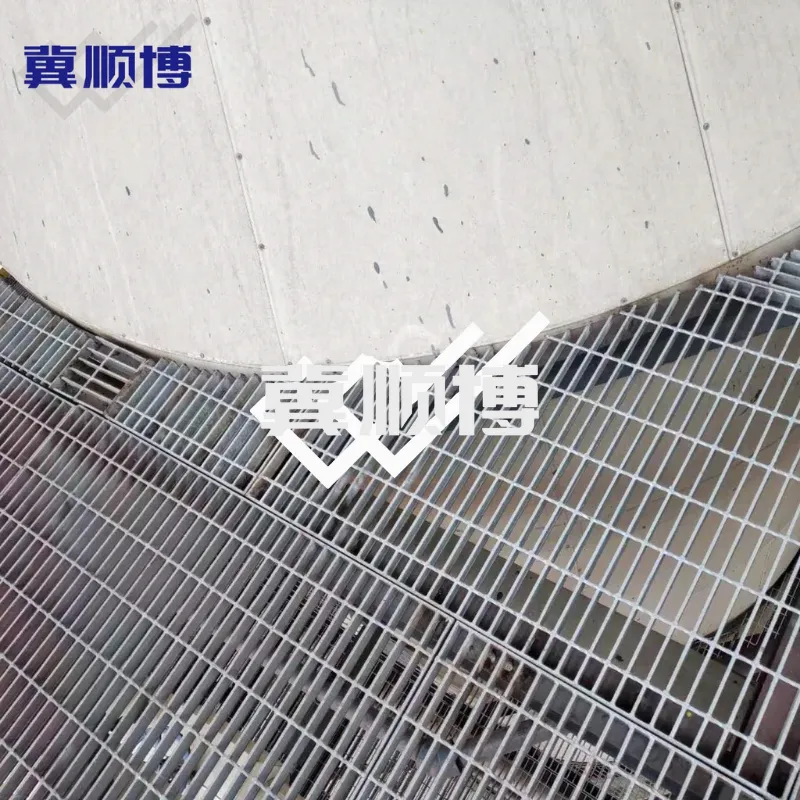

1.Complex Geometric Shaping: Manual welding of arc-shaped, circular, or irregular panels to fit precisely around onsite piping.

2.Oversized Panel Production: Fabricating widths and lengths that exceed standard automated machine limits.

3.Factory-Welded Toe-boards: Based on your drawing requirements, 100mm or 150mm kick-plates can be pre-installed on specific notches or perimeters.

4.CAD Layout Support: Every custom panel is assigned a Unique ID to match digital maps for rapid onsite assembly.

6.Quality Control & Performance Audit

1.Weld Shear Strength Check: Ensuring fusion points meet the required load-carrying capacity per international standards.

2.Galvanizing Thickness Audit: Digital verification of the zinc bond to guarantee the specified service life.

3.Dimensional Accuracy Check: Every bespoke panel is verified against shop drawings for a 100% “drop-in” fit.





7.FAQ

Q: Can you produce panels wider than 1 meter?

A: Yes. While automated lines have width limits, our manual welding department can fabricate oversized panels to your specific engineering dimensions.

Q: Why is the bearing bar direction critical?

A: The bearing bars carry the load. They must rest on the supports at both ends to prevent the panel from bending or collapsing.

Q: Can your grating handle vibration from rotating machinery?

A: Yes. The forge-welded structure is resistant to fatigue. We recommend using four clips per panel to dampen noise and movement.

Q: Are toe-boards (kick-plates) mandatory on all panels?

A: No. This depends entirely on your project’s safety codes and drawings. We provide them as an optional factory-welded service based on your request.

Q: How long will the galvanizing last?

A: In standard industrial environments, hot-dip galvanizing typically provides 20-50 years of maintenance-free protection.

Q: Do you provide installation maps for complex layouts?

A: Yes. We provide detailed layout drawings where every panel is numbered for fast and logical assembly.



In summary, Carbon Steel Platform Grating excels in demanding industrial settings like petrochemical plants, power stations, mining operations, and sewage facilities. Its hybrid fabrication ensures flexibility for standard and bespoke designs, while forge-welded durability, anti-corrosion coatings, and CAD-supported customization with unique panel IDs guarantee safe, reliable performance, easy installation, and long-term structural stability in harsh, high-load environments.
