Riveted Steel Bar Grating

Heavy-Duty Fatigue-Resistant Flooring & Bridge Decking Solutions

1. Product Overview

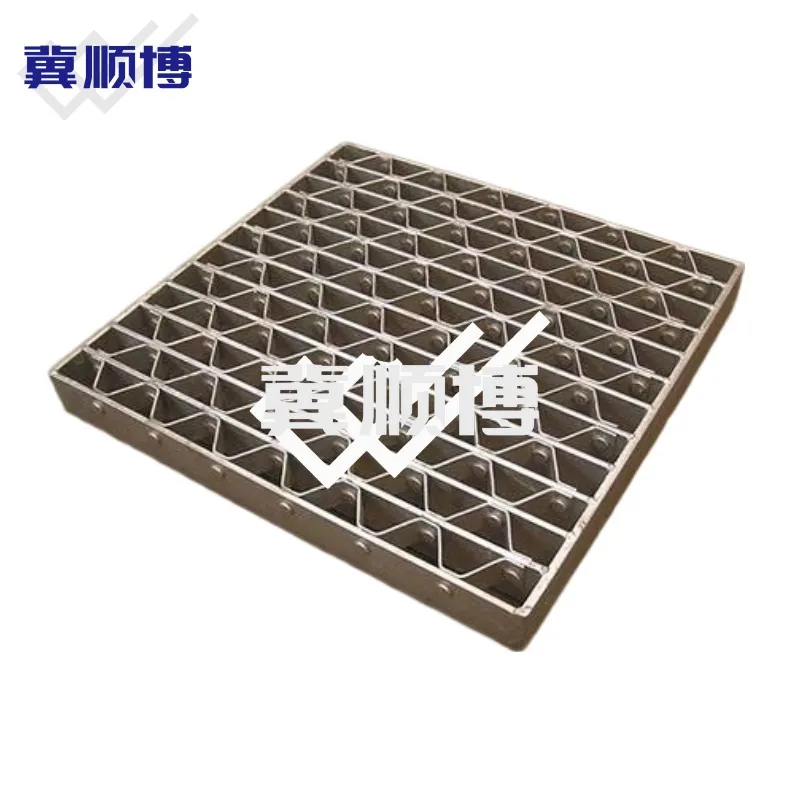

Our riveted steel bar grating is the most durable industrial flooring system available, specifically engineered for high-impact and heavy-vibration environments. The core fabrication process involves mechanically joining Bearing Bars to Reticulated Bars (crimped “zig-zag” members) using high-strength Cold-Pressed Rivets under massive hydraulic pressure. Unlike welded grating, this method requires zero welding, completely eliminating Heat Affected Zones (HAZ) and thermal stress. Following our signature “Design-to-Build” workflow, every project is precision-planned using CAD secondary design, with each panel assigned a unique ID number for a seamless, “puzzle-like” installation on-site.

2. Technical Parameters (Professional Engineering Standards)

Category	Technical Item	Industrial Specifications (Fully Customizable)	Engineering Remarks
Material	Base Metal	ASTM A36 / Q235B / Q355B / S275JR	Carbon steel optimized for mechanical cold-forming.
Bearing Bar	Section Depth	25mm – 125mm (1″ to 5″)	Defines the clear span capacity for heavy loads.
Bearing Bar	Section Thickness	3.2mm, 4.8mm, 6.3mm (1/8″, 3/16″, 1/4″)	Standard industrial gauges for high-impact zones.

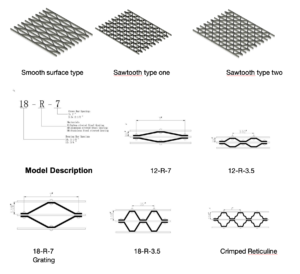

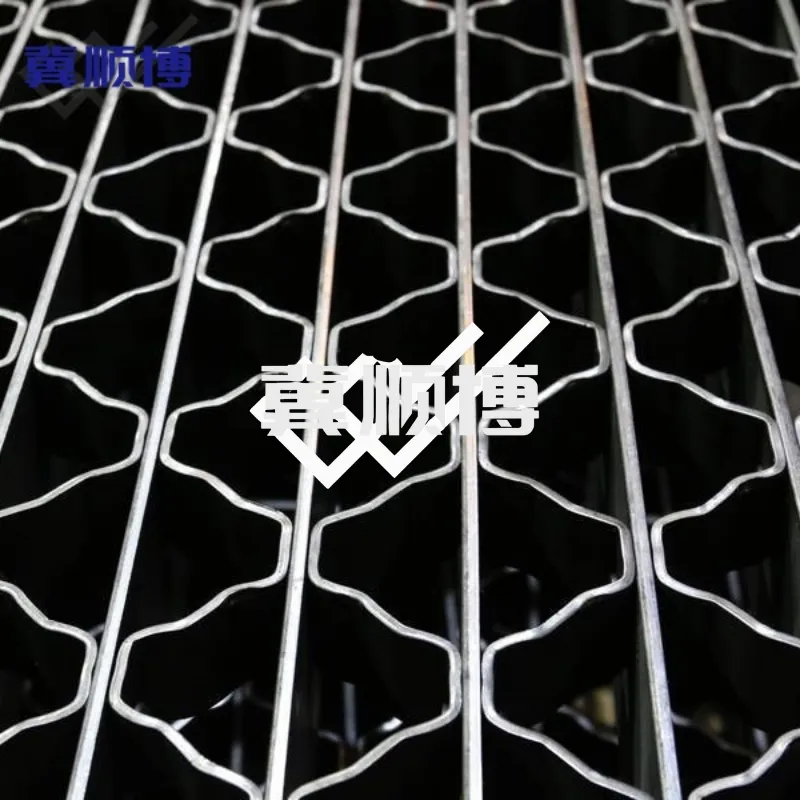

Connecting Member	Reticulated Bar	Crimped “Zig-Zag” Flat Bars	Provides continuous lateral bracing and anti-slip.

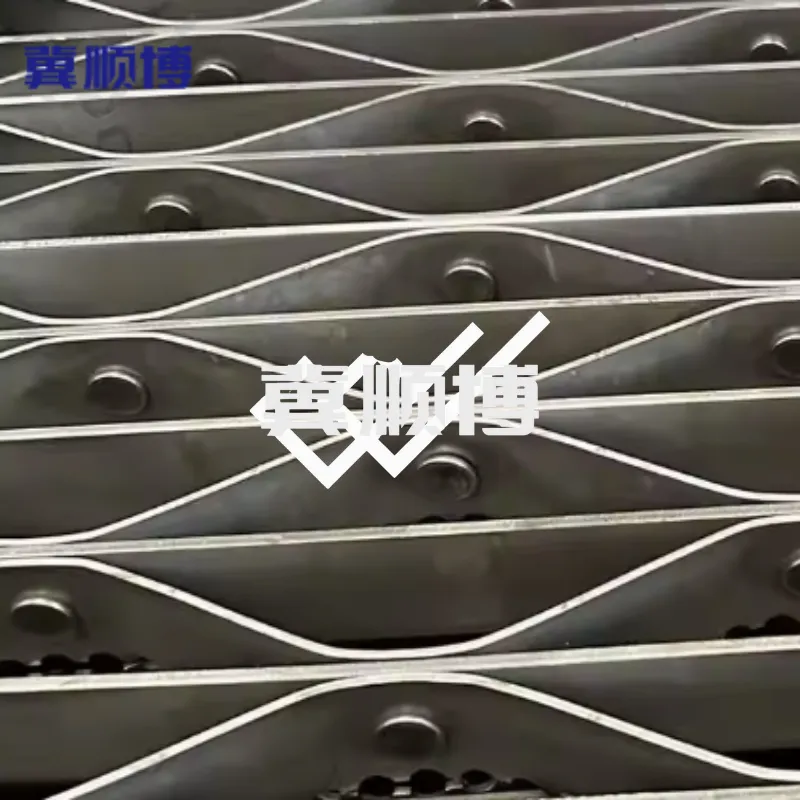

Assembly Tech	Fastening Method	Cold-Pressed Hydraulic Riveting	Permanent mechanical lock; No welding thermal stress.
Rivet Spacing	Longitudinal Pitch	178mm (7″) or 89mm (3.5″)	7″ is standard; 3.5″ is for high-fatigue zones.
Bar Spacing	Center-to-Center	18mm, 30mm, 33mm, 45mm	1-1/8″ (approx. 28.5mm) is the industry benchmark.

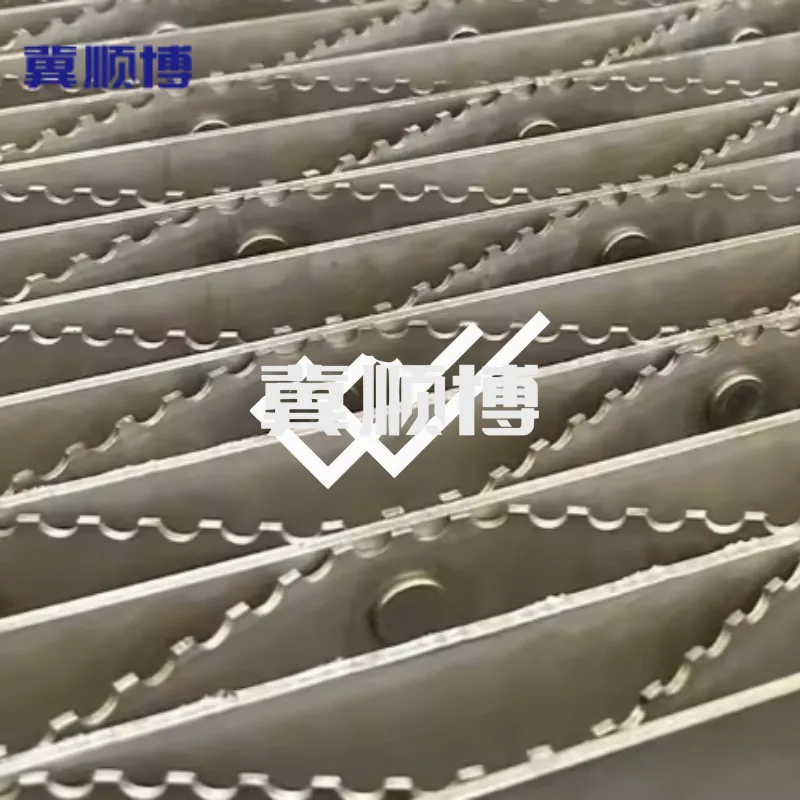

Surface Profile	Friction Type	Plain (Smooth) or Serrated (S)	Serrated Reticulated Bars offer multi-directional grip.
Coating Finish	Protective Layer	HDG (ASTM A123) / Industrial Paint / Mill	Hot-Dip Galvanizing is applied post-fabrication.
Edge Treatment	Banding Type	Flat Banding / Custom Toe-boards	Kick-plates welded to edges/cut-outs upon request.



Engineering Notes:

1.Zero Heat Affected Zone (HAZ): Because the Reticulated Bars are joined via cold riveting, the base metal is never subjected to high temperatures. This preserves the full metallurgical strength and ductility of the carbon steel, preventing the joint brittleness common in welded alternatives.

2.Truss-like Stability: The reticulated bar geometry acts as a continuous lateral brace. This truss-architecture distributes point loads across multiple bearing bars, significantly reducing the risk of bar buckling or tilting under heavy torque.

3.Exceptional Fatigue Life: Riveted connections are designed to absorb and dissipate vibration and dynamic impact energy, making this the premier choice for bridge decks and high-vibration machinery platforms.

3. Product Advantages

1.Superior Mechanical Bonding: Our hydraulic cold-riveting creates a permanent, vibration-proof mechanical lock between the bearing and connecting bars, ensuring the panel remains perfectly flat and stable under extreme stress.

2.Precision CAD Customization: We manufacture directly from your project drawings. Our factory handles complex circular penetrations, fan-shaped layouts, and irregular notches in-house, ensuring a perfect “drop-in” fit.

3.Omni-Directional Traction: The crimped architecture of the Reticulated Bars provides slip resistance from multiple angles, offering a safer walking surface in oily or wet environments.

4.High Lateral Stiffness: The “zig-zag” bracing effect ensures maximum load-bearing efficiency per pound of steel, making it ideal for spans subjected to heavy vehicular traffic.

4. Applications & Scenarios

1.Vehicular Bridge Decks: Engineered to withstand constant impact and dynamic fatigue from heavy truck traffic and expansion joint movement.

2.Power & Mining Platforms: The preferred solution for areas housing high-vibration equipment where welded joints are susceptible to stress-cracking.

3.Irregular Petrochemical Platforms: Custom-fabricated panels designed to fit perfectly around spherical tanks, piping clusters, and structural columns.

4.Safety Walkways: Precision-numbered panels for facilities requiring a dense, high-strength, and comfortable walking surface for personnel.

5. Quality Control (Practical & Reliable)

1.CAD Drawing Alignment Audit: 100% verification of finished panels against pre-production CAD layouts to ensure all notches, dimensions, and ID tags are accurate.

2.Rivet Integrity Inspection: Rigorous testing of rivet heads to ensure full hydraulic compression and zero movement within the mechanical joint.

3.Dimensional Tolerance Check: Ensuring all panels meet tight “Squareness” and “Flatness” tolerances for easy installation on structural frames.

4.Final ID Tracking: Verification that every panel is clearly stamped or tagged with its unique ID number, matching the Master Layout Map provided to the customer.

6. Customization & Engineering Services

1.CAD Layout & Numbering System: We provide a secondary CAD design for your project. Each individual panel is assigned a unique ID number for rapid on-site assembly.

2.“Puzzle-Piece” Installation: Your shipment includes a detailed Layout Map. Workers simply match the ID tags on the panels to the map, eliminating measurement errors and site-cutting.

3.Cut-outs & Optional Kick-plates: We perform all complex shaping and penetrations in-house. Upon customer request, we can weld 100mm-150mm Kick-plates (Toe-boards) around openings to meet site safety regulations.

4.Heavy-Duty Fastening Hardware: We supply compatible saddle clips and fasteners designed specifically for the unique profile of riveted grating systems.

7. FAQ

Q: What exactly is the “Reticulated Bar”?

A: It is the professional engineering term for the crimped “zig-zag” member. It is critical for providing the lateral bracing and load-sharing capabilities that make riveted grating so strong.

Q: Why is “Cold-Riveting” safer than welding for bridges?

A: Welding introduces heat, which can warp the steel and create weak points (HAZ). Cold-riveting maintains the steel’s original strength, allowing it to handle the constant vibration of traffic without cracking.

Q: Can I add kick-plates only to certain sections?

A: Yes. Since we follow your CAD drawings, we can weld kick-plates to specific edges or cut-outs exactly where you need them for safety, helping you optimize your project budget.

Q: How do the ID numbers help my installation crew?

A: It turns the platform into a “ready-to-assemble” kit. Workers don’t have to guess or measure—they just place panel R-01 where the map shows R-01. This saves time and prevents costly mistakes.



In summary, Riveted Steel Bar Grating excels in extreme high-impact and dynamic-load environments such as vehicular bridge decks, mining platforms, petrochemical facilities, and vibration-prone machinery areas. Its cold-riveted truss-like design delivers unmatched durability, lateral stiffness, multi-directional slip resistance, and long-term stability, while factory precision and ID-guided assembly ensure efficient, error-free deployment worldwide.
