Carbon steel – Type I steel grating

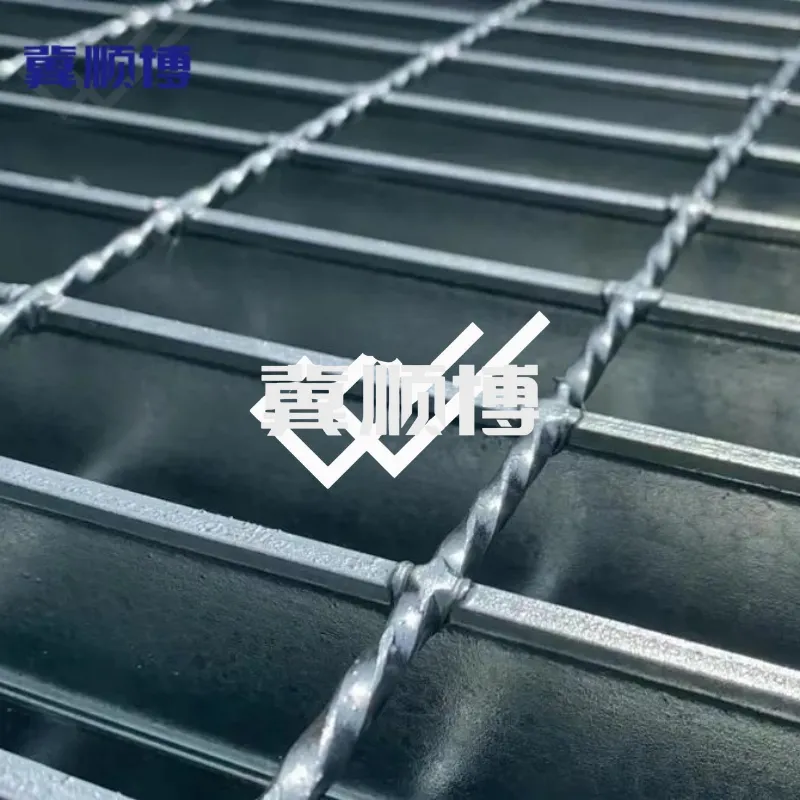

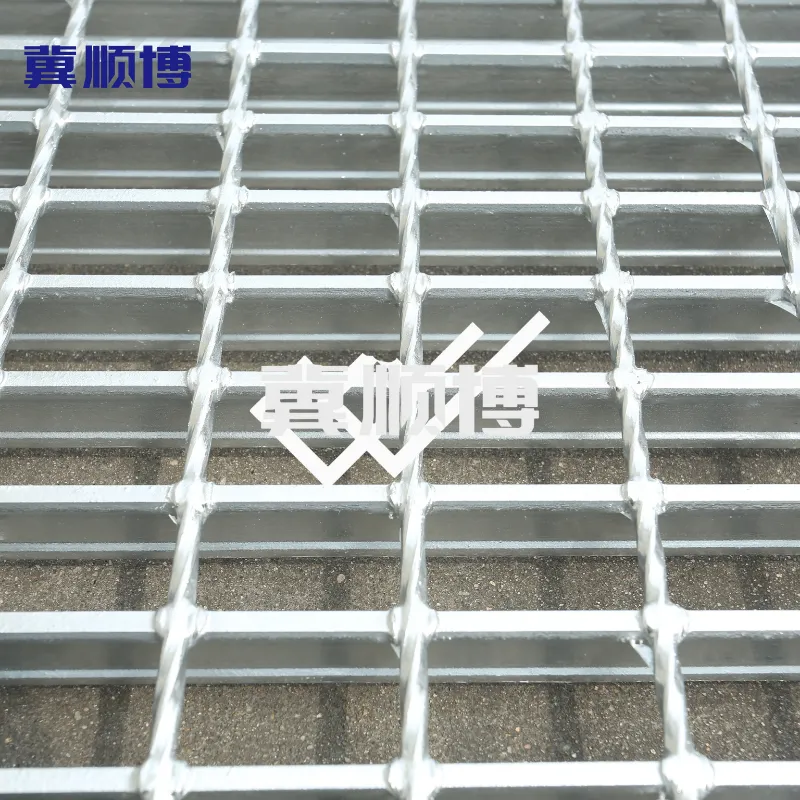

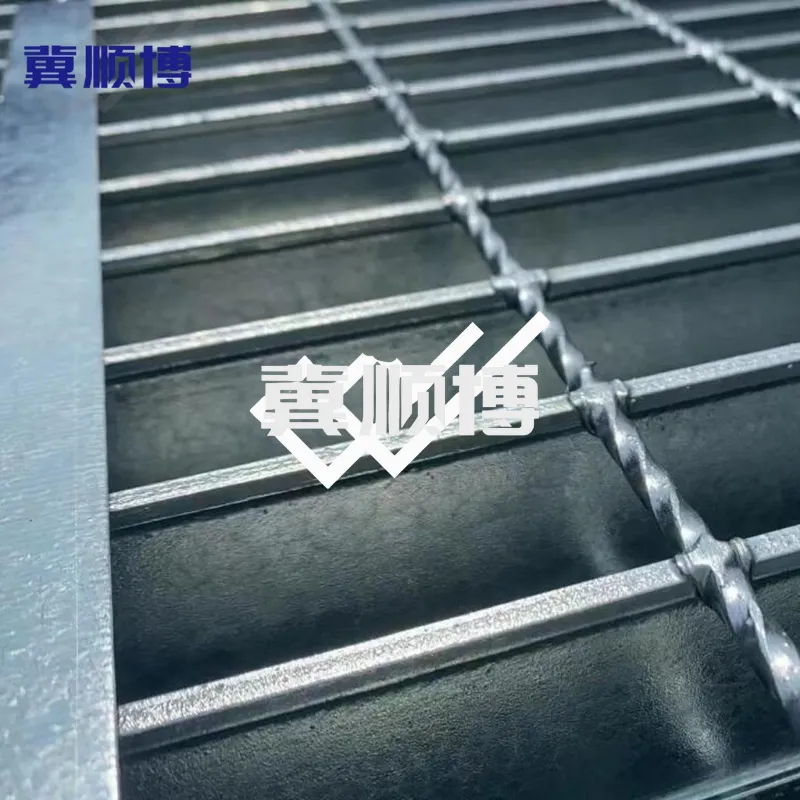

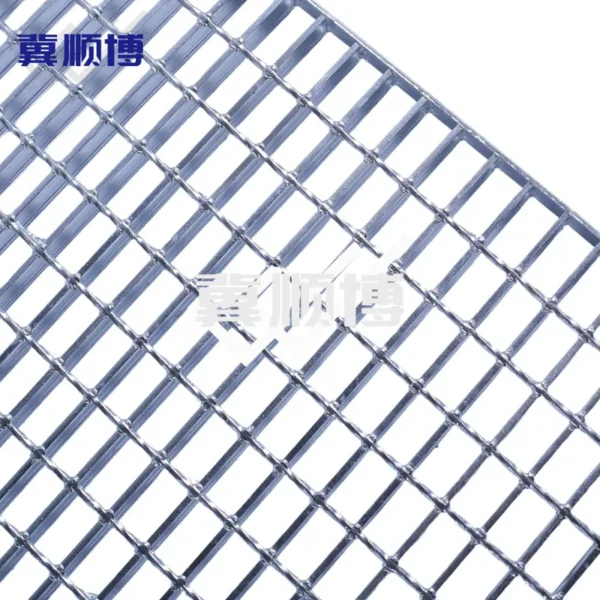

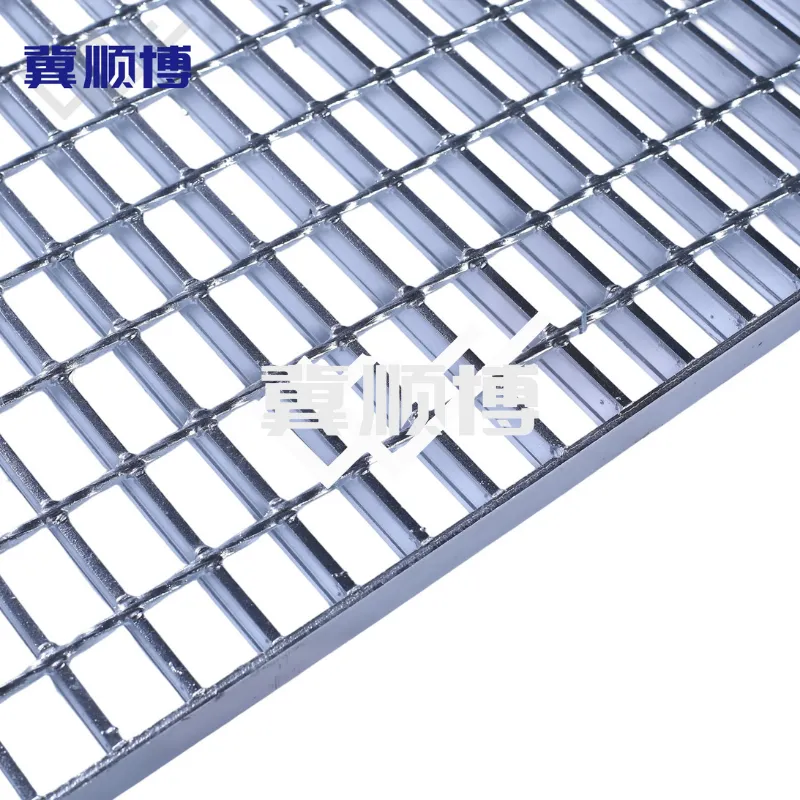

Carbon Steel I-Bar Grating

1. Product Information

I-Bar Grating (Carbon Steel) is an engineered metal flooring solution that utilizes bearing bars with an “I” cross-sectional profile. This specific geometry concentrates steel at the top and bottom flanges where stress is highest, while reducing material in the neutral axis. This results in a panel that provides the stiffness of a rectangular bar but with a 15% to 25% reduction in total weight. It is the professional choice for large-scale industrial platforms where reducing dead load on the primary structure is a priority.

2. Technical Parameters (Industrial Standards)

Feature	Standard Specifications	Technical Notes
Material Grade	Q235B, Q355B (High-Strength), S275JR (EN10025), ASTM A36	High-tensile structural steel for industrial use
Fabrication	Pressure Resistance Welding / Manual Welding	Electro-forged for high efficiency; Manual welding for custom shaping
I-Bar Depths	25mm, 32mm, 38mm, 44mm, 50mm, 65mm	Standard depths for spans ranging from 1.0m to 2.5m
Flange Width (T1)	5.0 mm / 6.3 mm / 7.0 mm	Top surface width provides traction and foot comfort
Web Thickness (T2)	2.3 mm / 3.0 mm / 3.2 mm	Thinner vertical section optimized for weight reduction
Bearing Bar Pitch	30.16mm (1-3/16″), 23.8mm (15/16″)	Compliant with NAAMM 19-W-4 and 15-W-4 standards
Surface Texture	Striated (Built-in Grooves)	Standard anti-slip feature on the I-bar top flange
Custom Options	Serration / Custom Depths	Manual serration available for oily or icy environments
Surface Finish	Hot-Dip Galvanized (ASTM A123)	Provides full metallurgical protection to the I-profile



Note: The I-bar design provides a wider walking surface than standard 3mm rectangular bars, making it safer for pedestrians and small-wheeled equipment.

3. Product Advantages

1.Engineered Weight Savings: Reduces the total structural weight by up to 25%, leading to lower material costs and easier manual handling during installation.

2.High Strength-to-Weight Ratio: Engineered to meet the same deflection standards as heavier rectangular bars by optimizing steel distribution.

3.Improved Pedestrian Safety: The wide top flange (5mm–7mm) offers a more stable and comfortable walking surface, reducing foot fatigue.

4.Enhanced Built-in Traction: The top flange typically features a striated (grooved) surface as a standard, providing reliable slip resistance without extra cost.

4. Core Applications

1.Power & Energy Plants: Maintenance walkways and platforms where the structural weight budget is strictly limited.

2.Oil & Gas Refineries: Long-distance catwalks requiring high corrosion resistance and light-weight panels for offshore assembly.

3.Industrial Mezzanines: Large-scale warehouse flooring that requires high stiffness with reduced material investment.

4.Conveyor Systems: Integrated service paths for heavy-duty material handling in mining or ports.

5. Customization Services

1.Precision Fabrication: Manual cutting and banding to fit irregular equipment shapes and circular column penetrations.

2.Bespoke Mesh Sizes: Ability to manually adjust the bearing bar and cross bar pitch for specialized safety or load requirements.

3.Serrated Top Flange: Optional manual deep-notched serration for maximum slip resistance in extreme environments.

4.Full End-Banding: All panels are manually banded with flat bars to increase lateral stiffness and ensure a professional finish.

6. Quality Control

1.Dimensional Tolerance Audit: Every panel is checked against a 1:1 layout to ensure precision for rapid field installation.

2.Structural Deflection Verification: Testing against NAAMM MBG 531 load tables to ensure the I-bar meets the required engineering stiffness.

3.Galvanizing Thickness Check: Measuring the zinc layer specifically in the recessed web area to ensure uniform protection and a long service life.

7. FAQ

Q: Is I-Bar grating as strong as rectangular bar grating?

A: Yes. When comparing the same depth, an I-bar is designed to meet equivalent load ratings while weighing significantly less.

Q: Does the “I” shape make it harder to install?

A: On the contrary, the 15-25% reduction in weight makes manual handling and positioning much faster for installation crews.

Q: How does the striated surface help with safety?

A: The built-in grooves on the top flange provide consistent multi-directional traction, which is superior to plain smooth bars.

Q: Can I-Bar grating handle forklift traffic?

A: It is primarily designed for high-intensity pedestrian and light maintenance equipment traffic. For heavy vehicle loads, heavy-duty rectangular bars are recommended.

Q: Does the I-shape trap more dirt or debris?

A: No. The vertical web design and large open mesh ensure that debris and liquids fall through as efficiently as standard rectangular grating.

Q: Why is the price per ton sometimes higher for I-Bar?

A: The manufacturing process is more specialized; however, because you use fewer tons of steel for the same area, the total project cost is usually lower.



In summary, Carbon Steel I-Bar Grating excels in weight-sensitive applications such as power plants, oil & gas refineries, industrial mezzanines, and conveyor walkways. Its superior strength-to-weight ratio, enhanced pedestrian comfort, reliable slip resistance, and cost-effective material use ensure safe, durable performance while minimizing installation effort and overall project expenses in large-scale industrial environments.
