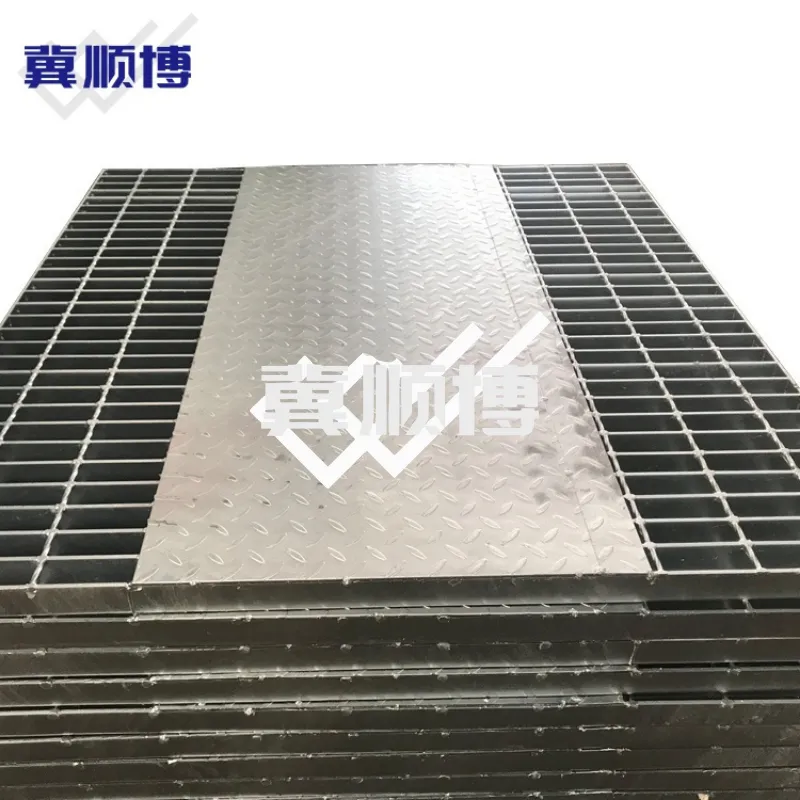

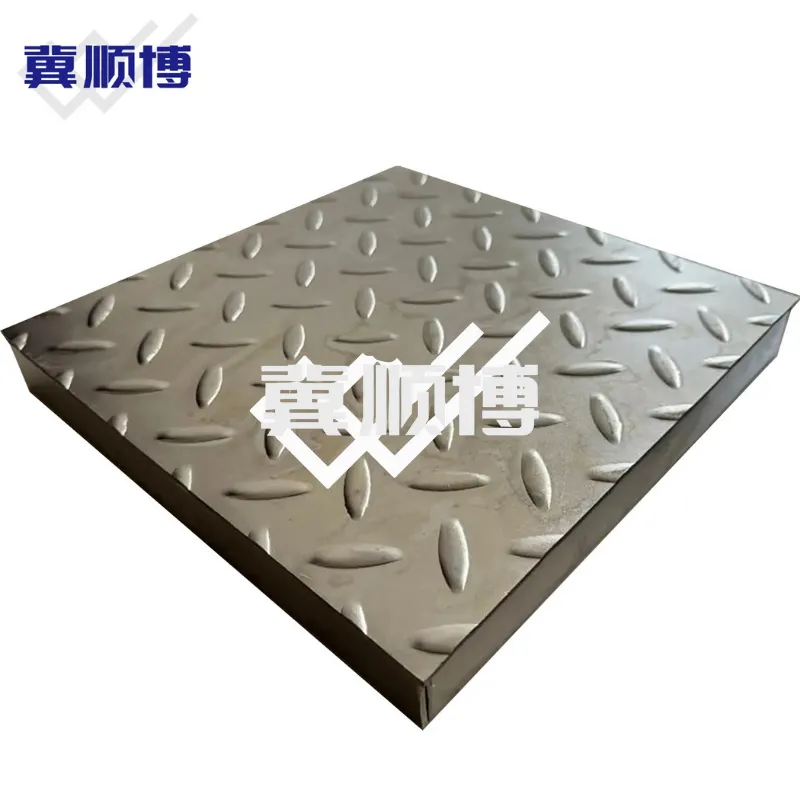

Compound Stainless Steel Grating integrates high-grade stainless steel (304/316) bearing bars (3–12 mm thick, 15–100 mm spacing) with an anti-slip checker plate or mesh overlay and welded cross bars. This composite design provides exceptional corrosion resistance in marine, chemical, and humid environments while supporting pedestrian, forklift, light truck, and heavy industrial loads. Custom panels (up to 3000×6000 mm) feature mechanical polishing, electropolishing, or passivation for hygiene, safety, and durability, with excellent traction and fall-through prevention.
Stainless steel-composite steel grating
1. Product Overview

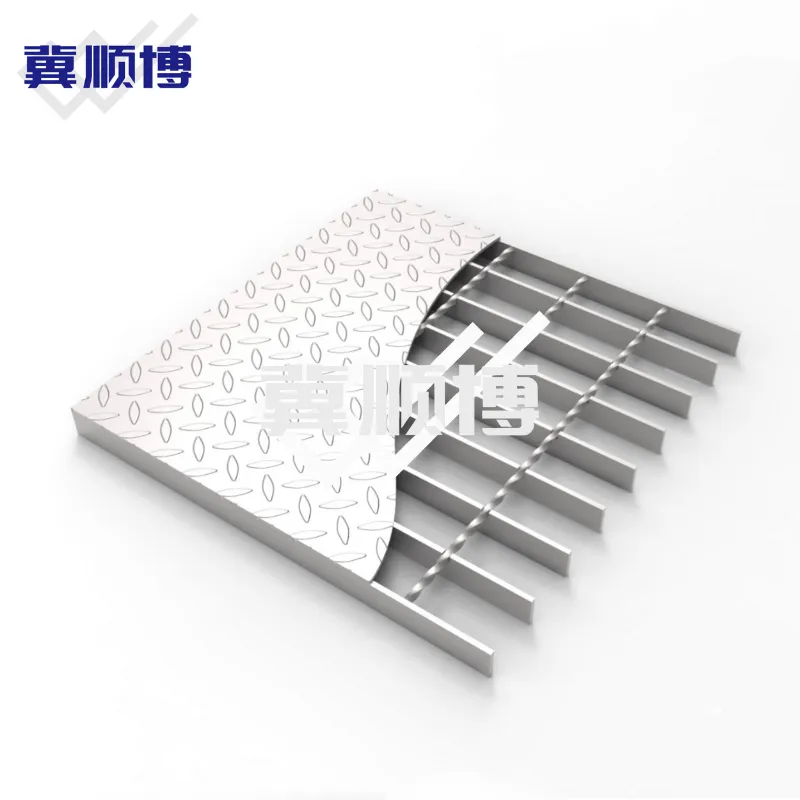

Our Stainless Steel Compound Steel Grating integrates corrosion-resistant stainless steel with a composite overlay, offering both strength and chemical durability. Constructed from 304 or 316 stainless steel bearing bars and cross bars, topped with anti-slip checker plates, this grating is ideal for coastal, chemical, and food processing environments. It safely supports pedestrian traffic, light vehicles, and heavy-duty industrial equipment, providing longevity, safety, and compliance with international hygiene and structural standards.
2. Technical Parameters
| Category | Parameter | Specification / Industry Range | Engineering Notes |
| Material | Steel Grade | Stainless Steel: 201 / 304 / 316 | Offers excellent resistance to corrosion in marine, chemical, or humid environments. |
| Bearing Bars | Thickness | 3 – 12 mm | Customizable thickness for pedestrian, light, or heavy-duty industrial loads. |
| Bearing Bars | Center-to-Center Spacing | 15 – 100 mm | Optimized for span, load distribution, ventilation, and drainage. |
| Cross Bars | Type | 3 – 6 mm Anti-slip checker plate or stainless steel wire mesh | Ensures safety, prevents object fall-through, and maintains rigidity. |
| Dimensions | Width | Custom 300 – 3000 mm | Reduces onsite splicing; suitable for industrial or commercial projects globally. |
| Dimensions | Length | ≤6000 mm | Cut to fit complex or project-specific layouts. |
| Surface Treatment | Process | Mechanical polishing, electropolishing, or passivation | Ensures corrosion resistance, hygienic surface, friction coefficient 0.6 – 0.8. |
| Load Capacity | Reference Load | Pedestrian, light-duty, and heavy-duty industrial equipment | Stainless steel structure distributes weight efficiently; thicker plates and closer spacing recommended for heavy vehicle loads. |
| Standards | Applicable Codes | ANSI/NAAMM MBG 531, ASTM A240/A276, ISO 9001 | Confirms structural integrity and compliance with corrosion-resistant standards. |
| Design Recommendations | Customization | Consult engineers for optimal bar and spacing design | Ensures safe bearing for all intended loads, including forklifts, trolleys, and industrial carts. |
Engineering Notes:
Stainless steel construction prevents chemical corrosion, rust, and saltwater damage. Anti-slip checker plates provide reliable traction in wet or oily conditions. The composite structure allows use in coastal ports, chemical plants, food processing facilities, and warehouses handling heavy-duty vehicles. Custom cuts and shapes can be provided to fit specific architectural or industrial requirements.
3. Product Advantages
1.Corrosion Resistance: 304/316 stainless steel provides superior performance in marine, chemical, or high-humidity environments. Resistant to rust, pitting, and chemical degradation even under continuous industrial traffic.
2.Anti-Slip Safety: Checker plate or stainless steel mesh surfaces enhance grip for both pedestrians and vehicle tires, reducing the likelihood of accidents in wet, oily, or industrial conditions.
3.Protective Design: The composite structure prevents objects from falling through and damaging equipment below. Suitable for warehouses, food processing facilities, chemical plants, and industrial platforms, providing operational safety and minimizing downtime.
4. Applications & Engineering Scenarios
1.Industrial Platforms & Mezzanine Floors: Provides reliable support for workers, forklifts, and service trolleys in chemical, food processing, or high-humidity facilities.
2.Warehouse Loading Platforms: Supports heavy-duty industrial carts and forklifts while maintaining corrosion resistance in warehouses with moisture, salt, or chemical exposure.
3.Equipment Maintenance Walkways: Ensures safe and durable access to critical machinery, HVAC, and utility systems in factories, refineries, and offshore platforms.
4.Factory Access Roads & Loading Bays: Capable of handling heavy vehicle traffic without compromising corrosion resistance or structural stability.
5.Logistics Centers, Ports & Coastal Facilities: Ideal for international shipping hubs, container yards, and seaside docks where vehicles and pedestrian traffic coexist under corrosive environments.
5. Quality Control & Performance
1.Material Traceability: Certification of stainless steel grade, chemical composition, and mechanical properties.
2.Load Testing & Deflection Verification: Panels are evaluated for both uniform and concentrated loads, including heavy-duty vehicle simulations.
3.Dimensional Inspection: Ensures precise bar spacing, flatness, and alignment to reduce installation issues and guarantee safety.
4.Surface Protection Verification: Confirms passivation, polishing, or electropolishing quality for chemical and coastal resistance.
5.Reliability under Harsh Conditions: Each panel is checked for welding quality, composite integrity, and suitability for industrial, commercial, and coastal applications.
6. Factory Customization & Engineering Services (Expanded)
1.Panel Size & Shape Customization: Designed for irregular layouts or tight spaces in industrial or commercial projects.
2.Adjustable Bearing Bars & Spacing: Optimized for specific load types, environmental conditions, and safety requirements.
3.Surface Finishing Options: Mechanical polishing, electropolishing, or passivation tailored to corrosive, wet, or food-safe environments.
4.Engineering Consultation & Specialized Design: Supports installation guidance, complex cutouts, and integration with existing structures.
5.Project-Specific Recommendations: Ensures panels meet load-bearing, traffic, and environmental requirements globally.
7. FAQ
1.Can stainless steel compound grating withstand coastal environments in Southeast Asia?
Yes, 316 stainless steel with anti-slip plates provides high resistance to saltwater and humidity for long-term use.
2.Is it suitable for heavy industrial vehicles in North American warehouses?
Yes, with thicker bearing bars and optimized spacing, the composite grating supports forklifts and light trucks safely.
3.What panel sizes are available for international port facilities?
Custom widths up to 3000 mm and lengths up to 6000 mm; suitable for complex layouts and dock installations.
4.Can the grating be customized for chemical plants in Europe?
Yes, stainless steel grade, spacing, and surface treatment can be tailored for local chemical exposure and operational loads.
5.How quickly can these gratings be delivered worldwide?
We coordinate international logistics to deliver panels to factories, ports, or warehouses efficiently and safely.
In summary, Compound Stainless Steel Grating excels in demanding coastal, chemical, food processing, and logistics settings, combining unmatched corrosion resistance, anti-slip safety, and robust load capacity. Its customizable composite structure ensures reliable performance, hygienic surfaces, debris protection, and long-term durability for industrial platforms, warehouses, ports, maintenance walkways, and loading bays worldwide.
