Irregular Steel Grating – Stainless Steel Version

1. Product Overview

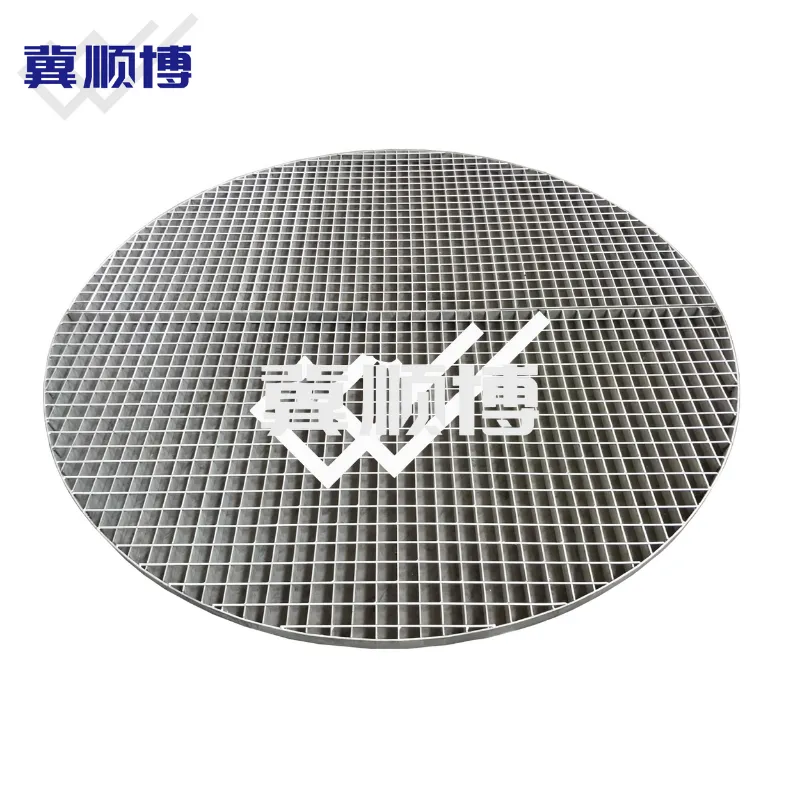

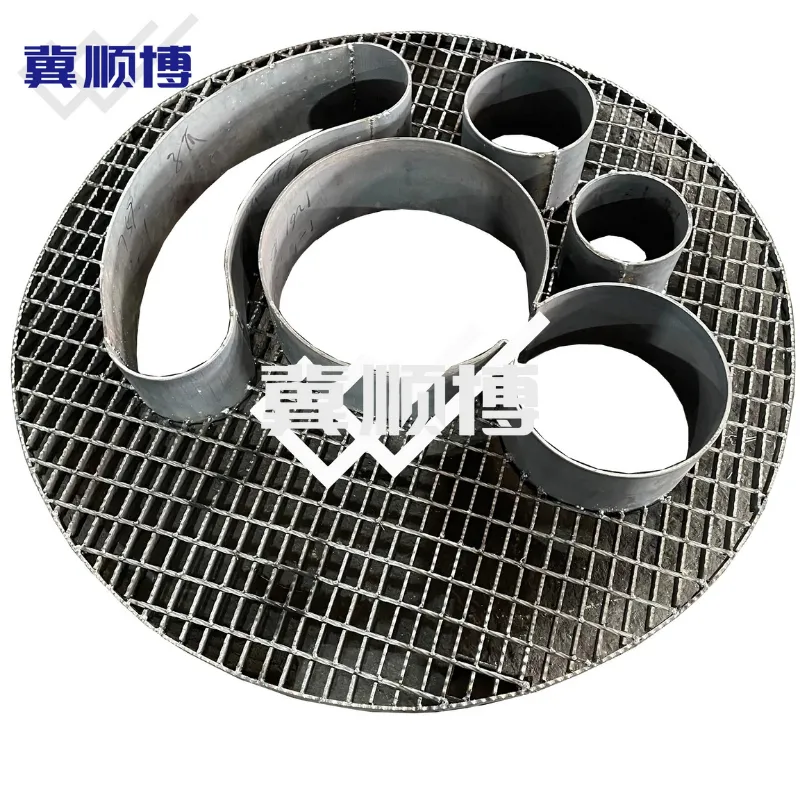

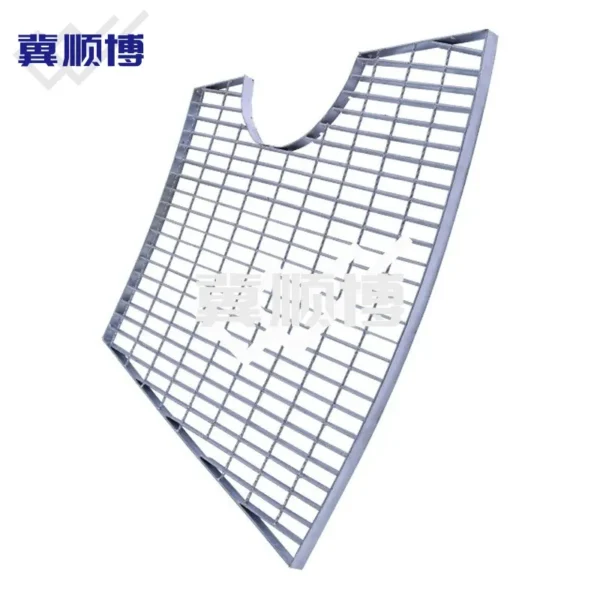

Irregular Steel Grating is a fully customized stainless steel grating solution designed for complex architectural or industrial layouts. Panels can be semicircular, circular, trapezoidal, fan-shaped, or other irregular geometries, fabricated precisely according to client drawings or on-site measurements. Manufacturing processes include cutting, drilling, welding, and edge finishing to ensure structural integrity, corrosion resistance, and seamless integration into irregular walkways, platforms, mezzanines, or maintenance areas. Its stainless steel construction allows usage in highly corrosive, coastal, marine, or high-humidity environments worldwide.

2. Technical Parameters









Category	Parameter	Specification / Industry Range	Engineering Notes
Material	Steel Grade	Stainless Steel: 201 / 304 / 316	Provides excellent corrosion resistance for indoor, outdoor, marine, or chemical exposure.
Bearing Bars	Thickness	3 – 8 mm	Thickness customizable to match expected load.
Bearing Bars	Center-to-Center Spacing	15 – 100 mm	Optimized for structural stability, load distribution, ventilation, and hygiene requirements.
Cross Bars	Type / Size	6 – 20 mm Anti-slip checker plate or stainless steel wire mesh	High friction coefficient; prevents object fall-through and ensures slip resistance in wet or oily environments.
Dimensions	Width	Custom 300 – 3000 mm	Reduces on-site splicing and ensures efficient installation for irregular layouts.
Dimensions	Length	≤6000 mm	Can be cut or shaped for curved, angled, or complex project designs.
Surface Treatment	Process	Mechanical polishing, electropolishing, passivation	Ensures corrosion resistance, smooth aesthetic finish, and high friction coefficient (0.6 – 0.8).
Load Capacity	Reference Load	Pedestrian, forklifts, light and medium industrial vehicles	Stainless steel maintains structural integrity under heavy-duty conditions; custom bar thickness and spacing ensure safety.
Standards	Applicable Codes	ANSI/NAAMM MBG 531, ASTM A240 / A276, ISO 9001	Ensures durability, corrosion protection, and compliance with international standards.
Design Recommendations	Customization	Consult engineers for optimal bar configuration, spacing, and panel shape	Guarantees safe load-bearing for all pedestrian, forklift, and industrial vehicle applications.



Engineering Notes:
Stainless steel construction resists corrosion, chemical exposure, saltwater, and high-humidity environments. Anti-slip checker plates provide safe footing under wet or oily conditions. Irregular shapes retain full structural integrity when engineered with proper bearing bar thickness and spacing. Hot-dip passivation or polishing enhances corrosion resistance and aesthetics. Custom cutting, bending, and edge reinforcement are available for complex site layouts, curved or angled surfaces. Panels can safely support forklifts, light industrial vehicles, and pedestrian traffic globally.

3. Product Advantages

1.Easy Installation: Eliminates on-site cutting for irregular panels, reducing labor and simplifying construction processes.

2.Structural Stability: High-quality stainless steel with precise cutting, welding, and edge reinforcement ensures excellent load-bearing performance even in complex or curved configurations.

3.Design Flexibility: Fully customizable in shape, size, and finish to meet architectural, industrial, and commercial requirements worldwide.

4.Safety & Anti-Slip: Twisted square or flat cross bars with checker plate provide slip resistance under wet, oily, or outdoor conditions.

5.Durability & Corrosion Resistance: Stainless steel panels resist rust, chemical exposure, and marine environments, suitable for global deployment.

4. Applications & Engineering Scenarios

1.Industrial Platforms & Mezzanines: Custom-shaped walkways and elevated platforms in factories, refineries, and chemical plants.

2.Warehouse Loading Platforms: Irregular layouts for forklifts, light and medium industrial vehicles, and pedestrian traffic.

3.Maintenance Walkways & Equipment Access: Access corridors around complex machinery, tanks, or process equipment.

4.Architectural & Commercial Spaces: Staircases, atriums, and public areas requiring aesthetic, irregular panel designs.

5.Ports, Logistics Centers & Outdoor Industrial Sites: Resistant to corrosion, UV, and harsh environmental conditions, suitable for pedestrian and vehicle traffic.

5. Quality Control & Performance

1.Material Traceability: Full documentation of stainless steel grade, mechanical properties, and compliance certificates.

2.Load & Deflection Testing: Simulates pedestrian and vehicle traffic, including forklifts and light industrial loads.

3.Corrosion Protection Verification: Ensures surface treatment meets global project and environmental standards.

4.Dimensional Accuracy: Cutting, welding, and edge finishing checked to maintain structural integrity and precise fit for irregular designs.

5.Global Compliance: Designed and manufactured to meet international engineering and safety standards.

6. Factory Customization & Engineering Services

1.Custom Shapes & Sizes: Fan-shaped, semicircular, trapezoidal, circular, or fully unique panels for complex layouts.

2.Optimized Bearing Bar & Spacing: Engineers adjust bar thickness and spacing to ensure load-bearing for pedestrians and vehicles.

3.Surface Treatments: Electropolishing, passivation, or mechanical polishing for corrosion resistance and aesthetic finish.

4.Engineering Consultation: On-site layout guidance, cutting, bending, and drilling for precise installation.

5.Project-Specific Recommendations: Panels engineered for safe pedestrian, forklift, or light vehicle load while fitting complex site geometries.



7. FAQ

Q: What is the minimum order for Irregular Steel Grating?
A:We accept flexible quantities for small or large industrial, commercial, and architectural projects worldwide.

Q: Can these panels support forklifts and light or medium industrial vehicles?
A:Yes, stainless steel panels are engineered to support pedestrian traffic, forklifts, and medium-duty industrial vehicles in global installations.

Q: Are they suitable for outdoor, marine, or chemical plant environments?
A:Yes, the 304 or 316 stainless steel construction with passivation or electropolishing protects against corrosion in harsh environments worldwide.

Q: Can panels be fully customized for irregular or curved layouts?
A:Absolutely. Panels can be cut, bent, drilled, and reinforced to fit any irregular site layout, curve, or angle, according to global project requirements.

Q: Do you provide installation guidance for international projects?
A:Yes, our engineering team provides detailed installation instructions to ensure safe deployment and compliance with load requirements across all project sites globally.



In summary, Irregular Stainless Steel Grating offers unmatched design flexibility and durability for complex layouts in chemical plants, ports, warehouses, mezzanines, and architectural spaces. Its superior corrosion resistance, custom shapes, and engineered safety ensure reliable performance and easy installation in harsh, corrosive environments worldwide.
