Light-Duty Stainless Steel Grating is a corrosion-resistant, hygienic flooring solution made from AISI 304, 304L, 316, or 316L alloys. It features welded construction with rectangular or serrated bearing bars (20–40 mm deep, 3–5 mm thick) and twisted square or round cross bars (spaced 50–120 mm), supporting 2–15 kN/m² for pedestrian and light equipment traffic. Panels (up to 3000×6000 mm) offer mill, brushed, polished, or electro-polished finishes for enhanced durability, easy cleaning, and slip resistance in wet or chemical environments.

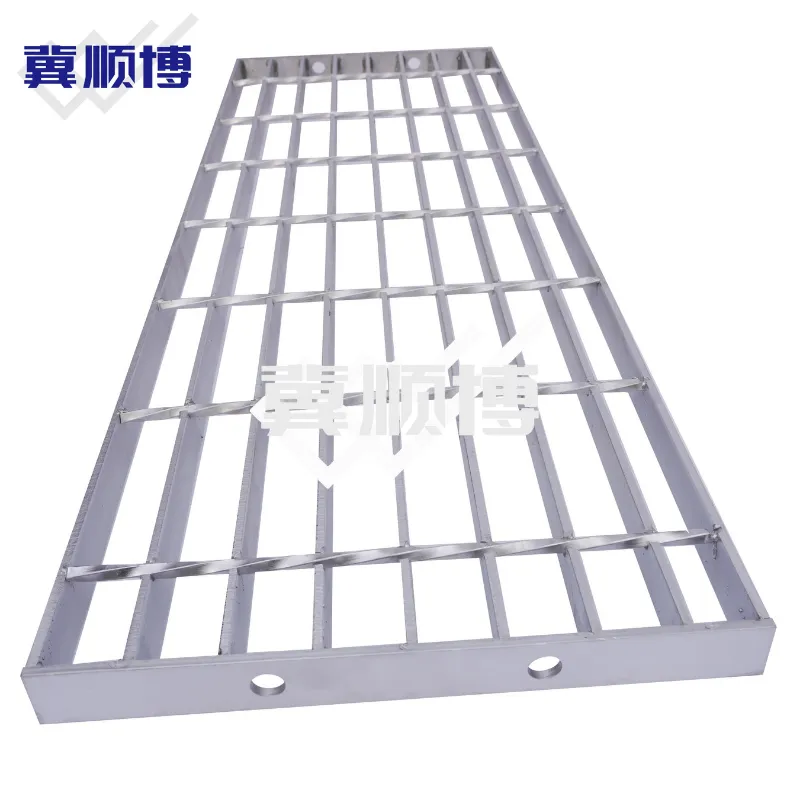

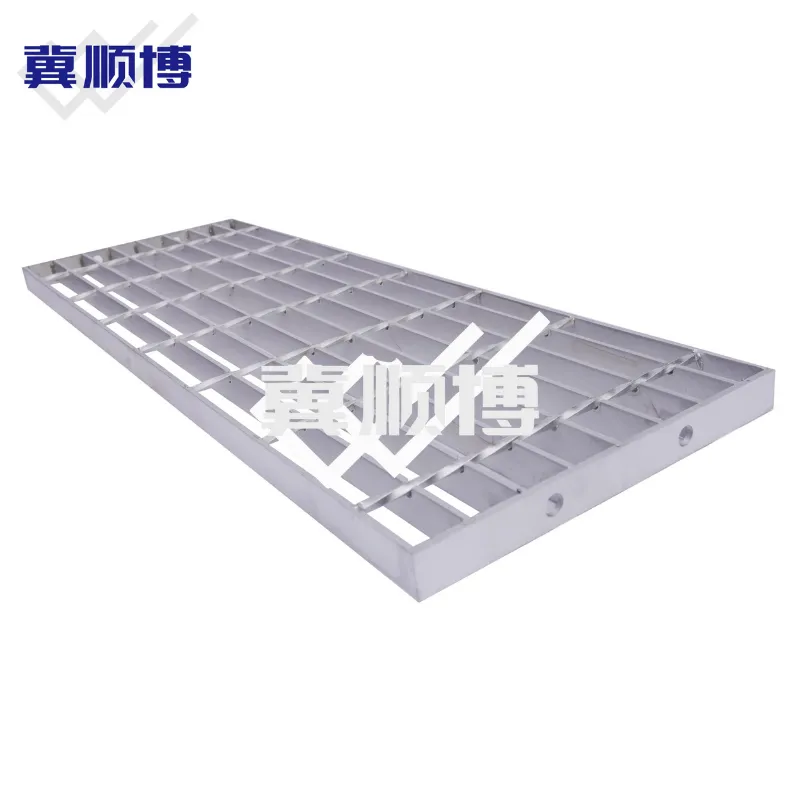

Stainless steel – Lightweight steel grating

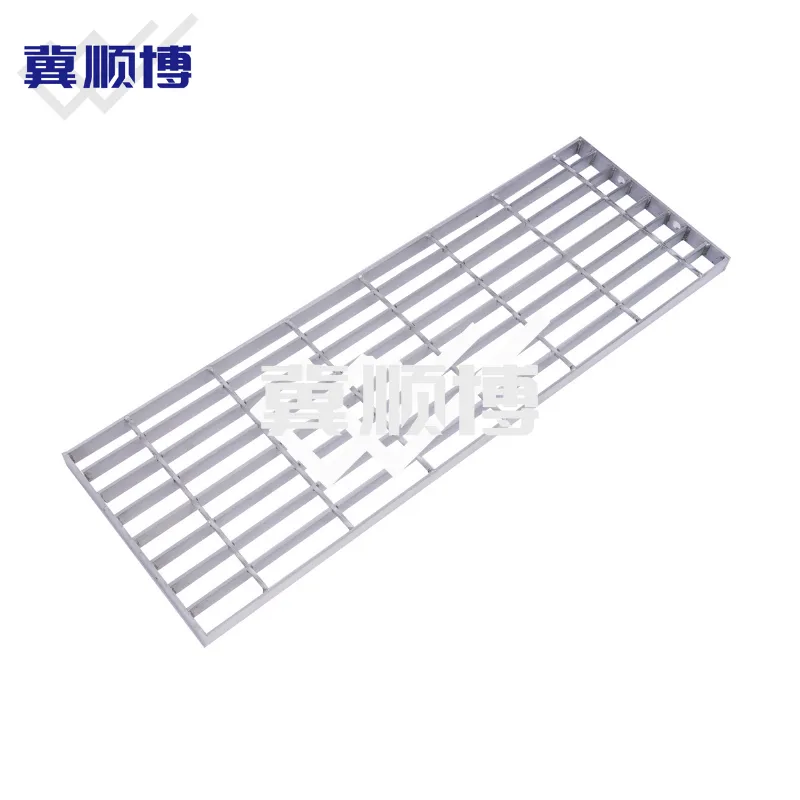

Light-Duty Stainless Steel Grating
1. Product Overview
Light-duty stainless steel grating combines corrosion resistance with light structural load capacity. Constructed from AISI 304 or 316/316L alloys, welded into an open mesh configuration, it is ideal for pedestrian walkways, light equipment platforms, chemical or food processing areas, and offshore access zones. Panels resist corrosion, allow drainage, and maintain hygiene while remaining structurally stable for light-duty traffic.
2. Technical Parameters
| Category | Parameter | Specification / Industry Range | Engineering Notes |
| Material | Steel Grade | AISI 201 / 304 / 304L / 316 / 316L | Corrosion-resistant grades for chemical, marine, or food applications |
| Manufacturing | Production Method | Electric Resistance Welded / Manual Welded | Manual welding for heavy-duty or custom panels ensures integrity in corrosive areas |
| Bearing Bars | Bar Type | Rectangular / Serrated / I Bar | Serrated bars recommended for slip resistance in wet or food-processing zones |
| Depth | 20 – 40 mm | Selected for pedestrian/light equipment traffic | |
| Thickness | 3 – 5 mm | Thicker bars increase rigidity for load distribution | |
| Bar Spacing (C/C) | 25, 30, 38, 40, 50, 60 mm（or custom） | Final spacing per project-approved drawings | |

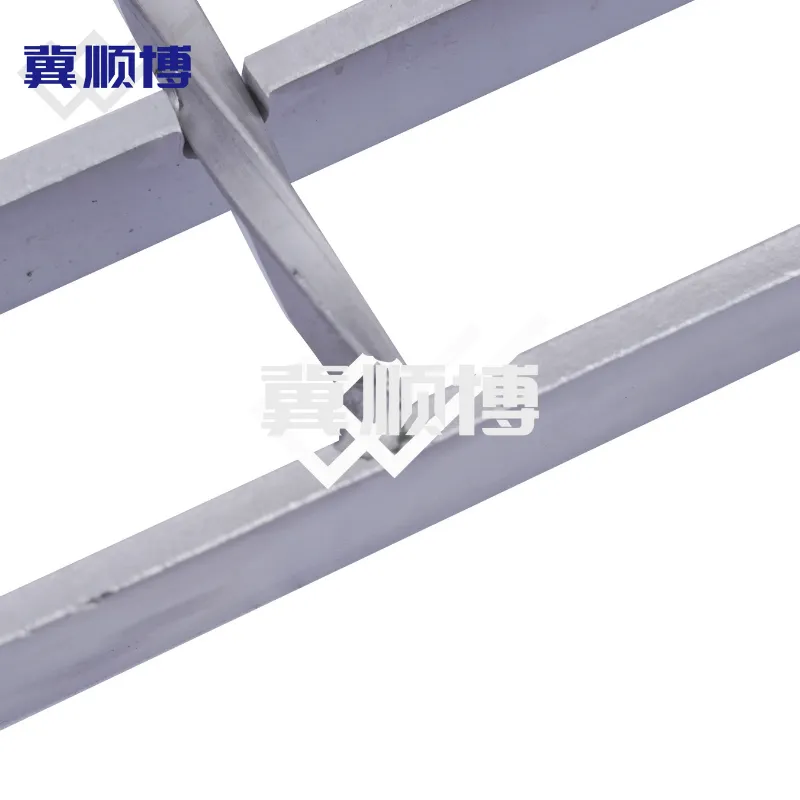

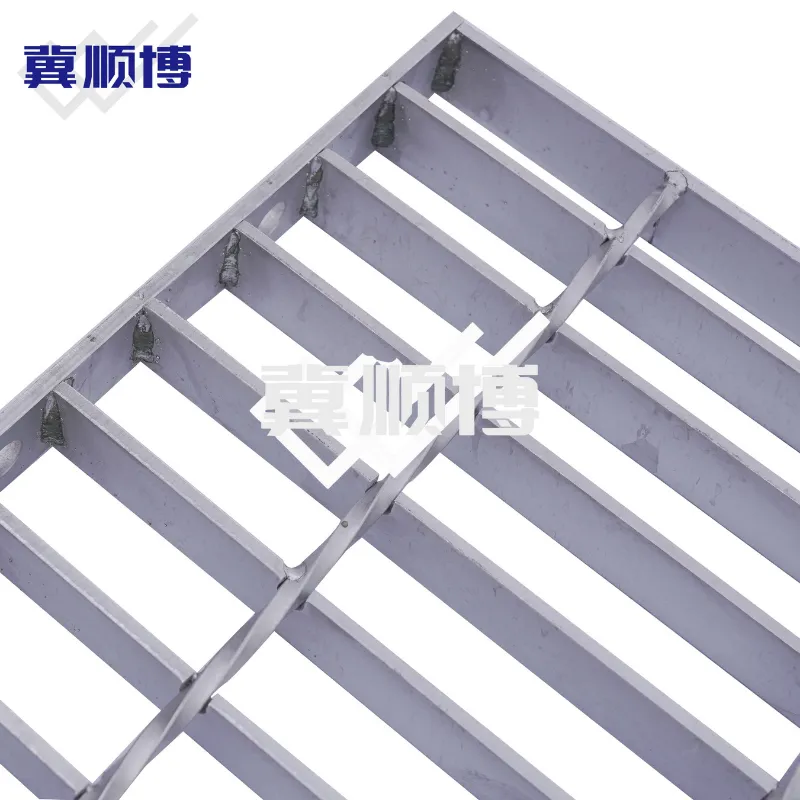

| Cross Bars | Bar Type | Twisted Square / Round / Flat | Twisted square enhances drainage and structural stability |
| Bar Size | 6 – 10 mm | Standard for light load distribution and safety | |
| Bar Spacing | 50, 60, 76, 100, 101.6, 120 mm（or custom） | Selected according to open area requirements | |
| Panel Size | Width | 300 – 3000 mm | Custom widths per project |
| Length | ≤6000 mm | Panels can be notched or cut for piping or platform integration | |
| Structural | Design Load Reference | 2 – 15 kN/m² | Pedestrian and light equipment; span/load tables guide specification |
| Deflection Limit | L/200 – L/400 | Standard limits for safety and rigidity | |
| Surface | Finish Options | Mill / Brushed / Polished / Electro-Polished | Finish ensures corrosion resistance, hygiene, or aesthetics |
| Standards | Applicable Codes | ANSI/NAAMM MBG531, ASTM A240 / A580, EN 10088, ISO 9001, OSHA | Ensures corrosion resistance, load capacity, and structural safety |
Engineering Notes:
- Bearing bar and cross bar configuration is guideline; final fabrication follows approved project drawings.
- Mechanical polishing removes weld heat-affected zones, ensuring long-term corrosion resistance.
- Panel dimensions and mesh sizes can be customized for pedestrian/light machinery access.
- Finish selection depends on environment (chemical exposure, hygiene, aesthetics).
3. Product Advantages
- High Corrosion Resistance:Stainless steel resists rust, acids, and saltwater exposure.
- Sanitary Surface:Polished panels prevent bacterial accumulation in food and pharma environments.
- Lightweight & Easy Installation: Open mesh design reduces dead weight while providing adequate rigidity.
- Drainage & Ventilation:Allows water, debris, and air to pass through easily.
- Customizable: Cut, notched, or edge-banded for platforms, walkways, and stairs.
4. Applications & Engineering Scenarios
- Water treatment and chemical plants: pedestrian walkways and maintenance platforms.
- Food & beverage processing: floors, drainage, and light transport paths.
- Offshore and marine platforms: helidecks, docks, and elevated walkways.
- Industrial & commercial buildings: stair treads, catwalks, and light-duty mezzanines.
5. Industry Applications
- Chemical & Petrochemical: Corrosive environment access walkways.
- Food & Beverage: Hygiene-critical drainage areas and light transport zones.
- Offshore & Marine: Saltwater-exposed platforms, helidecks, and docking areas.
- Light Infrastructure: Pedestrian walkways, platforms, and stairways.
6. Quality Control & Performance
- Load Verification:Panels tested against span and pedestrian/light equipment load tables.
- Dimensional Accuracy: Ensures flatness and flush installation.
- Weld Integrity: 100% inspection to confirm all joints are defect-free.
- Corrosion Protection:Finish and polish thickness verified for long-term durability.
7. Factory Customization & Engineering Services
- Custom Cuts & Notches:For stair treads, piping, or platform integration.
- Engineering Consultation:Optimized bar size and spacing per expected pedestrian or light equipment load.
- Edge & Clip Options:Optional reinforced banding or installation clips for higher traffic safety.
8. FAQ
Q: Is 316L necessary for all outdoor applications?
A: 316L is recommended for areas within 5 km of the sea; 304 is typically sufficient for inland chemical or light-duty industrial applications.
Q: Can light-duty stainless steel panels handle light equipment carts?
A: Yes, bearing bar thickness and spacing are designed to meet pedestrian and light equipment load requirements while ensuring deflection safety.
In summary, Light-Duty Stainless Steel Grating provides reliable, low-maintenance performance in corrosive and hygiene-critical settings such as food processing, chemical plants, water treatment facilities, offshore platforms, and light industrial walkways. Its lightweight open-grid design ensures excellent drainage, ventilation, and safety while customizable cuts and finishes meet precise project needs with long-term corrosion resistance.
