Dense Steel Grating (Stainless Steel) is a high-safety, corrosion-resistant flooring solution made from premium stainless steel (201/304/316). It features closely spaced bearing bars (≤25 mm, typically ~17.5 mm or ~20.6 mm) with 3–8 mm thickness, paired with anti-slip checker plate or wire mesh cross bars. This dense design prevents small object drop-through, meets high heel/ball-proof standards, and supports pedestrian to light/medium vehicle loads. Panels (up to 3000×6000 mm) are custom-shaped, mechanically polished, electropolished, or passivated for superior hygiene and durability in harsh environments.
Stainless steel – perforated steel grating
1. Product Overview
Dense Steel Grating is a high-performance stainless steel grating engineered with closely spaced openings to prevent object drop-through while offering excellent corrosion resistance and durability. Designed for pedestrian walkways, industrial platforms, and coastal or chemical environments, panels can be fabricated in any custom shape to meet specific project drawings or site requirements. This grating combines high safety, hygiene suitability, and load-bearing performance for industrial, commercial, and public infrastructure applications worldwide.
2. Technical Parameters
| Category | Parameter | Specification / Industry Range | Engineering Notes |
| Material | Steel Grade | Stainless Steel: 201 / 304 / 316 | Superior corrosion resistance in marine, chemical, and high-humidity environments. |
| Bearing Bars | Thickness | 3 – 8 mm | Adjustable to project load requirements. Thicker bars improve load-bearing and reduce vibration. |
| Bearing Bars | Center-to-Center Spacing | 11/16″ (~17.5 mm), 13/16″ (~20.6 mm), Customized ≤ 25 mm | Dense spacing ideal for preventing object drop-through and meeting walk safety standards. |
| Cross Bars | Type | 3 – 6 mm Anti-slip checker plate / stainless steel wire mesh | Provides high friction and prevents object fall-through. |
| Dimensions | Width | Custom 500 – 3000 mm | Reduces field splicing and improves installation efficiency. |
| Dimensions | Length | ≤6000 mm | Custom lengths for irregular and curved layouts. |
| Surface Treatment | Process | Mechanical polishing, electropolishing, passivation | Enhances corrosion resistance, surface finish, and hygiene standards. |
| Load Capacity | Reference Load | Pedestrian, light to medium vehicle traffic | Dense steel structure balances safety and load performance for industrial and public spaces. |
| Standards | Applicable Codes | ANSI/NAAMM MBG 531, ASTM A240/A276, ISO 9001 | Ensures corrosion protection, structural integrity, and material quality. |
| Design Recommendations | Customization | Consult engineers for spacing, bar thickness, and panel shape | Ensures safe performance under global operating conditions. |
Engineering Notes:
Dense stainless steel grating prevents small objects from falling while providing high friction under wet or oily conditions. With proper grading and spacing, the grating meets international standards for pedestrian safety (high heel proof) and industrial load requirements. Surface finishes such as electropolishing and passivation further enhance corrosion resistance in advanced chemical, marine, and high-humidity applications. Custom cuts, shapes, and edge finishing ensure flawless integration into complex industrial and architectural layouts.
3. Product Advantages
1.Superior Corrosion Resistance: Stainless steel 304/316 withstands harsh environments including marine, coastal, and chemical exposures.
2.High Safety Mesh: Fine spacing prevents object drop-through and meets stringent pedestrian safety standards in public areas.
3.Hygienic & Cleanable Surface: Electropolished or passivated finish is ideal for food processing, pharmaceutical, and wash-down environments.
4.Design Flexibility: Fully customizable shapes and sizes for irregular layouts, stair landings, platforms, and architectural features.
5.Long-Term Durability: Stainless steel ensures resistance to rust, pitting, and long-term wear in demanding conditions.
4. Applications & Engineering Scenarios

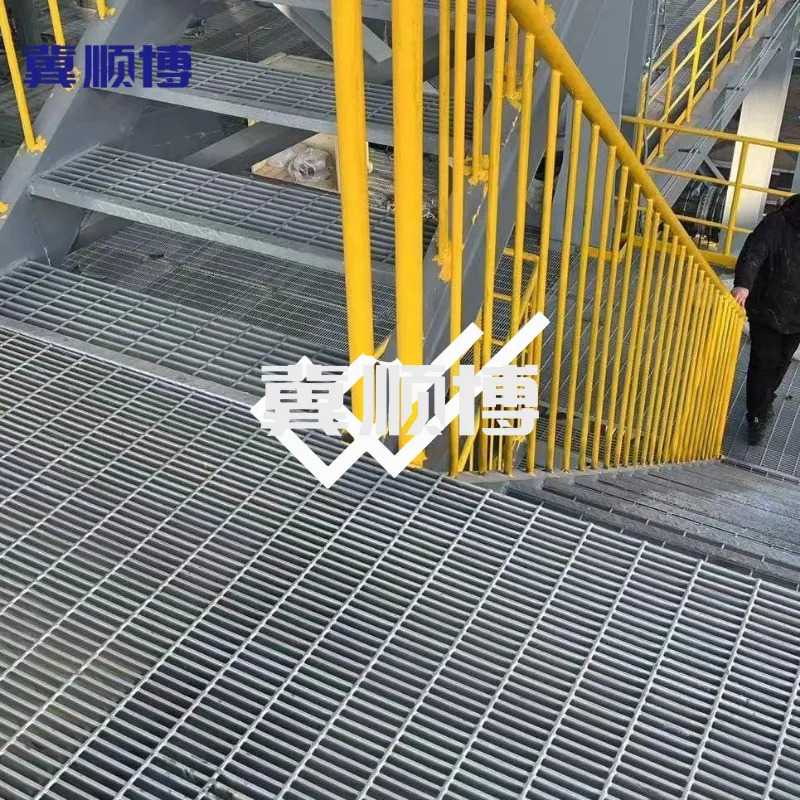

1.Industrial Platforms & Mezzanines: Safe access in factories, laboratories, and clean processing environments.
2.Warehouse & Logistics Centers: Supports pedestrian and light vehicle traffic with dense object-proof surface.
3.Equipment Maintenance Walkways: Ideal for chemical plants, food facilities, and high-clean environments.
4.Architectural & Public Spaces: Plaza walkways, elevated pedestrian zones, and stadium concourses requiring high safety.
5.Ports, Coastal, & Marine Facilities: Reliable performance under saltwater exposure and heavy pedestrian loads.
5. Quality Control & Performance
1.Material traceability with full MTR documentation.
2.Dimensional accuracy per ANSI/NAAMM MBG 531.
3.Corrosion resistance testing for marine and chemical environments.
4.Load and deflection testing to ensure safety for walkways and light vehicle traffic.
6. Factory Customization & Engineering Services

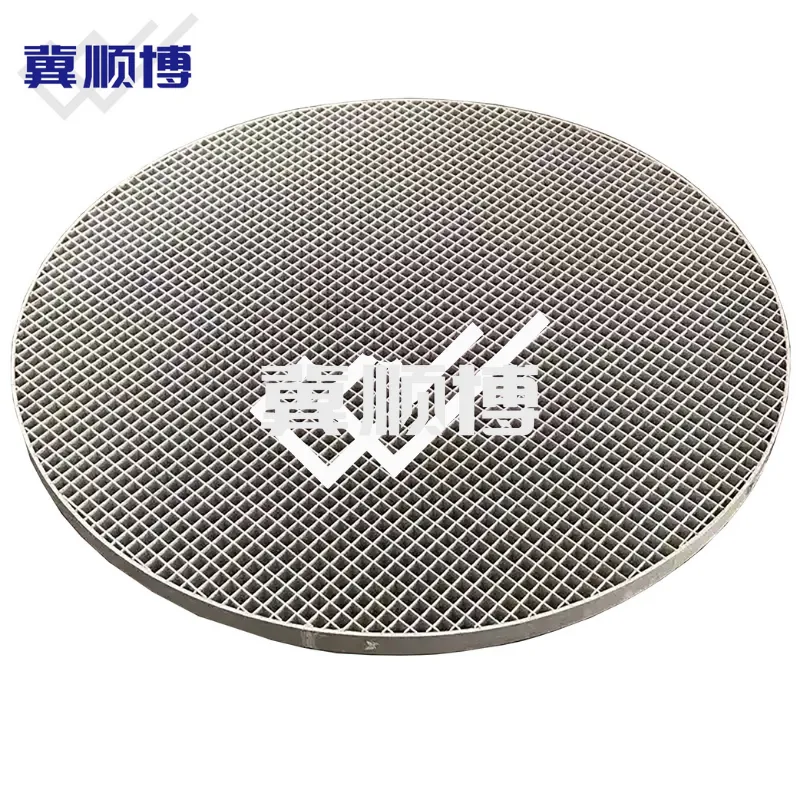

1.Custom shapes including fan-shaped, semicircular, trapezoidal, or project-specific panels.
2.Precision cutting, electropolishing, passivation, and edge finishing.
3.Design consultation for bar spacing, thickness, and panel layout.
4.Installation guidance for global project sites and environmental conditions.
7. FAQ
Q1: Are dense steel gratings suitable for coastal and marine environments?
A1: Yes. Stainless steel 316 with electropolishing and passivation provides excellent corrosion resistance in marine, coastal, and humid regions globally.
Q2: Can these gratings support forklifts or vehicle traffic?
A2: Yes. With appropriate bar thickness and spacing, dense steel gratings support pedestrian, forklift, and light industrial vehicle traffic in warehouses and industrial sites.
Q3: Can panels be made in custom shapes for irregular architectural layouts?
A3: Absolutely. We produce semicircular, trapezoidal, and fully customized panel shapes for global projects.
Q4: How is safety ensured across different climates and environmental conditions?
A4: We optimize bar spacing, thickness, surface finish, and corrosion protection per project, ensuring safe use in tropical, coastal, cold, or industrial environments.
In summary, Dense Stainless Steel Grating excels in safety-critical and corrosive settings such as industrial platforms, warehouses, chemical plants, food facilities, coastal ports, and public plazas. Its fine mesh, exceptional corrosion resistance, hygienic finishes, and customizable shapes ensure reliable object prevention, slip safety, long-term performance, and compliance with global standards in demanding industrial, marine, and architectural applications.
