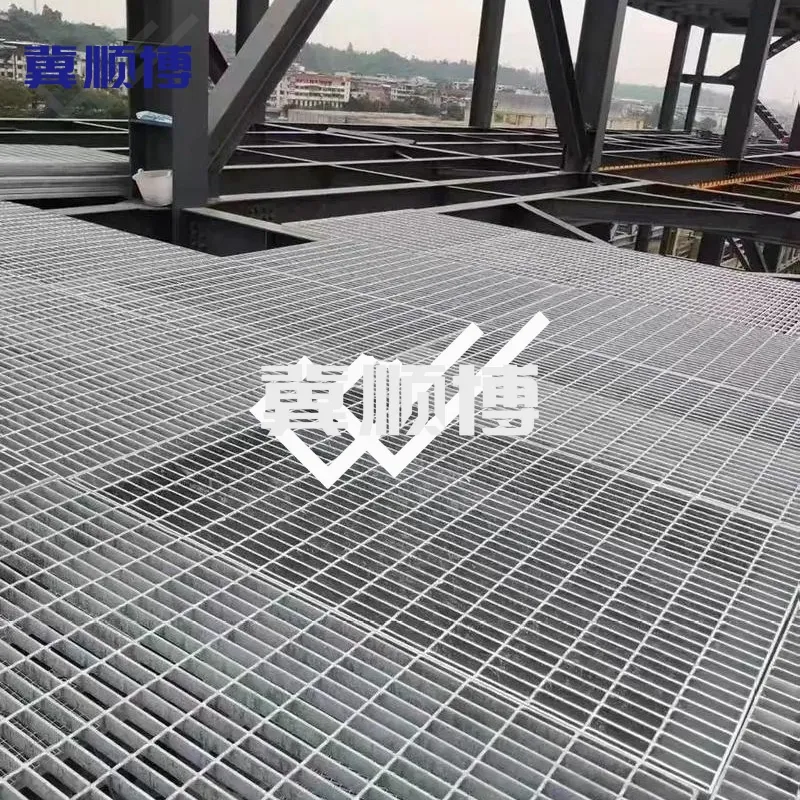

Stainless Steel Platform Grating

1.Product Overview

Stainless Steel Platform Grating is the premier choice for environments requiring high corrosion resistance or specific cleanliness standards. We utilize Four Precision Automated Lines for standard panels and Manual Shielded Welding for bespoke shapes. This grating is typically Pickled (Acid Washed) to maximize its resistance to chemical exposure in pharmaceutical, food processing, and marine settings.

2.Technical Parameters

Feature	Specifications	Engineering Notes
Material Grade	SS304 / SS316L / SS321	Selection based on chemical/acid exposure
Fabrication Method	Auto-Pressure & Manual Welding	Clean, high-strength fusion joints
Bearing Bar Depth	20mm to 200mm	Calculated for $L/200$ deflection limits
Bearing Bar Thickness	2mm to 10mm	3mm/5mm common for personnel walkways
Cross Bar (Twisted)	5mm / 6mm (Twisted Square)	Provides lateral stability and bi-directional grip
Bar Type	Plain / Serrated (Anti-Slip)	Serrated is recommended for wet wash-down zones
Surface Finish	As-Welded / Pickled / Polished	Pickling is the industrial standard for rust-proofing
Standard Mesh	20mm,30mm, 40mm, 50mm,60mm (Customizable)	Customizable for specific drainage or safety needs
Cross Bar Pitch	50mm, 100mm (Standard)	Ensures efficient drainage and debris clearance



Manufacturing Features:

1.4 Automated Pressure Welding Lines: High-precision fusion ensures uniform joint strength across large-scale standard decks.

2.Manual Shielded Welding: Critical for custom layouts, oversized panels, and precise welding around vessel ports or complex equipment interfaces.

3.Product Advantages

1.Chemical Resilience: Inherently resistant to organic acids, alkalis, and chlorides without the need for surface paint or galvanizing.

2.Zero Coating Risk: No paint to flake or zinc to contaminate the production line, ensuring food and drug safety compliance.

3.Low Maintenance: A simple wash-down is usually enough to maintain the surface and structural integrity for the life of the plant.

4.Clean Appearance: Provides a bright, metallic finish that remains stable across extreme temperature shifts.

4.Core Applications

1.Food & Dairy Processing: Walkways and equipment platforms subject to frequent wash-downs and organic acids.

2.Pharmaceutical Mezzanines: Access levels for bioreactors and filtration units requiring a clean, non-reactive flooring.

3.Marine & Coastal Platforms: Flooring exposed to salt spray where galvanized steel would degrade too quickly.

4.Beverage & Breweries: Stable, corrosion-resistant decks for production lines and storage areas.

5.Customization Services

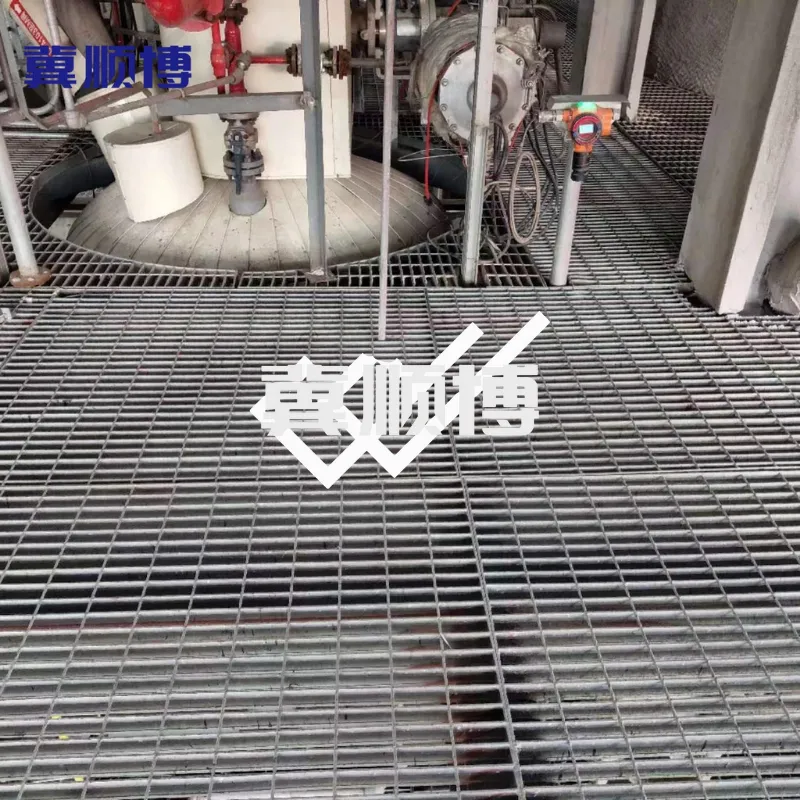

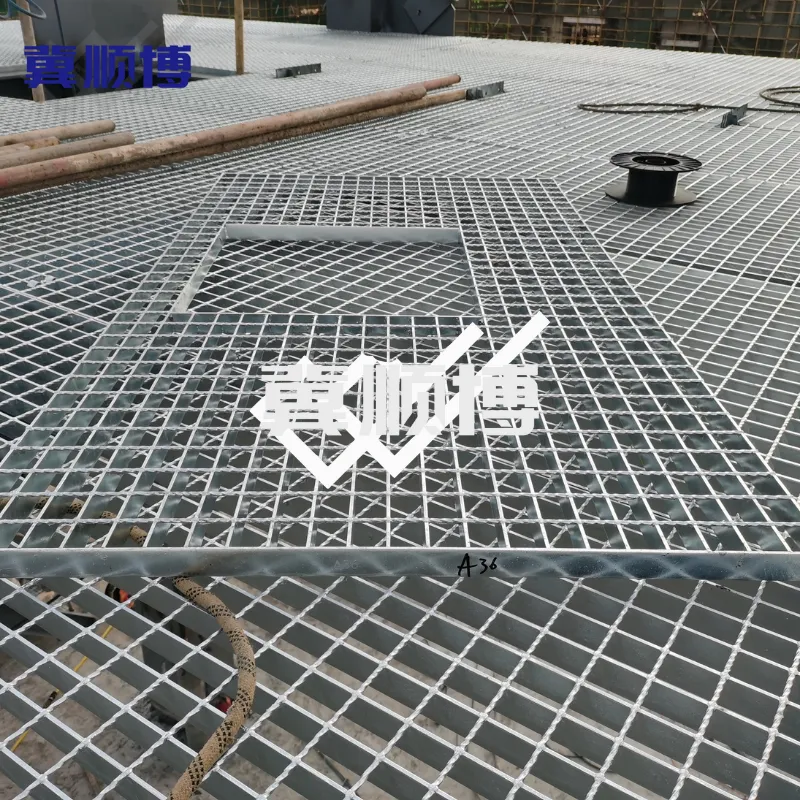

1.Precise Shape Fabrication: Manual welding of circular, arc, or irregular segments to fit perfectly around piping and tanks.

2.Sanitary Edge Banding: Manual welding on perimeter edges to eliminate cleaning dead zones (crevices) in sensitive areas.

3.Bespoke Widths: Producing panels that exceed standard machine width limits for unique engineering needs.

4.CAD Shop Drawings: Every panel is numbered and mapped for a perfect “drop-in” fit upon delivery.

6.Quality Control & Performance

1.Material Traceability: All batches are supplied with mill certificates to verify the SS304 or SS316L chemical composition.

2.Weld Consistency Check: Inspection of automated and manual welds to ensure reliable performance under design loads.

3.Passivity Verification: Ensuring the pickled surface is free of iron contamination to prevent surface spotting.

7.FAQ

Q: When should I choose SS316L instead of SS304?

A: SS316L is recommended for marine environments or areas with high salt/chloride exposure to prevent pitting.

Q: Why is “Pickling” necessary?

A: Pickling removes the welding heat tint and restores the chromium oxide layer, ensuring the grating remains rust-proof.

Q: Can stainless grating handle the same span as carbon steel?

A: Generally no. Stainless steel is less stiff; it usually requires more support beams or thicker bearing bars for the same span.

Q: Is stainless steel grating harder to clean?

A: No. The open mesh and smooth surface are designed for high-pressure wash-downs (CIP procedures).

Q: Can you produce circular panels for vessel access?

A: Yes. Our manual welding department specializes in cutting and banding circular sections to fit around tanks.

Q: How do you prevent surface rust?

A: We ensure the material is free of iron contamination and recommend a pickled finish for humid environments.



In summary, Stainless Steel Platform Grating excels in food/dairy processing, pharmaceuticals, breweries, and marine/coastal facilities requiring non-reactive, wash-down-compatible surfaces. Its durable alloys, crevice-free welds, and customizable designs ensure long-term hygiene, low maintenance, and reliable performance under frequent cleaning and corrosive conditions worldwide.
