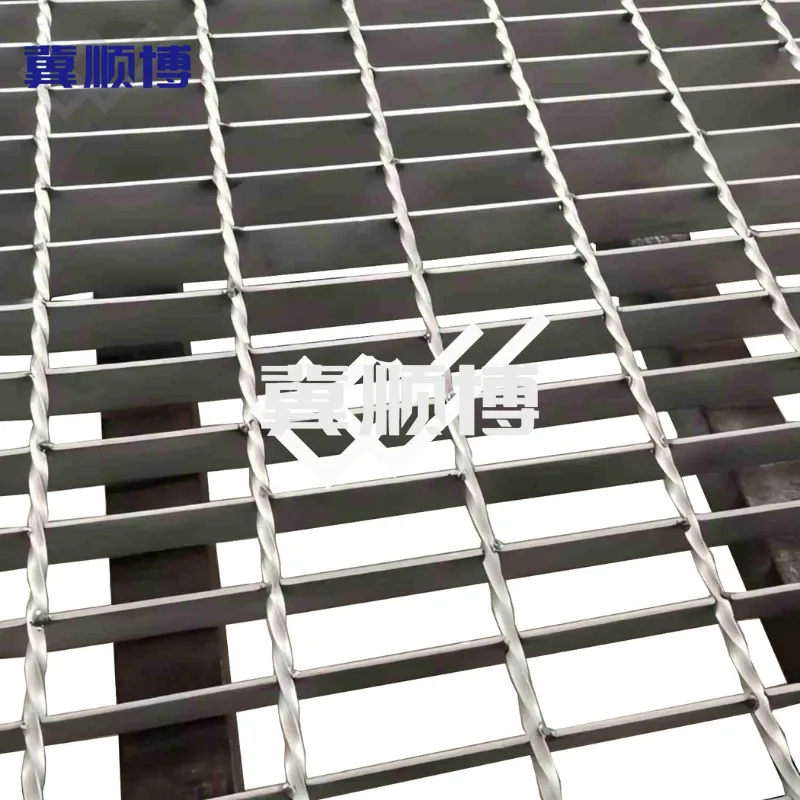

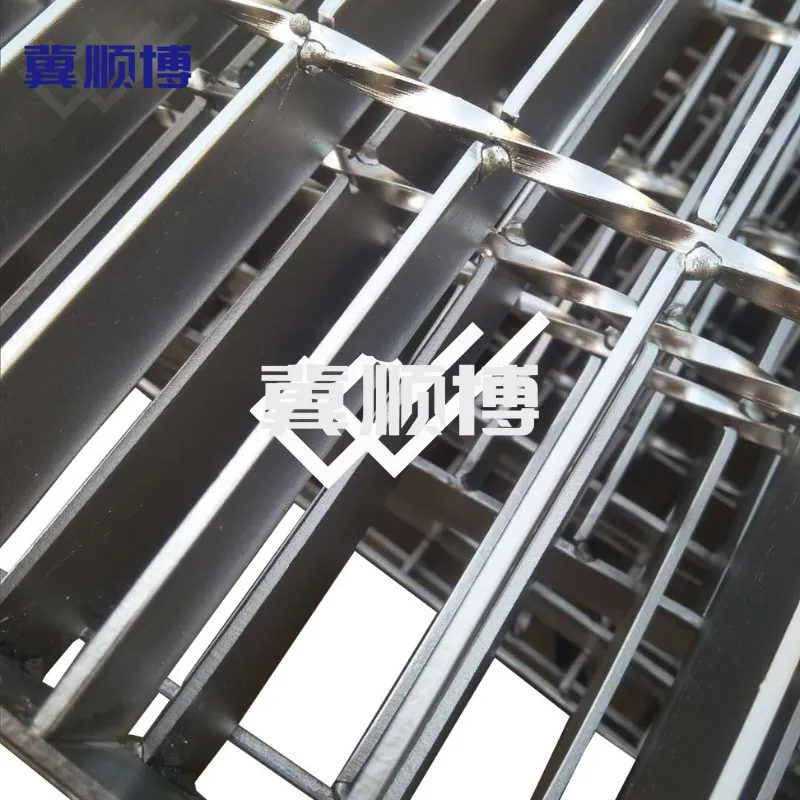

Stainless Steel Rectangular Bar Grating (SS304/SS316L/SS321) is the ultimate heavy-duty flooring for extreme corrosive environments. Solid rectangular bearing bars (20–200 mm deep, 3–20 mm thick, plain/serrated) are pressure resistance or manually welded with twisted/round cross bars in 30–50 mm pitches. Pickled, passivated, or electropolished finishes provide permanent metallurgical corrosion resistance to acids, chlorides, and salt spray.

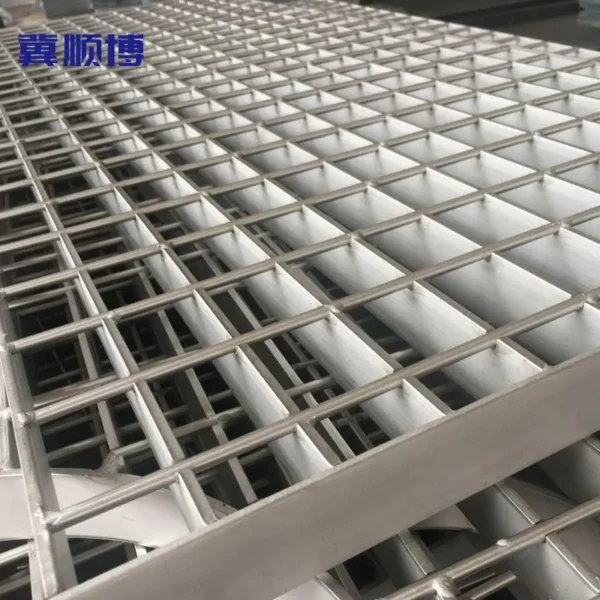

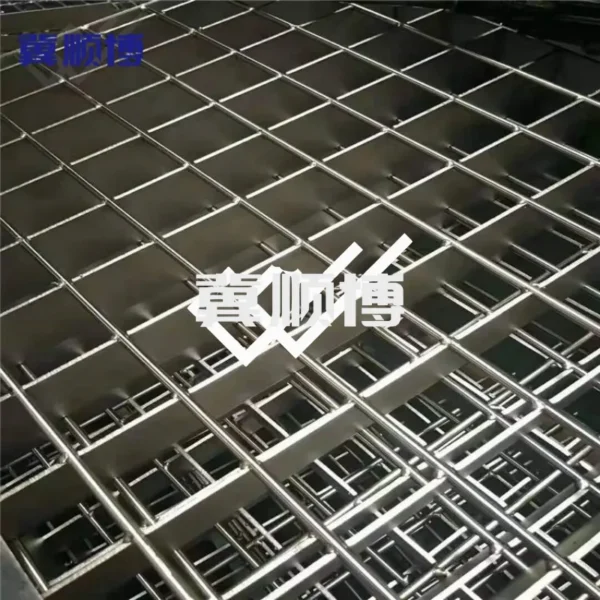

Stainless steel – rectangular section steel grating
Rectangular Bar Grating (Stainless Steel)
1.Product Information
Stainless Steel Rectangular Bar Grating is the ultimate structural flooring solution for Extreme Corrosive Environments. Utilizing solid SS304 or SS316L bars, it is engineered to withstand prolonged exposure to industrial acids, caustic chemicals, and high-salinity maritime conditions. Unlike galvanized steel, stainless steel provides permanent metallurgical resistance to rust, ensuring structural integrity in the harshest atmospheric conditions.
2.Technical Parameters
| Feature | Standard Specifications | Technical Notes |
| Material Grade | SS304 / SS304L, SS316 / SS316L, SS321 | SS316L is the global standard for acid and salt-spray resistance |
| Fabrication | Pressure Resistance Welding / Manual Welding | Pressure Resistance Welding for bulk; Manual Welding for custom/low volume |
| Bearing Bar Depth | 20mm to 200mm | Calculated based on L/200 deflection for structural safety |
| Bar Thickness | 3.0mm-20.0mm | Solid bars provide lifelong resistance to corrosive thinning |
| Bearing Bar Pitch | 30mm, 40mm, 50mm（or custom） | Customized pitch for optimal drainage of corrosive liquids |
| Surface Finish | Pickled & Passivated / Electropolished | Restores the passive layer for maximum chemical resistance |
| Surface Texture | Plain / Serrated | Serration is essential for oily and chemically wet environments |
Engineering Notes:
1.Corrosion Kinetics: Specify SS316L for any environment within 5km of the ocean to prevent chloride-induced pitting.
2.Passivation Integrity: Following manual welding, all stainless components must undergo chemical pickling and passivation to remove heat-tint, which otherwise acts as a rust initiation site.
3.Deflection Limits: Pedestrian comfort is capped at L/200 or 10mm; for high-vibration chemical pumps, increase bar depth to reduce harmonic resonance.
3.Product Advantages
1.Permanent Corrosion Resistance: Immune to pitting and surface rust from sulfuric acid, chlorides, and maritime humidity.
2.Structural Longevity: Maintains load-bearing capacity in environments where carbon steel would suffer significant material loss.
3.High Chemical Tolerance: Ideally suited for chemical storage areas, acid pickling lines, and wastewater treatment plants.
4.Thermal Stability: Retains critical strength in high-heat applications where galvanized coatings would fail.
4.Core Applications
1.Chemical & Petrochemical: Platforms and walkways exposed to caustic spills and aggressive vapors.
2.Offshore & Marine: Oil rigs, piers, and desalination plants in direct contact with seawater.
3.Wastewater Treatment: Areas with high hydrogen sulfide and chemical dosing exposure.
4.Pulp & Paper Mills: Environments with extreme moisture and chemical processing agents.
5.Customization Services

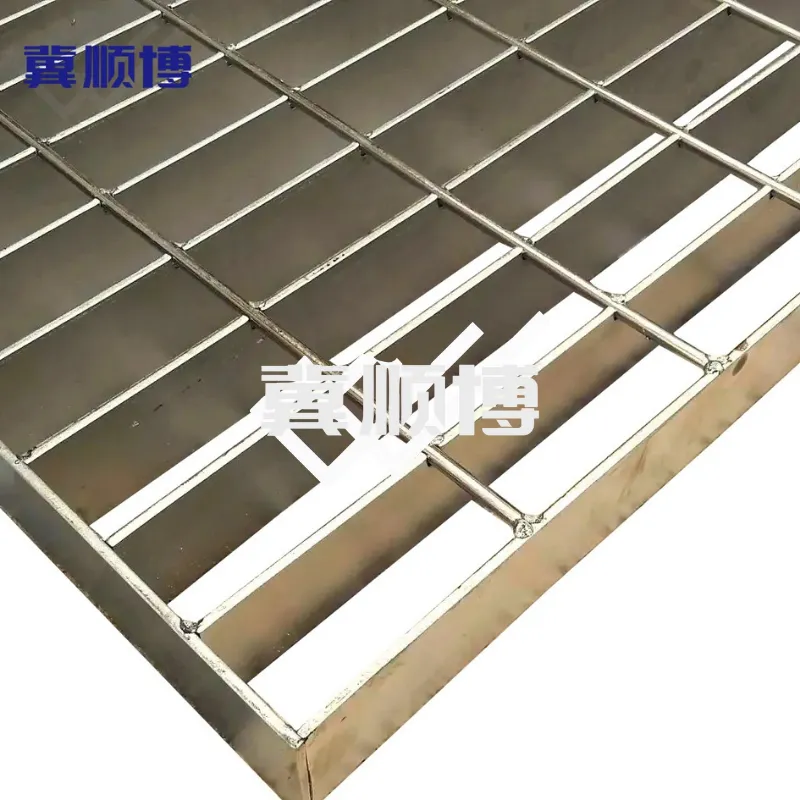

1.Chemical-Grade Manual Banding: Every panel end is manually welded with thick banding to prevent lateral failure in high-stress zones.
2.Post-Fabrication Toe Boards: Manual welding of stainless kick plates to the panel edges for safety on high-elevation chemical platforms.
3.Electropolishing: Enhanced surface treatment for extreme resistance to localized pitting in highly acidic zones.
6.Quality Control
1.Passivation Audit: Rigorous chemical testing to verify the restoration of the chromium oxide layer after the welding process.
2.Material Traceability: 100% Mill Test Certificate (MTC) tracking to ensure material meets ASTM/EN chemical specs.
3.Weld Integrity Inspection: Visual and mechanical audit of both pressure resistance and manual welds to ensure zero defects.
7.FAQ
Q: Why is SS316L preferred over SS304 for chemical processing?
A: SS316L contains Molybdenum, which specifically provides superior resistance to chloride pitting and industrial acids.
Q: Can stainless steel grating handle corrosive liquids without losing strength?
A: Yes, unlike galvanized steel where the coating can peel, stainless steel is corrosion-resistant throughout its entire cross-section.
Q: Is Pressure Resistance Welding available for stainless steel?
A: Yes, for standard large-batch orders, pressure resistance welding provides a high-strength, efficient bond for stainless alloys.
Q: How does the pickled and passivated finish help in salt-spray zones?
A: It chemically removes surface contaminants and “heals” the protective oxide layer, making it immune to harsh salt air.
Q: Is serrated stainless steel necessary for offshore oil platforms?
A: Absolutely. The combination of seawater and industrial lubricants makes serrated surfaces mandatory for worker safety.
Q: Can I use stainless steel grating in high-temperature smelting zones?
A: Yes, stainless steel maintains its mechanical properties at much higher temperatures than standard carbon steel.
Q: What is the typical maintenance requirement for stainless grating in harsh zones?
A: Minimum maintenance is required; a simple periodic rinse with water is usually enough to prevent the buildup of corrosive residues.
In summary, Stainless Steel Rectangular Bar Grating excels in chemical plants, offshore platforms, wastewater treatment, and pulp mills. Its inherent chemical tolerance, structural longevity, serrated anti-slip options, and low-maintenance durability ensure reliable safety and performance in the harshest corrosive and high-humidity conditions worldwide.
