Stainless Steel Stair Treads (Safety Step Bar Grating) are precision-engineered for corrosive and hygienic environments using SS304/316L/321. They feature bearing bars (25–65 mm deep, 3–6 mm thick, plain/serrated) with twisted stainless square cross bars (5–6 mm), in welded or bolted types (ST1–ST7). Standard widths (125–275 mm) and lengths (up to 1200 mm) include pickled/passivated or polished finishes for superior corrosion resistance and easy cleaning.
Stainless steel – Stair treads

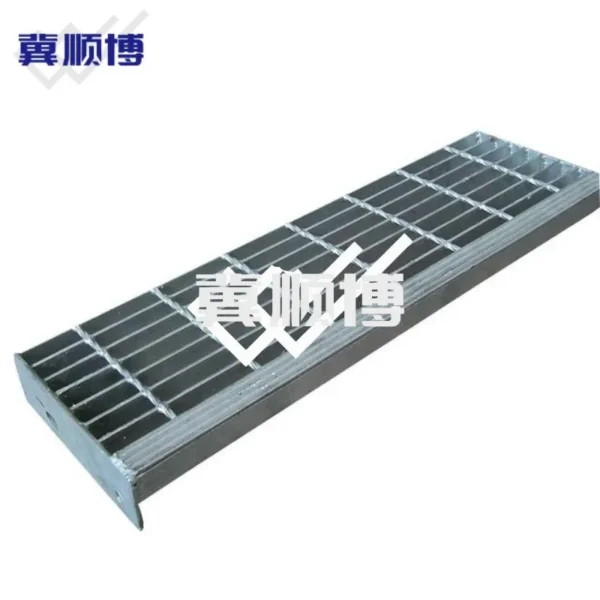

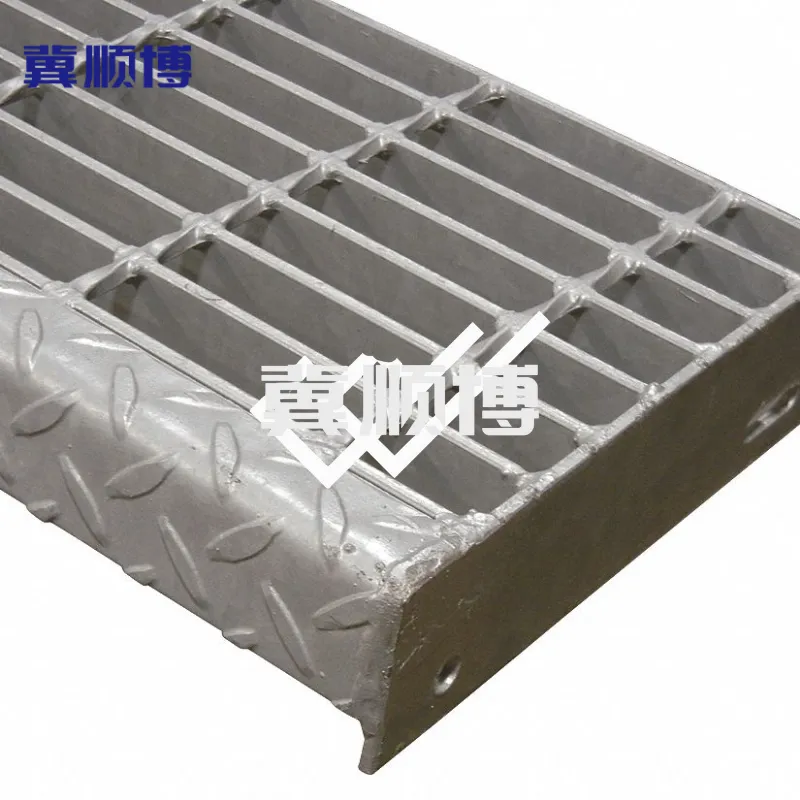

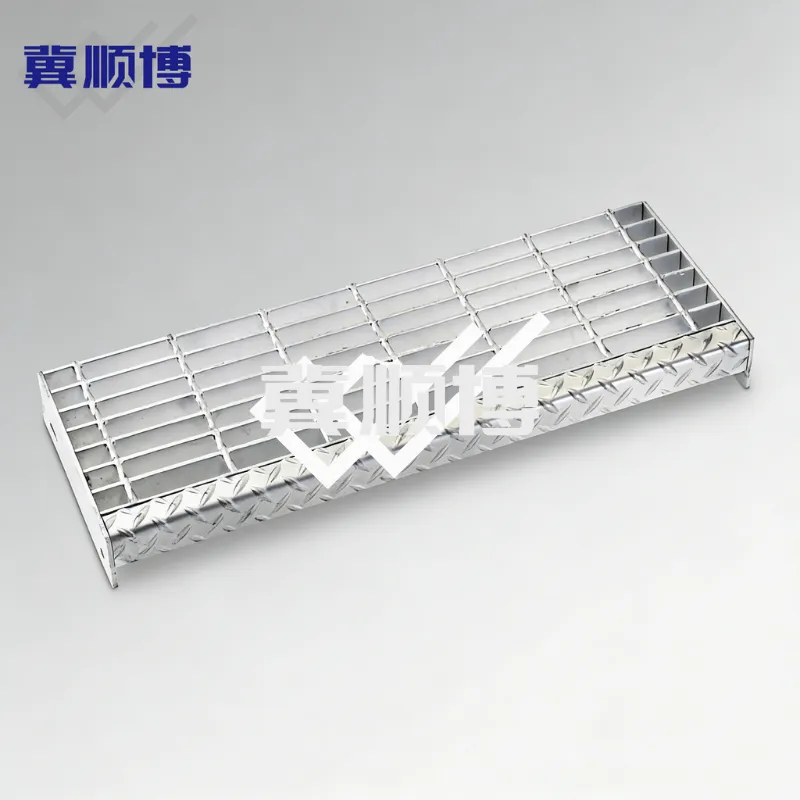

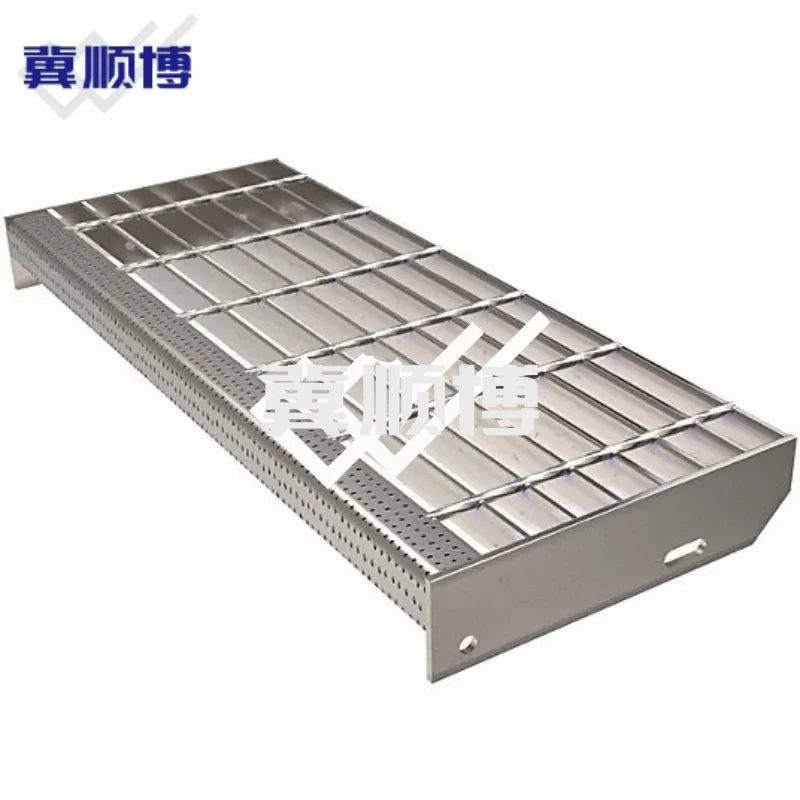

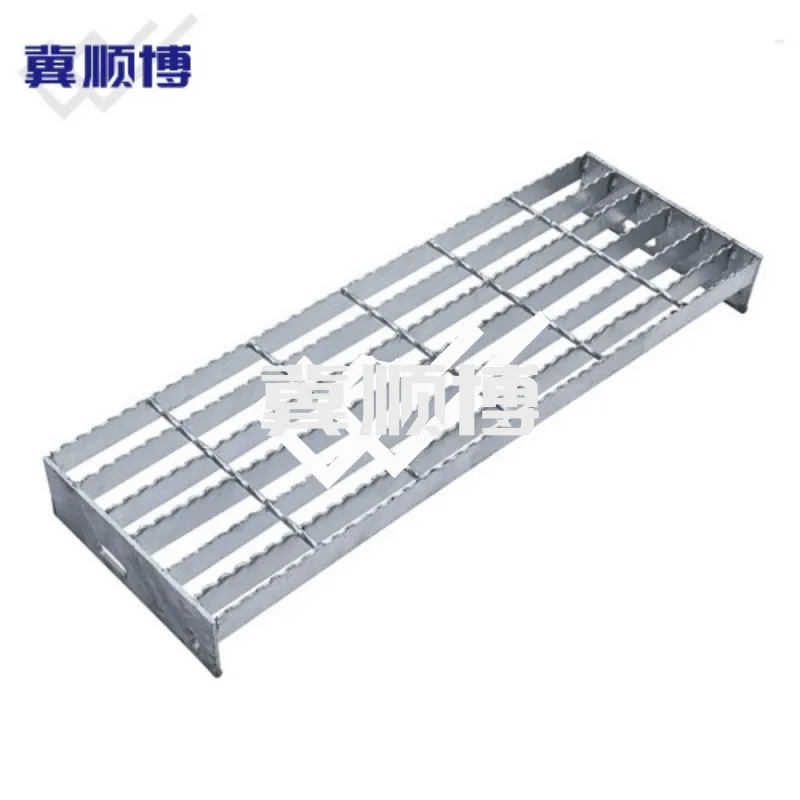

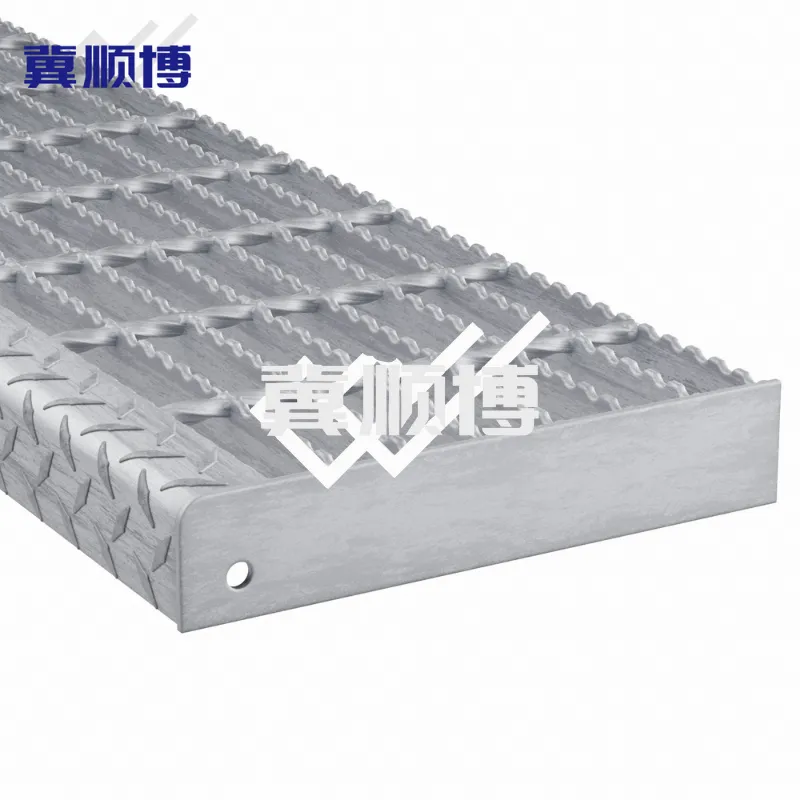

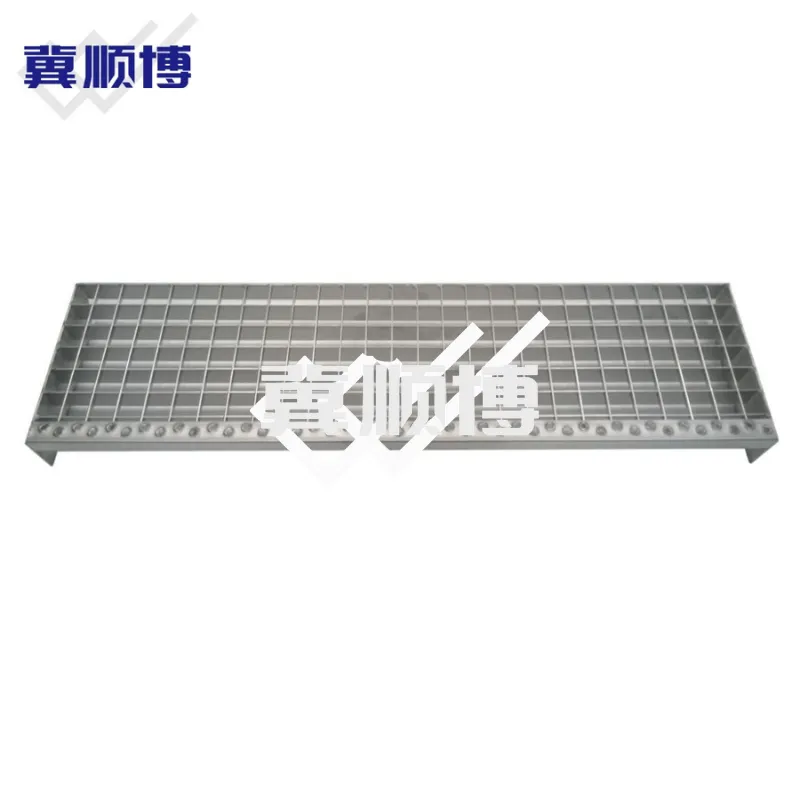

Stainless Steel Stair Treads
1.Product Information
Stainless Steel Stair Treads (Safety Step Bar Grating) are specifically engineered for highly corrosive environments or facilities with strict hygiene standards. Utilizing premium SS304 or SS316L combined with precision manual welding, we deliver a stair surface that is chemically stable and visually professional. These treads are the premier choice for food processing and marine engineering.
2.Technical Parameters
| Feature | Specifications | Engineering Notes |
| Material Grade | SS304 / SS316L / SS321 | Excellent chemical and acid/alkali resistance |
| Fabrication Method | Precision Manual Welding | Ensures clean, smooth welds without oxidation residue |
| Bearing Bar Depth | 25mm to 65mm | Calculated to meet L/200 deflection limits |
| Bearing Bar Thickness | 3mm / 5mm / 6mm | 3mm/5mm are common for industrial applications |
| Cross Bar (Twisted) | 5mm / 6mm (Stainless Twisted Square) | Provides lateral stability and bi-directional grip |

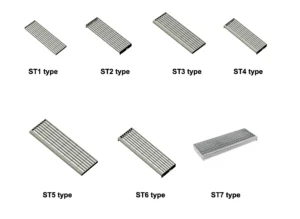

| Tread types | Welded / Bolted (with End Plates) | Hole patterns customized per stringer design |
| Recommended Width | 125, 165, 205, 245, 275mm (Modulus) | Standard widths ensure optimal grid symmetry |
| Recommended Length | 500, 600, 700, 800, 900, 1000, 1200mm | Based on 100mm increments and stair angle |
| Surface Finish | Pickled & Passivated / Polished | Restores corrosion resistance and provides a clean look |
3.Product Advantages
Superior Corrosion Resistance: Stainless steel provides inherent protection through the entire bar, immune to salt-spray and acidic vapors.
High Aesthetic Sustainability: Maintains a bright, metallic finish for decades without repainting, even in coastal environments.
Inherent Structural Hygiene: The non-porous surface of SS304/316L is naturally resistant to bacterial growth and easy to pressure-wash.
Optimized Life-Cycle Value: Near-zero maintenance requirement offers the lowest total cost of ownership over the project’s lifespan.
4.Core Applications
Widely applied in food processing plants, pharmaceutical workshops, laboratories, and offshore marine platforms. Frequently used in swimming pools and coastal infrastructure subject to high humidity.
5.Customization Services
We provide full-spectrum customization. Based on your material grade (SS304/316L), specific dimensions, and design requirements, our professional team creates bespoke treads that integrate perfectly with your layout.
6.Quality Control
Passivation Audit: We ensure every weld is thoroughly pickled and passivated to restore the protective layer.
Material Traceability: All batches are supplied with Mill Test Certificates (MTC) to verify the SS304/SS316L standards.
Flatness Verification: Every manual weld is checked for surface flatness to ensure the nosing is flush, eliminating trip hazards.
7.FAQ
Q: When should I choose SS316L over SS304?
A: SS316L is essential for marine platforms with high chloride exposure to prevent “pitting” corrosion.
Q: What is the benefit of the “Pickling” finish?
A: It removes the heat tint from welding and restores the protective layer, ensuring the treads do not rust.
Q: How much load can these stainless treads support?
A: They are designed for frequent personnel traffic. We recommend the optimal bar depth based on your stair span.
Q: Can you provide “Full Penetration” welding for the end plates?
A: Yes. We can provide seamless welding to eliminate crevices where industrial waste could accumulate.
Q: Why are twisted bars used as cross bars?
A: The twisted square bar increases the friction coefficient, providing reliable traction even when wet.
Q: What type of bolts should be used for installation?
A: Always use matching stainless steel bolts. Never use galvanized bolts, as this will cause galvanic corrosion.
In summary, Stainless Steel Stair Treads deliver exceptional durability, hygiene, and slip resistance for food processing, pharmaceuticals, marine platforms, and coastal facilities. Their corrosion-proof alloys, precise manual welding, and customizable designs ensure long-term safety, low maintenance, and reliable performance in demanding, high-humidity environments.
