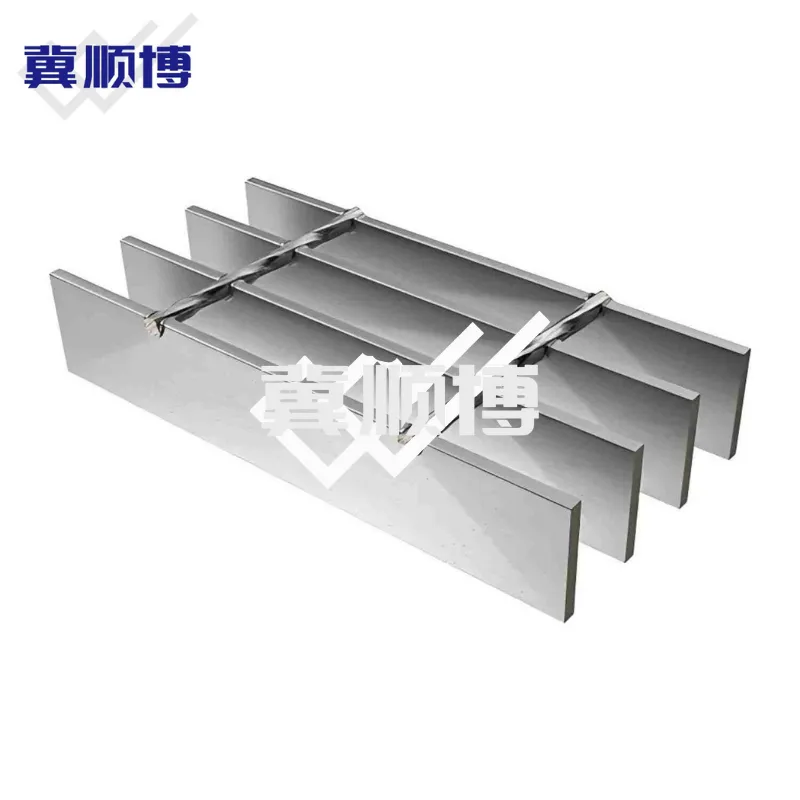

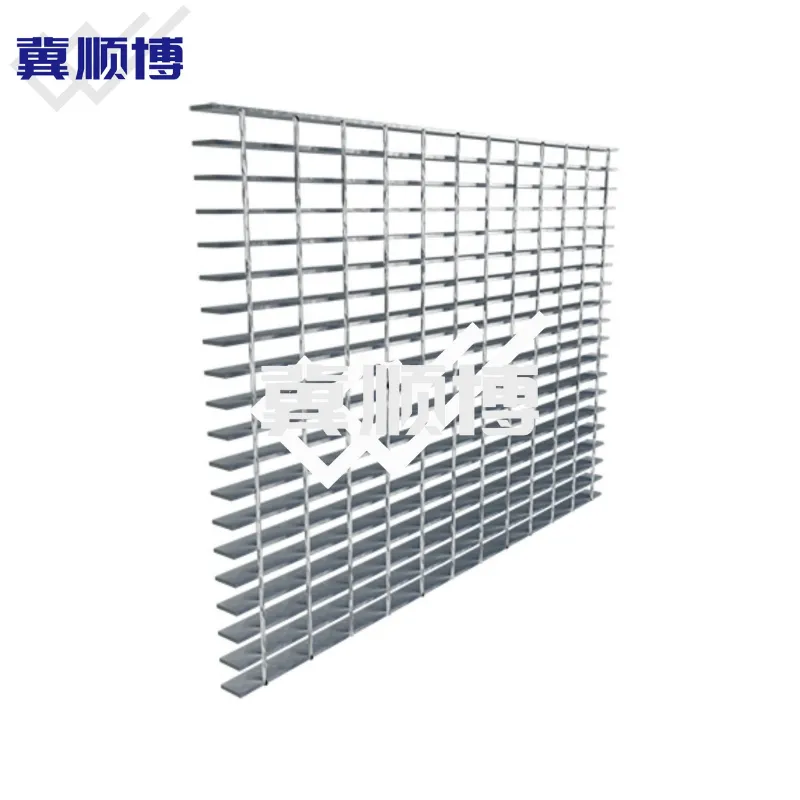

Standard Stainless Steel Grating is a corrosion-resistant flooring solution made from premium alloys such as ASTM A240, AISI 304, 316L, 310S, 201, SUS304, SUS316L, or SS304. It features rectangular or I-bar bearing bars (e.g., 25×3 mm to 100×10 mm; US standards: 1”×3/16” to 1 1/2”×1/4”) with pitches of 12.5–80 mm (e.g., 19-W-4, 15-W-4). Cross bars include round (φ6–φ12 mm) or twisted square steel, spaced at 38.1–120 mm (2”–4”). Available in plain/smooth or serrated styles, with untreated, polished, or painted finishes. Material Test Certificates (EN 10204 3.1) available on request.
Stainless steel – Standard steel grating

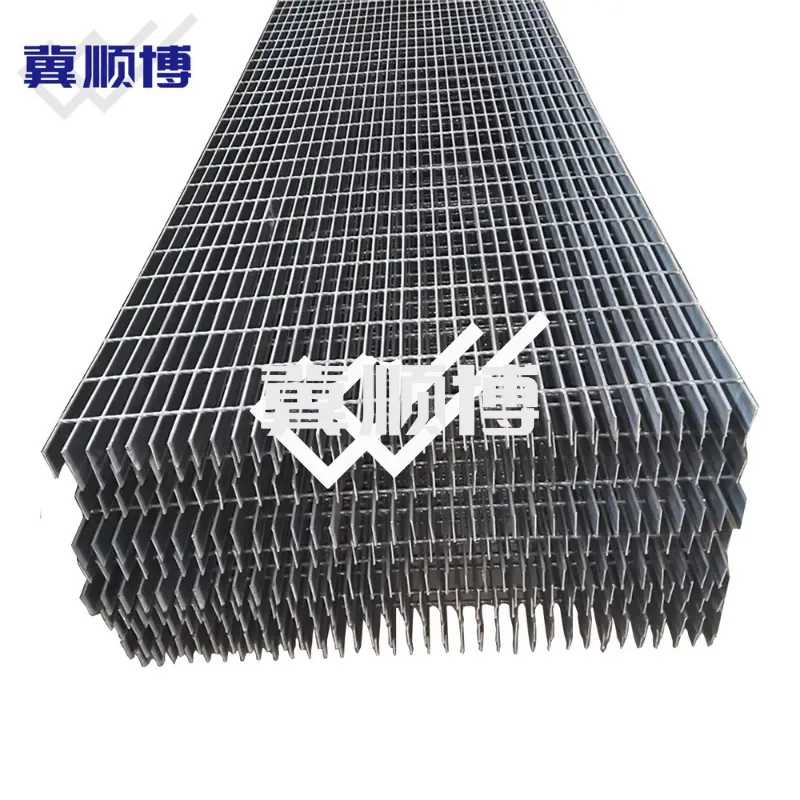

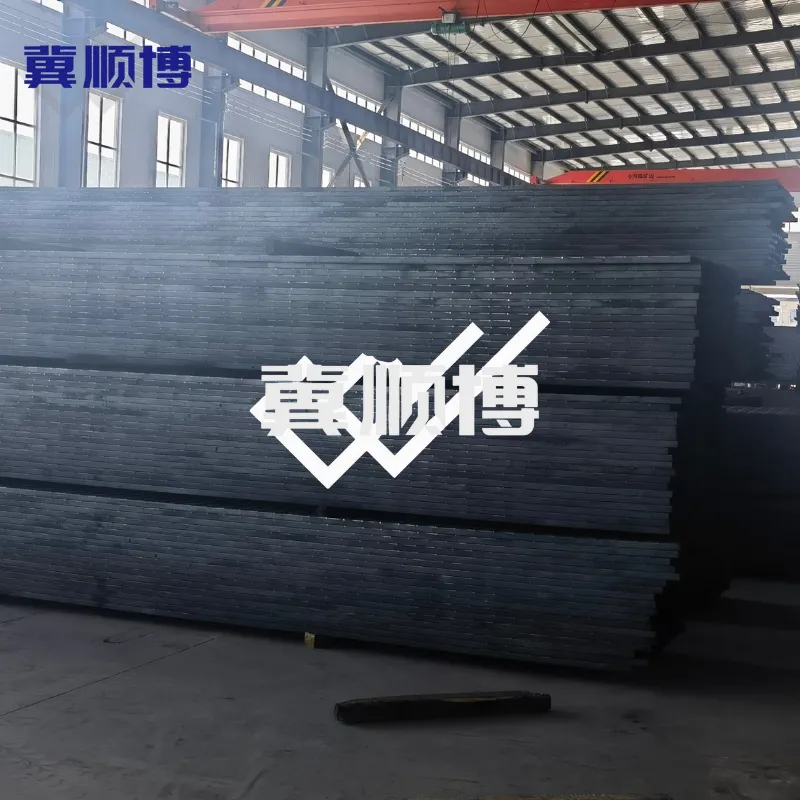

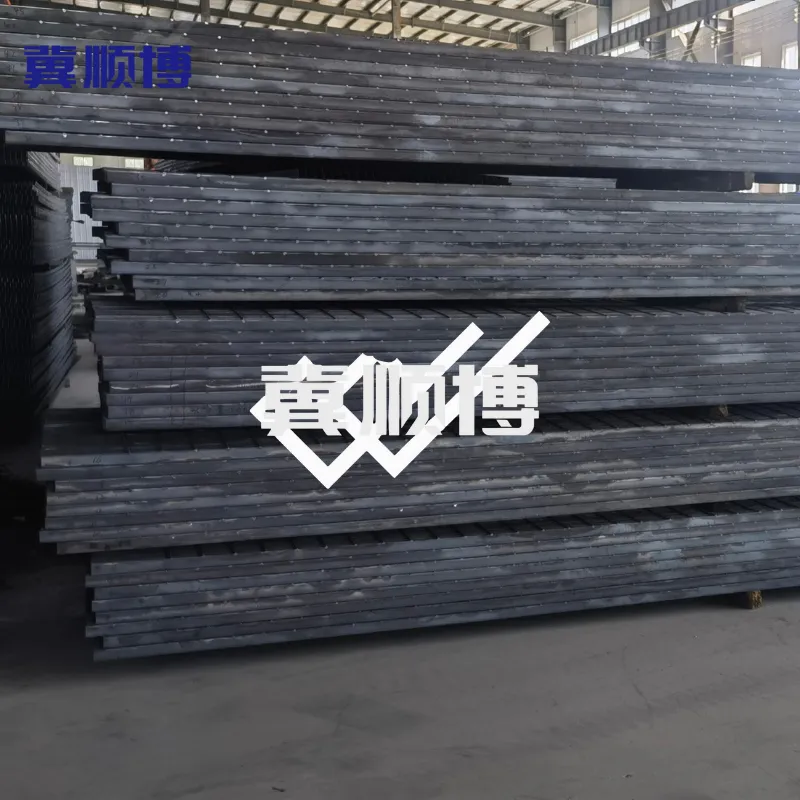

Standard Steel Grating (Stock Mats)
Standard steel grating (stock mats) have a length range of 1000mm to 7500mm, a width range of 900mm to 1000mm, and bearing bar heights ranging from 20mm to 60mm. The bearing bar thickness is typically 3mm, 4mm, or 5mm. Surface types include flat or serrated, and surface treatments include polishing, painting, or untreated (natural color).
| Common Specification Of Standard Steel Grating | |
| Material Standard | ASTM A240, AISI 304, 316L, 310S, 201, SUS304, SUS316L, SS304, etc |
| Bearing Bar(width*thickness) | 25×3, 25×4, 25×4.5, 25×5, 30×3, 30×4, 30×4.5, 30×5, 32×5, 40×5, 50×5, 65×5, 75×6, 75×10…..100 x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1”x3/16”, 1 1/4”x3/16”, 1 1/2”x3/16”, 1”x1/4”,1 1/4”x1/4”, 1 1/2”x1/4”, 1”x1/8”, 1 1/4”x1/8”, 1 1/2”x1/8” etc |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Cross Bar Type | Round Steel：φ6、φ10、φ12 etc. Twisted square steel：φ6、φ8、φ10 etc. Bearing Bar：10X2mm、20X2mm、30X3mm etc. |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2” & 4” etc |
| Surface treatment | untreated(primary colors), polished finish, painting or as per customers’ requirement. |
| Grating Style | Plain / Smooth, Serrated /teeth, |
| MTC (Material Test Certificate) according to EN 10204 3.1 available upon request | |
In summary, Standard Stainless Steel Grating offers excellent durability, hygiene, and slip resistance for demanding applications like food processing, chemical plants, marine environments, and industrial platforms. Its versatile sizing, corrosion-proof alloys, customizable surfaces, and compliance with international standards ensure reliable performance, easy installation, and long-term safety in corrosive or high-hygiene settings worldwide.
