Welded Steel Grating

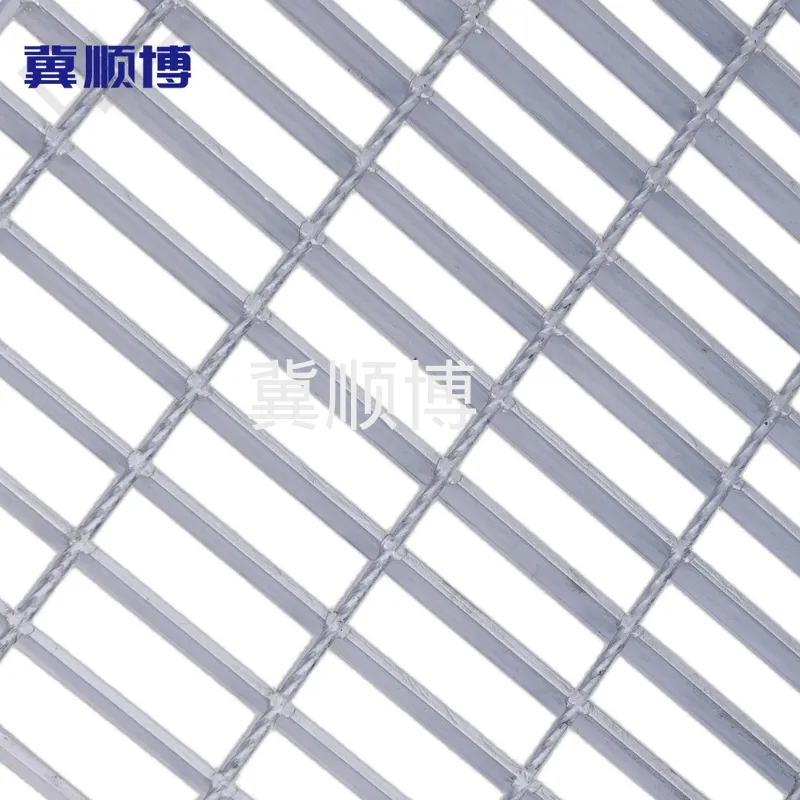

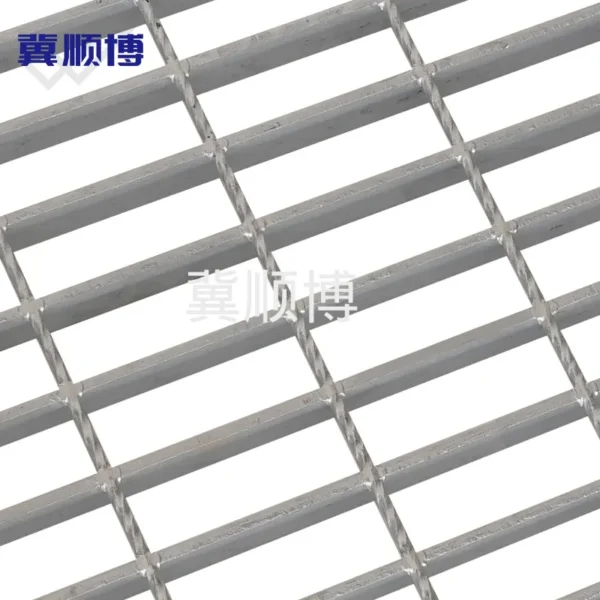

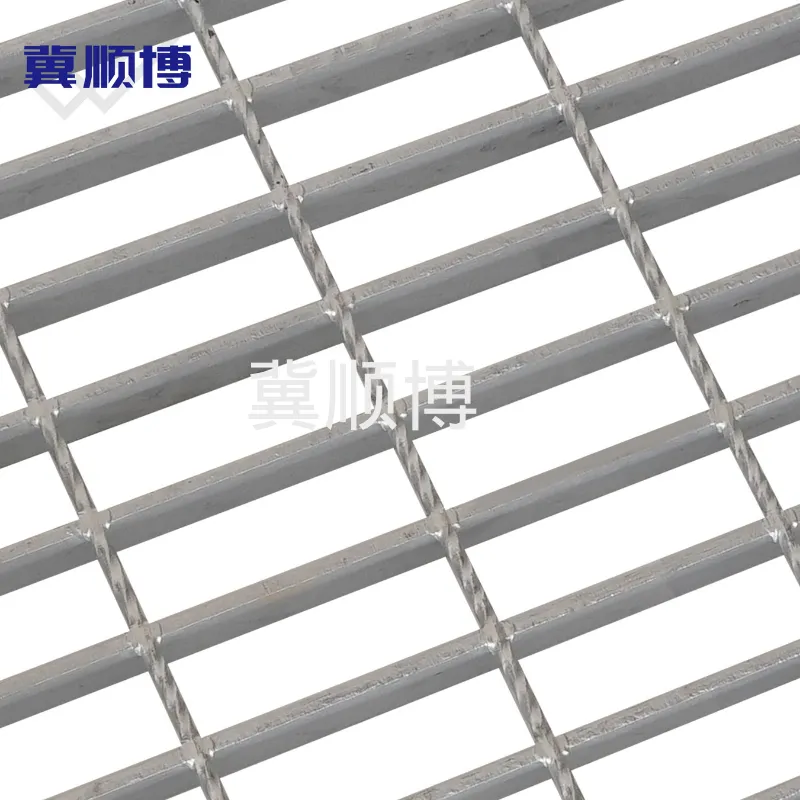

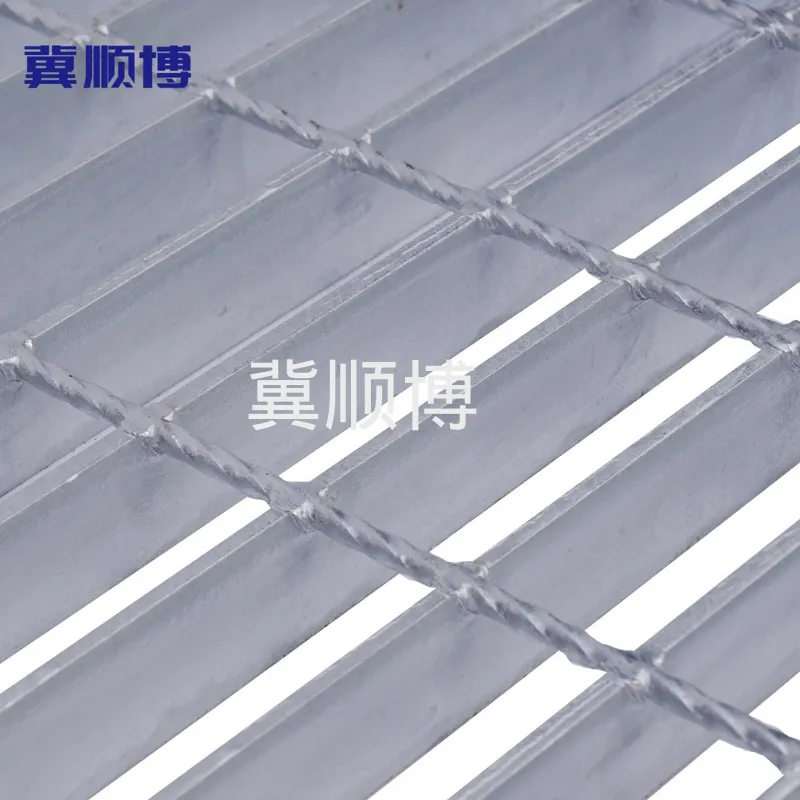

Heavy Duty Welded Steel Grating is a premium, high-strength open-mesh flooring system specifically engineered for extreme load-bearing demands in industrial and heavy-traffic environments. Manufactured through precision resistance welding (electro-forging) of thick rectangular bearing bars to twisted square cross bars, it delivers unmatched rigidity, deformation resistance, and long-term durability under forklifts, trucks, container vehicles, and heavy machinery—surpassing standard grating in capacity and performance.

Technical Specifications

• Bearing Bar Sizes: 50×5 mm, 65×5 mm, 75×6 mm, 75×8 mm, 100×8 mm, 100×10 mm (larger sizes available for custom needs).
• Bearing Bar Spacing: 30 mm (standard heavy duty) or 25 mm (high-load reinforced) for enhanced support.
• Cross Bar: Twisted square steel, 6 mm or 8 mm diameter, spaced at 50 mm or 100 mm intervals.
• Materials: Carbon Steel Q235B (cost-effective), Q355B (higher strength), or Stainless Steel 304/316 (corrosive environments).
• Surface Treatment: Hot-dip galvanized (ASTM A123 / ISO 1461 standard for superior corrosion resistance), painted, untreated (black), or natural stainless finish.
• Model Examples: G755/30/100 (75×5 mm at 30 mm spacing), G10010/25/100 (100×10 mm at 25 mm spacing) – customizable per load requirements.

Carbon Steel Welded Grating

1. Product Overview

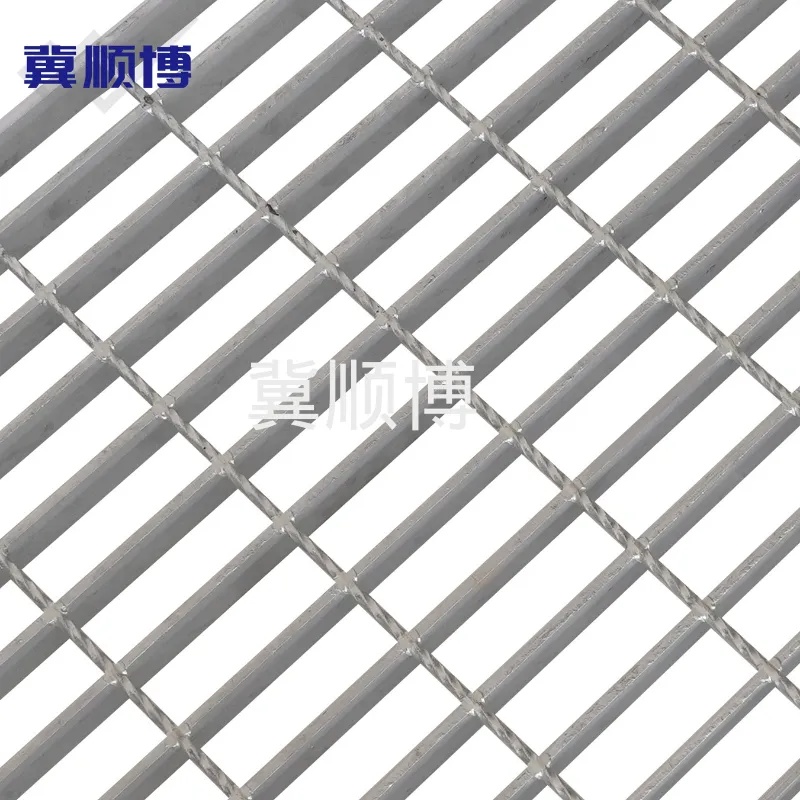

Forge-welded steel bar grating is the industry standard for industrial flooring, providing a high-strength, open-grid structure for platforms and walkways. This product is manufactured through a process where twisted square cross bars are fused into load-bearing bars using high-voltage electric resistance and extreme pressure. The resulting single-piece construction ensures permanent joints that resist warping and vibration.

Our manufacturing processes adhere to international engineering standards, including NAAMM MBG 531 for metal bar grating and ASTM A123 for zinc coatings. Common material grades utilized include ASTM A36, Q235B, Q355Band S235JR, providing reliable yield strength for structural applications.



2.technical Parameters



Category	Parameter	Specification / Range	Engineering Notes
Material	Steel Grade	ASTM A36 / ASTM A1011 / Q235 / Q355	Equivalent structural grades available
Manufacturing	Production Method	Electric Resistance Welded / Manual Welded	Resistance welding standard; manual for heavy-duty or special panels
Bearing Bars	Bar Type	Rectangular / Serrated / I-Bar	Serrated for anti-slip
	Depth × Thickness	20×3 mm – 200×10 mm	Selected by span & load
	Bar Spacing (C/C)	12.5 / 15 / 20 / 30 / 34 / 38 / 40 / 50 / 60 mm（or custom）	Common NAAMM, EU & GB references
Cross Bars	Bar Type	Twisted square / Round / Flat bar	Twisted square most common
	Bar Size	6 / 8 / 10 / 12 / 20mm	Standard industry reference
	Bar Spacing	38 / 50 / 76 / 100 mm（or custom）	Standard international ranges
Panel Size	Width	300 – 3000 mm (custom)	≤3000 mm recommended for transport
	Length	≤6000 mm	Standard max length
	Thickness Tolerance	±5 mm	Manufacturing standard
Structural	Design Load	2 – 1000 kN/m²	Pedestrian to industrial
	Max Span	100 – 3000 mm	Depends on bar size
	Deflection Limit	L/200 – L/400	Standard engineering practice
Surface	Finish Options	Hot-dip galvanized / Painted / Powder coated	ASTM A123 for galvanizing
Standards	Applicable Codes	ANSI/NAAMM MBG531 / BS 4592 / AS 1657 / ISO 9001	Project dependent



Engineering Notes

• Panel dimensions, bar size, spacing, and edge banding are custom-fabricated per approved drawings.
• Bearing bar spacing can follow NAAMM, BS 4592, AS 1657, GB standards depending on project location.
• Hot-dip galvanizing per ASTM A123 is standard for outdoor/industrial applications.
• Load ratings and deflection limits are engineered per project requirements.
• Manual welding is applied for non-standard or heavy-duty panels.

3. Product Advantages

• High Strength-to-Weight Ratio:Steel grating supports heavy loads with significantly less material than solid plating, reducing secondary structural costs.
• Self-CleaningGeometry: The open-mesh design prevents the accumulation of liquids, snow, and debris, maintaining a safe walking surface.
• Lateral Rigidity:The forge-welded intersection points provide excellent resistance to lateral forces, maintaining panel squareness during transport and installation.
• Corrosion Resistance:Hot-dip galvanizing provides a metallurgical bond that protects the steel in maritime and industrial atmospheres for decades.

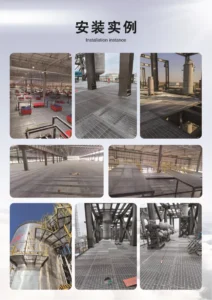

4. Applications & Use Scenarios

• Industrial Platforms:Used in refineries and factories to provide a stable, slip-resistant surface that allows for equipment ventilation.
• Trench Covers:High-thickness grating (e.g., 50mm or 75mm depth) is used for drainage trenches in areas subject to forklift or heavy vehicle traffic.
• Walkways and Catwalks:Standard 30/100 or 40/100 grating provides safe passage around elevated machinery.
• Stair Treads:Grating panels equipped with nosing (checkered plate or abrasive strip) enhance visibility and grip at the leading edge.

5. Industry Applications

• Oil & Gas:Offshore rigs and onshore refineries where drainage and explosion venting are critical.
• Power Plants: Safe access around boilers, turbines, and cooling towers.
• Infrastructure:Pedestrian bridges, ventilation grates for subway systems, and port facilities.
• Water Treatment: Non-slip surfaces for walkways over aeration tanks and filtration systems.

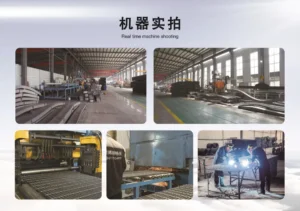

6. Quality Control & Assurance

Our quality management system follows ISO 9001 protocols:

1. Raw Material Verification:MTR (Material Test Reports) for every batch of steel to ensure chemical and physical compliance.
2. Dimensional Inspection:Verification of pitch, bar depth, and panel squareness using calibrated instruments.
3. Weld Integrity:Periodic destructive testing to ensure full fusion at cross-bar intersections.
4. Galvanizing Inspection:Magnetic gauge testing of zinc thickness across multiple points on the panel.

7. Custom Fabrication & Services

We provide specialized services for complex project requirements:

• Cut-to-Size:CNC plasma or saw cutting based on provided CAD drawings.

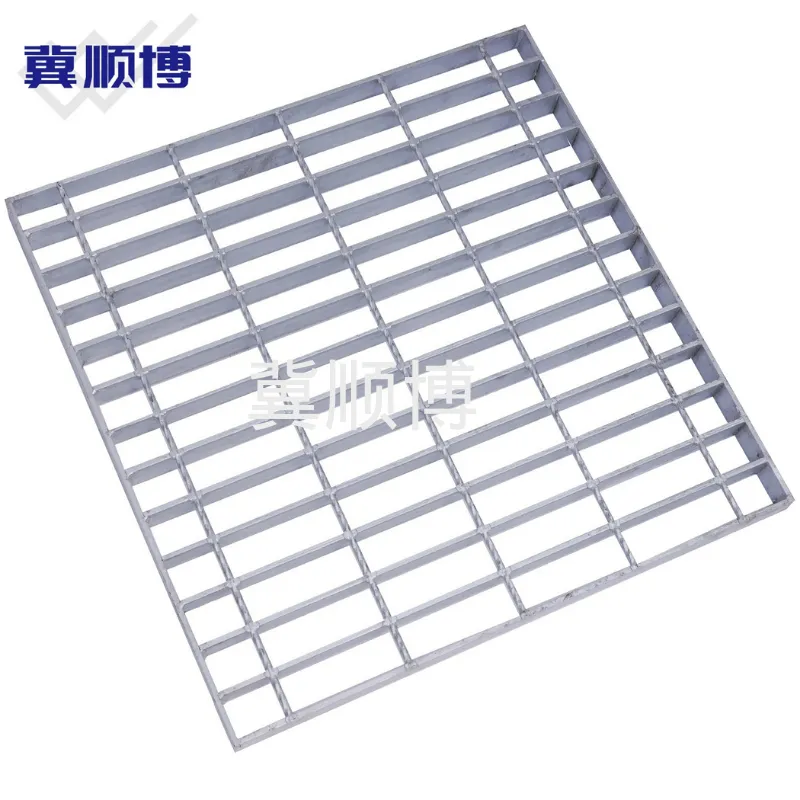

• Banding:Flat bar, channel, or angle banding welded to the panel ends to increase rigidity and provide a finished appearance.
• Serrated Surface:For environments where oil, grease, or moisture are present, we offer serrated bearing bars for enhanced slip resistance.
• Circular & Notched Cuts:Precise trimming for pipe penetrations and structural columns.

8. Frequently Asked Questions (FAQ)

Q: How do I determine the correct bearing bar size for a specific span?

A: The size depends on the required Uniform Design Load (UDL). For a standard 1000mm span and 5 kN/m^2 load, a 25x3mm or 30x3mm bar is often sufficient, but engineering load tables should always be consulted to ensure the deflection does not exceed L/200.

Q: What is the difference between “Banded” and “Unbanded” grating?

A: Unbanded grating has open ends (exposed bearing bars). Banded grating has a flat bar welded to the open ends, which increases the load-bearing capacity of the individual bars and improves safety during handling.

Q: What is the typical lead time for hot-dip galvanized stock panels?

A: Standard stock panels in mill finish are generally available for immediate dispatch. For galvanized orders, the typical lead time is 7 to 14 business days, depending on the volume and galvanizing plant capacity.





Why Choose Our Heavy Duty Welded Steel Grating Backed by decades of manufacturing expertise in high-load grating solutions, we maintain strict quality control, premium material sourcing, and high-strength welding for consistent performance and dimensional accuracy. Our products provide reliable, low-maintenance service life in aggressive environments, fast production turnaround, and dependable global delivery—ensuring safety, efficiency, and value for demanding industrial projects.
